ADATA today launched its LEGEND 970 SSD featuring speeds of up to 10,000MB/s.
ADATA today launched its LEGEND 970 SSD featuring speeds of up to 10,000MB/s.
Press Release

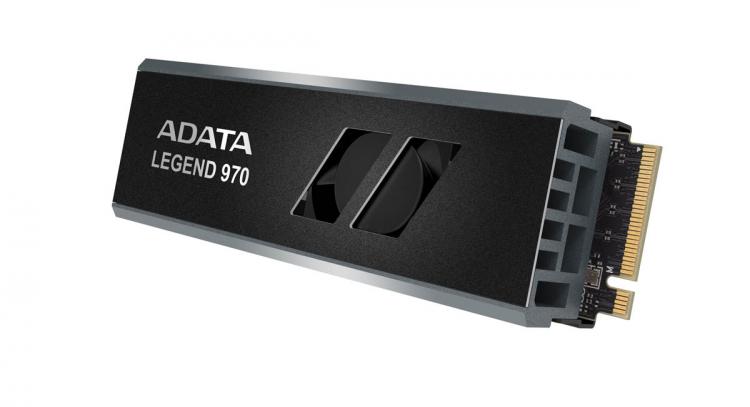

ADATA launches the LEGEND 970 PCIe Gen5 x4 M.2 2280 SSD reaching a maximum sequential read/write speeds of 10,000/10,000 MB/s. The ADATA LEGEND 970 SSD features a double-layer aluminium alloy heatsink with a built-in micro-fan and surface crystallization that forms a patented active air-cooling system. The surface crystallization improves thermal conductivity, significantly reducing temperatures by 10% compared with fanless heatsinks to maintain stable performance during extended high-speed operation.
Key Features
PCIe Gen5 x4 transmission interface
Up to 10,000/10,000MB/s sequential read/write speed
Dual-layer aluminium alloy and fan forms a patented active air cooling system
Compared with a fanless heat sink, temperatures are significantly reduced by 10%
Surface crystallization improves thermal conductivity
Operates long-term without slowing down or crashing
2000GB capacity
Supports the latest Intel and AMD platforms
5-year warranty
Patent SSD Design for Robust Cooling
The ADATA LEGEND 970 adopts a double-layer extruded aluminium heatsink design which features dense air ducts to divert hot and cold air. When heat is conducted upward, the rotation of the built-in micro fan circulates the confluence of hot and cold air and quickly expels exhaust heat from both ends of the extruded aluminium fins. At the same time, the LEGEND 970 increases heat dissipation through the addition of “surface crystallization ” on the aluminium heatsink surface, increasing the overall air contact area and maximizing the heat dissipation efficiency of its air cooling system. This unique “active heat dissipation” design significantly reduces temperatures by 10% compared to fanless heatsinks. More importantly, it can withstand high-temperature stress tests and maintain stable performance even after long-term high-speed operation.
Sustained Ultra-Fast Performance
The ADATA LEGEND 970 adopts a PCIe Gen5 x4 transmission interface, complies with the NVMe 2.0 standard, and has excellent read/write performance of 10,000/10,000MB per second. The ADATA LEGEND 970 is equipped with a SLC cache algorithm and DRAM Cache Buffer which have unique advantages in system loading and data caching. It also boasts random read/write speeds of 1,400K/1,400K IOPS, improving the efficiency of multitasking processes. The ADATA LEGEND 970 is compatible with the latest Intel and AMD platforms and its patented heatsink design ensures stable high-performance long-term operation regardless of the complexity of output, whether 3D animation, game development, or virtual visualization.
High-Quality Components
Strictly selected 232-layer 3D flash memory allows the ADATA LEGEND 970 to be offered in large capacities of up to 2000GB and a variety of data protection and correction technologies are utilized to greatly increase Total Bytes Written (TBW) and durability to meet various high load requirements. In addition, the LEGEND 970 features a Low-Density Parity Check Code (LDPC) error correction mechanism and AES 256-bit high-level encryption technology to ensure the accuracy and security of data transmission, ensuring the safety of intellectual property. Exclusive ADATA SSD Toolbox is free to download for real-time hard drive status.
ADATA did not reveal pricing as of this writing. Learn more about the LEGEND 970 PCIe Gen 5 SSD at the ADATA website.
