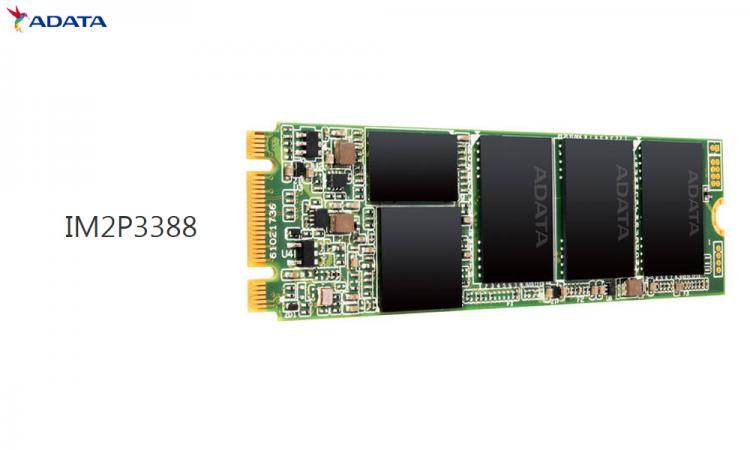

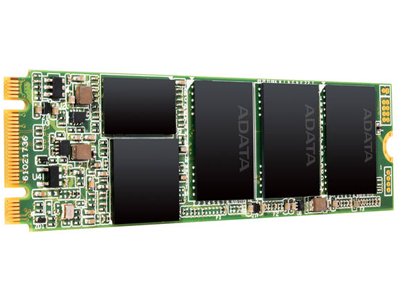

ADATA presents the industrial-grade IM2P3388 PCIe NVMe SSD featuring speedy read and write speeds accompanied with a set of features that make it withstand harsher environments. The ADATA IM2P3388 uses PCIe Gen3x4 in a M.2 2280 form factor. It also uses 3D MLC NAND flash chips with an SMI controller that offers read speeds of up to 2,500 MB/s and write speeds of up to 1,100 MB/s. With its unique features that allow it to operate in a wider range of temperatures, better shock and vibration resistance, the ADATA IM2P3388 PCIe NVMe SSD is ideal for industrial and enterprise use. The SSD is also available in capacities of up to 1TB with S.M.A.R.T. and TRIM support along with the typical set of failsafe and security features.
Benefits of 3D MLC NAND
The ADATA IM2P3388 complies with NVMe 1.2 specifications ensuring fast read and write speeds and low latency. With higher density chips, the IM2P3388 is available in capacities of 128GB, 256GB, 512GB and 1TB offering builders a wide selection of options. It also features advanced SLC and DRAM caching to further boost speeds and for sustained performance.
Built for Industrial Applications
The ADATA IM2P3388 can withstand a temperature range of -40° to 90° Celsius along with a 20G vibration resistance and 1500G/0.5ms shock resistance. It also features advanced EMI and ESD proofing and TCG Opal 2.0 encryption for improved data security and privacy protection.
Specifications
Capacity: 128GB~1TB
Dimensions (L x W x H): 80 x 22 x 3.5mm
Interface: M.2 2280
Operating Voltage: 3.3V
Power Consumption: 4.8W
Shock Resistance: 1500G/0.5ms, Half-Sine Wave
Operating Humidity: 5%-95% RH, non-condensing
Flash Type: 3D MLC
Sequential Read (Max): 2500MB/s
Sequential Write (Max): 1100MB/s
Data Transfer Mode: PCIe Gen3x4
Operating temperature (Industrial): -10°C to 80°C
Operating temperature (Commercial): -40°C to 90°C
Vibration Resistance: 20G (10-2000Hz)
S.M.A.R.T.: Supported
Capacity: 128GB~1TB
Dimensions (L x W x H): 80 x 22 x 3.5mm
Interface: M.2 2280
Operating Voltage: 3.3V
Power Consumption: 4.8W
Shock Resistance: 1500G/0.5ms, Half-Sine Wave
Operating Humidity: 5%-95% RH, non-condensing
Flash Type: 3D MLC
Sequential Read (Max): 2500MB/s
Sequential Write (Max): 1100MB/s
Data Transfer Mode: PCIe Gen3x4
Operating temperature (Industrial): -10°C to 80°C
Operating temperature (Commercial): -40°C to 90°C
Vibration Resistance: 20G (10-2000Hz)
S.M.A.R.T.: Supported
Visit the ADATA website for more information on the ADATA IM2P3388 Industrial-Grade PCIe NVMe M.2 SSD.
