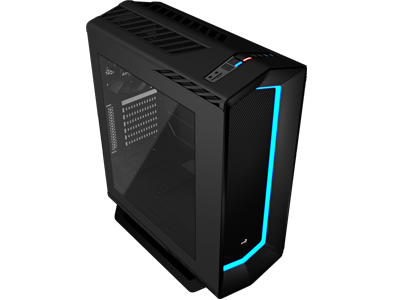

Aerocool outs its latest chassis with LED illumination and optional tempered glass window, the Project 7 – Chassis 1 (P7-C1).
Aerocool outs its latest chassis with LED illumination and optional tempered glass window, the Project 7 – Chassis 1 (P7-C1).

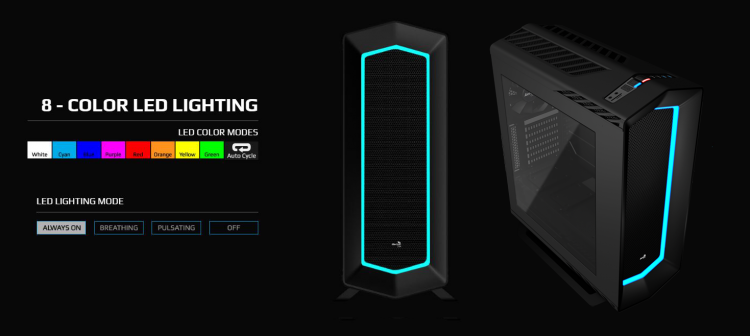

Aerocool outs its latest chassis with LED illumination and optional tempered glass window, the Project 7 – Chassis 1 (P7-C1). The P7-C1 is a mid-tower case with an 8-color LED illumination on the front panel giving it a futuristic look which looks like a portal in the dark. The LED illumination on the Aerocool P7-C1 has three illumination modes – breathing, pulsating and always on.

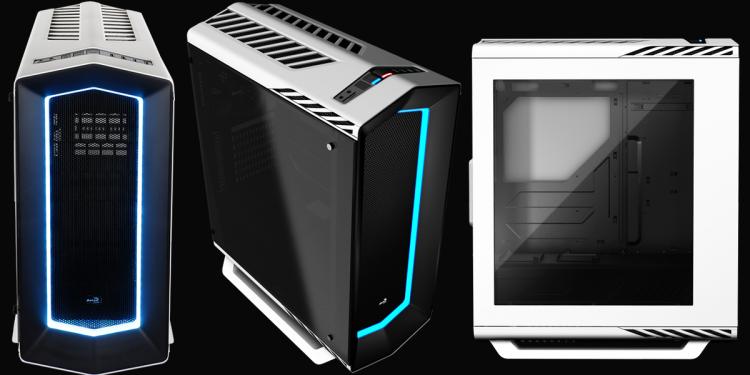

The Aerocool P7-C1 is designed to be universally appealing and technically advanced by incorporating modern features rarely seen in cases. Aside from the 8-color illumination, the P7-C1 also features a unique PWM fan hub and liquid cooling support for radiators as large as 360mm with smart cable management options. The Aerocool P7-C1 has two options when it comes to its side panel. Users can choose either a windowed-side panel or a crafted smoke-color tempered glass. There are two color options for the P7-C1; a black and white variant.
The Aerocool P7-C1 chassis has a very spacious interior supporting graphics cards of up to 375mm in length with chassis fans installed in front, 400mm if without installed fans. Cooling support for high-end all-in-one liquid coolers with radiator mounts for sizes 240mm, 280mm and 360mm. The huge intake area at the front is protected with a removable dust filter. The featured PWM fan hub can control up to 5 fives which can be integrated into the motherboard’s PWM control or the fan control speeds of the case which is either 60% or 100%. Also, the P7-C1 has a built-in card reader for microSD, microSDXC, SD and SDHC flash cards. The front panel also includes two USB 2.0 ports and two USB 3.0 ports along with the LED illumination adjustment buttons.
Specifications
Model Name: P7-C1
Case Type: Mid Tower
Steel Thickness: 0.6mm
Motherboards: ATX / micro ATX / mini-ITX
Case Dimensions: 244.6 x 550 x 446.4mm (W x H x D, overall)
3.5” Drive Bays: 2 (Internal)
2.5” Drive Bays: 4 (Internal)
Expansion Slots: 7
GPU Clearance: 375 mm / 400mm (without front fan)
CPU Clearance: Support Max. Height of 165 mm For CPU
I/O Ports: 2 x USB2.0 + 2 x USB3.0 + HD Audio & Mic.+ SD card reader
Air Cooling System:
– Front : 3 x 120mm or 2 x 140mm (Optional)
– Top: 2 x 120mm (Optional)
– Rear: 1 x 120mm (12025 black fan Included)
Radiator Support:
– Front: 240 / 280 / 360 mm (Optional)
– Top: 240mm (Optional)
– Rear: 120mm (Optional)
Net Weight: 6.8Kg / 8.4Kg (Gross Weight)
Power Supply: ATX PSU (Optional)
EAN Code
– P7-C1 Black: 4713105958294
– P7-C1 White: 4713105958300
Model Name: P7-C1
Case Type: Mid Tower
Steel Thickness: 0.6mm
Motherboards: ATX / micro ATX / mini-ITX
Case Dimensions: 244.6 x 550 x 446.4mm (W x H x D, overall)
3.5” Drive Bays: 2 (Internal)
2.5” Drive Bays: 4 (Internal)
Expansion Slots: 7
GPU Clearance: 375 mm / 400mm (without front fan)
CPU Clearance: Support Max. Height of 165 mm For CPU
I/O Ports: 2 x USB2.0 + 2 x USB3.0 + HD Audio & Mic.+ SD card reader
Air Cooling System:
– Front : 3 x 120mm or 2 x 140mm (Optional)
– Top: 2 x 120mm (Optional)
– Rear: 1 x 120mm (12025 black fan Included)
Radiator Support:
– Front: 240 / 280 / 360 mm (Optional)
– Top: 240mm (Optional)
– Rear: 120mm (Optional)
Net Weight: 6.8Kg / 8.4Kg (Gross Weight)
Power Supply: ATX PSU (Optional)
EAN Code
– P7-C1 Black: 4713105958294
– P7-C1 White: 4713105958300
The Aerocool P7-C1 chassis has a MSRP of $100/£86.61. Visit the Aerocool website for more information on the P7-C1 chassis.
