Alphacool expands its M.2 cooling solutions with the new Eisblock HDX-2 and Eisblock HDX-3 PCie M.2 adapter with cooling blocks.
Alphacool expands its M.2 cooling solutions with the new Eisblock HDX-2 and Eisblock HDX-3 PCie M.2 adapter with cooling blocks.
Alphacool expands its M.2 cooling solutions with the new Eisblock HDX-2 and Eisblock HDX-3. M.2 solid state drives are known to produce a significant amount of heat when running heavy loads which can lead to performance throttling. To avoid such issues, additional cooling solutions might be needed and Alphacool just added two. Watch the product videos below regarding the new Alphacool M.2 PCIe adapter and cooling solutions.
Vendor demonstration video:
Product Introduction Video:
Product Introduction Video:

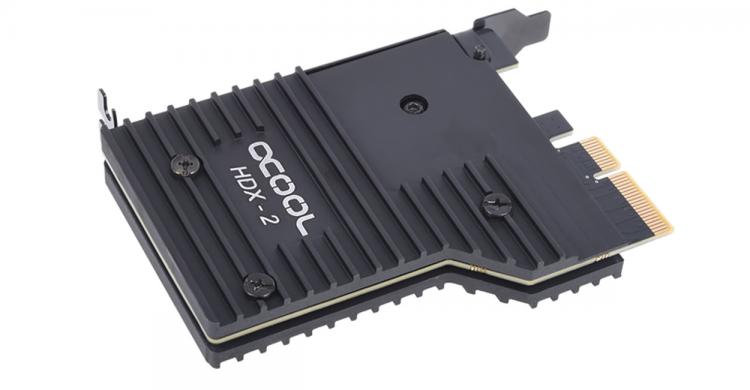

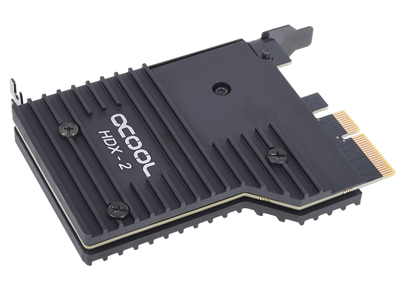

Alphacool Eisblock HDX-2
The Eisblock HDX-2 is a PCIe M.2 adapter card with a passive cooling block. The enormous cooling surface offers better cooling for the M.2 drive. The PCIe adapter also ensures performance is kept to the maximum offering a maximum bandwidth of 3900 MB/s.
Technical Specifications
Dimension (LxWxH): 100 x 81.5 x 20mm
Material: Aluminium
PCIe form factor: 4x PCIe
Compatibility: M.2 2280 PCIe SSDs
Max. Bandwidth PCIe Card: 3938 MB/s
Dimension (LxWxH): 100 x 81.5 x 20mm
Material: Aluminium
PCIe form factor: 4x PCIe
Compatibility: M.2 2280 PCIe SSDs
Max. Bandwidth PCIe Card: 3938 MB/s

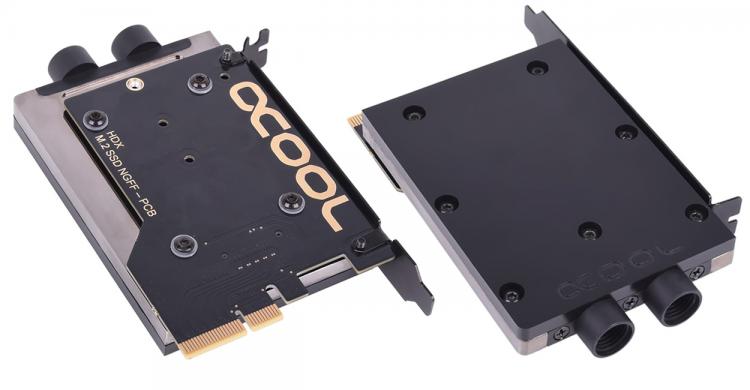

Alphacool Eisblock HDX-3
The Eisblock HDX-3 is the ultimate cooling solution for high-performance PCIe NVMe SSDs. It is also a PCIe M.2 adapter with a maximum bandwidth of 3900 MB/s along with a full liquid cooling water block.
Technical Specifications
Dimension (LxWxH): 120 x 81,5 x 20mm
Material: Copper, Acetal
Threads: 2x GI/4″
PCIe form factor: 4x PCIe
Compatibility: M.2 2280 PCIe SSDs
Max. Bandwidth PCIe Card: 3938 MB/s
Dimension (LxWxH): 120 x 81,5 x 20mm
Material: Copper, Acetal
Threads: 2x GI/4″
PCIe form factor: 4x PCIe
Compatibility: M.2 2280 PCIe SSDs
Max. Bandwidth PCIe Card: 3938 MB/s
Pricing and Availability
The Alphacool Eisblock HDX-2 and HDX-3 are now available at the Alphacool webstore and Aquatuning webtores. The Alphacool Eisblock HDX-3 has an MSRP of €79.99, while the Eisblock HDX-2 has an MSRP of €39.95.
Product Pages:
Alphacool Eisblock HDX-3 PCIe M.2 Adapter with Liquid Cooling Block
Alphacool Eisblock HDX-2 PCIe M.2 Adapter with Passive Cooling Block
