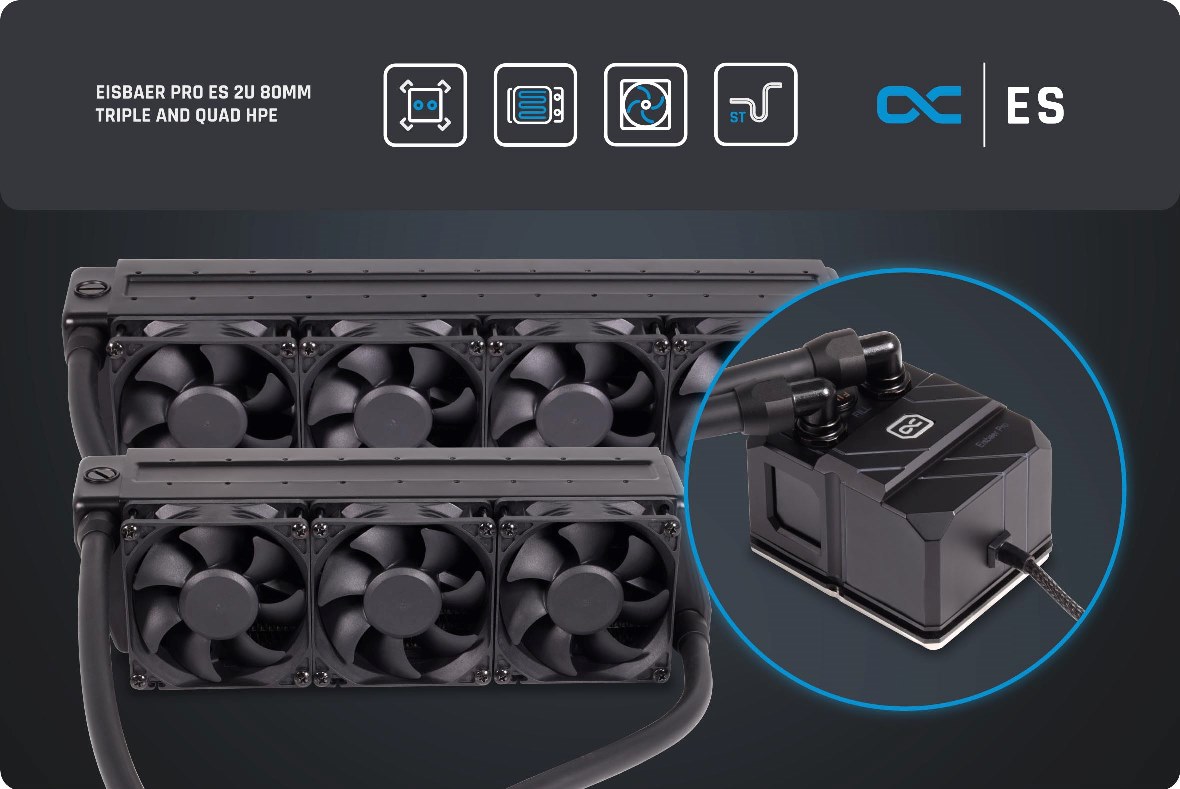

Alphacool introduces the Eisbaer Pro ES 2U AIO, available in 80mm Triple HPE and 80mm Quad HPE variants.
Alphacool introduces the Eisbaer Pro ES 2U AIO, available in 80mm Triple HPE and 80mm Quad HPE variants.
Press Release
The Eisbaer Pro ES 2U AIO from Alphacool is a true multi-talent that is second to none! This water-cooling AIO offers everything for enterprise use. It is easy to install and comes with the same performance of a pre-assembled, pre-filled custom loop. The AIO is available in 80mm Triple HPE and 80mm Quad HPE variants.

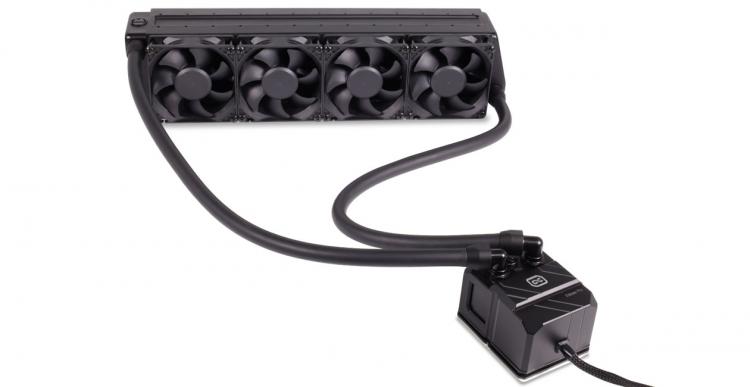

Alphacool Eisbaer Pro ES 2U 80mm Quad HPE

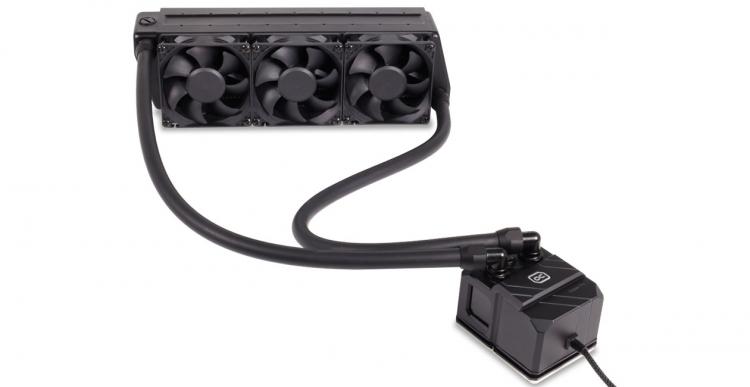

Alphacool Eisbaer Pro ES 2U 80mm Triple HPE
The NexXxos all-copper radiator is designed specifically for server racks and workstations and is equipped with high-throughput 80mm ES fans. Thanks to its low height of only 80mm, the radiator fits perfectly into a 2U server rack. The extremely thin paintwork of the copper cooling fins and the optimal fin spacing of 10FPI provide plenty of cooling surface while still allowing the flow of air in the best possible way. The flaps on the cooling fins ensure controlled air turbulence. This allows the air flowing through to absorb and remove heat from the fins much better.
The thin, nickel-plated cooler base covers the entire surface of each processor, allowing heat to reach the water and dissipate as quickly as possible. This ensures that all hotspots of a CPU are directly covered with water and optimally cooled. The Eisbaer Pro ES cooler uses the very compact and small, but high-performance DC-LT 2 pump. It offers enough power to integrate even more components like GPU water coolers or radiators into the water loop. The hose connections are from the normal DIY segment and allow for easy replacement by using G1/4″ threads. The high-quality TPV hoses do not use any plasticizers. They are shape-retaining even at extremely high temperatures.
Technical Specifications
Radiator 80mm Triple HPE:
– Dimensions (LxWxH): 284 x 80 x 60 mm
– Material: copper
– Connections: 2x G1/4
Radiator 80mm Quad HPE:
– Dimensions (LxWxH): 364.5 x 80 x 60 mm
– Material: copper
– Connections: 2x G1/4″
Cooler & Pump:
– Dimensions (LxWxH): 64 x 79 x 54.3 mm
– Material: Nickel-plated copper (cooler bottom), acrylic (case)
– Connections: 2x G1/4″ (+ 1x fillport G1/4″)
– Pump type: DC-LT2
– Pump speed: 2600 rpm
Fan:
– Speed: 800-6000 rpm
– Air flow rate: 130,93 m³/h
Compatibility:
Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
AMD: TR4 / sTRX4 / SP3 / sWRX8 / AM4 / AM5
Radiator 80mm Triple HPE:
– Dimensions (LxWxH): 284 x 80 x 60 mm
– Material: copper
– Connections: 2x G1/4
Radiator 80mm Quad HPE:
– Dimensions (LxWxH): 364.5 x 80 x 60 mm
– Material: copper
– Connections: 2x G1/4″
Cooler & Pump:
– Dimensions (LxWxH): 64 x 79 x 54.3 mm
– Material: Nickel-plated copper (cooler bottom), acrylic (case)
– Connections: 2x G1/4″ (+ 1x fillport G1/4″)
– Pump type: DC-LT2
– Pump speed: 2600 rpm
Fan:
– Speed: 800-6000 rpm
– Air flow rate: 130,93 m³/h
Compatibility:
Intel: 1700 / 2011 / 2011-3 / 2066 / 3647 Narrow & Square / LGA 4189
AMD: TR4 / sTRX4 / SP3 / sWRX8 / AM4 / AM5
Pricing and Availability
The Eisbaer Pro ES 2U 80mm Quad HPE + 4x ES PWM fans and Eisbaer Pro ES 2U 80mm Triple HPE + 3x ES PWM fans are available on Alphacool.com.
Alphacool Eisbaer Pro ES 2U 80mm Triple HPE + 3x ES PWM fans: €219.98 (incl. VAT plus shipping costs)
Alphacool Eisbaer Pro ES 2U 80mm Quad HPE + 4x ES PWM fans: €249.98 (incl. VAT plus shipping costs)
