Press Release

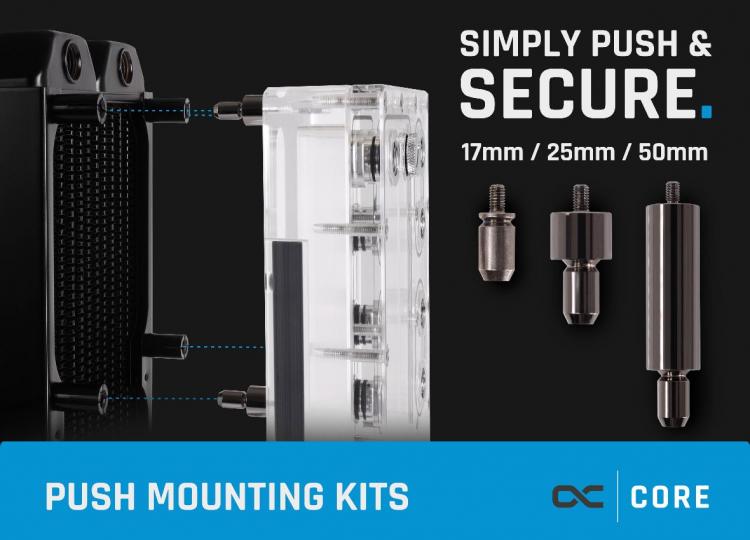

The Core Push Mounting Kit from Alphacool simplifies the installation of a Core Distro Plate. The kits are available in three mounting heights, 17mm, 25mm, and 50mm, to provide a gap between the radiator and the distribution plate.

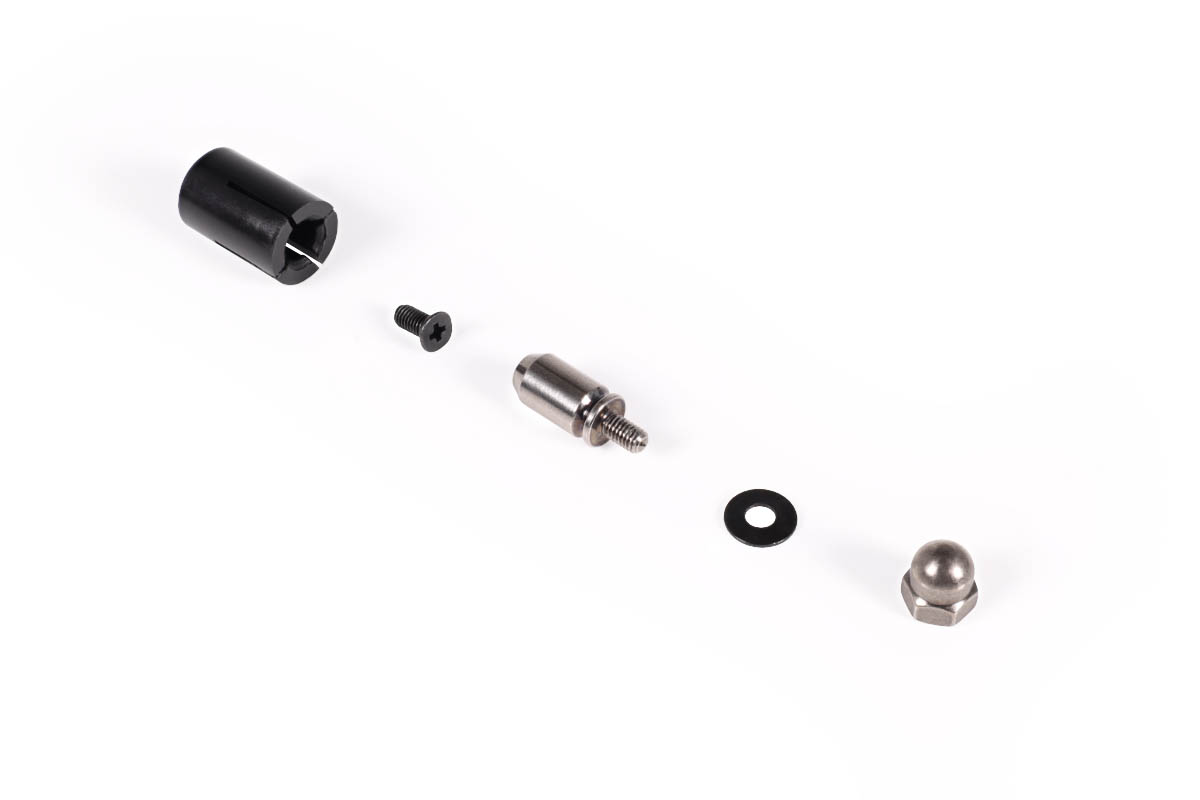

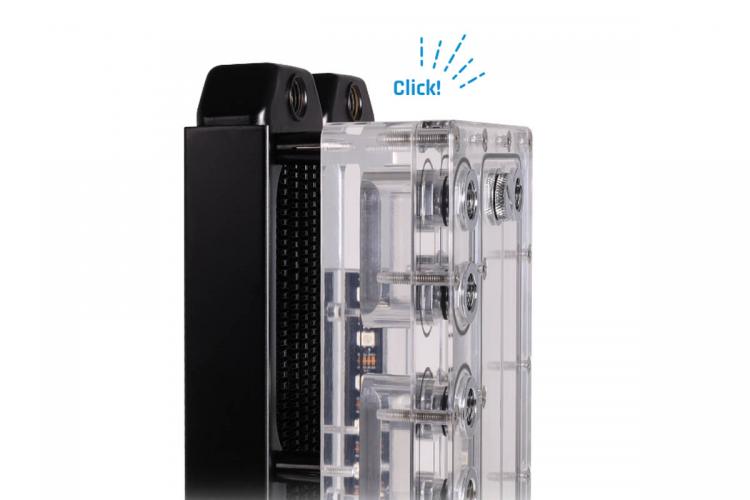

The Alphacool Push Mounting Kit allows easy and secure mounting of a Core Distro Plate on a radiator or in a PC case. The metal pins are screwed to the Distro Plate and the matching sockets are attached to the radiator or PC case. In the next, tool-free mounting step, the Distro Plate is pushed onto the pins. Thus, the mounting system offers a very solid and stable mount of the Distro Plate and at the same time eases the disassembly for maintenance or expansion projects considerably.
Key Features
Alphacool Core Push Mounting 17mm M3/M4/UNC 6-32 Set 4x:
– Total height: 17mm
– Diameter metal pins: 11mm
– Weight per metal pin: 4g
– Color: black/silver
Alphacool Core Push Mounting 25mm M3/M4/UNC 6-32 Set 4x:
– Total height: 25mm
– Diameter metal pins: 11mm
– Weight per metal pin: 10g
– Color: black/silver
Alphacool Core Push Mounting 50mm M3/M4/UNC 6-32 Set 4x:
– Total height: 50mm
– Diameter metal pins: 11mm
– Weight per metal pin: 30g
– Color: black/silver
Compatibility:
– Alphacool Core Distro Plate
– Alphacool Rise Flat Reservoir
Pricing and Availability
The Core Push Mounting Kit is now available in 17mm, 25mm and 50mm versions in the Alphacool Online Shop.
Alphacool Core Push Mounting 17mm: €15.98
Alphacool Core Push Mounting 25mm: €17.98
Alphacool Core Push Mounting 50mm: €19.98
