Alphacool new Core Distro Plate 280, Core Distro Plate 420 and Core Distro Plate 480 for high-end water cooling projects.
Press Release

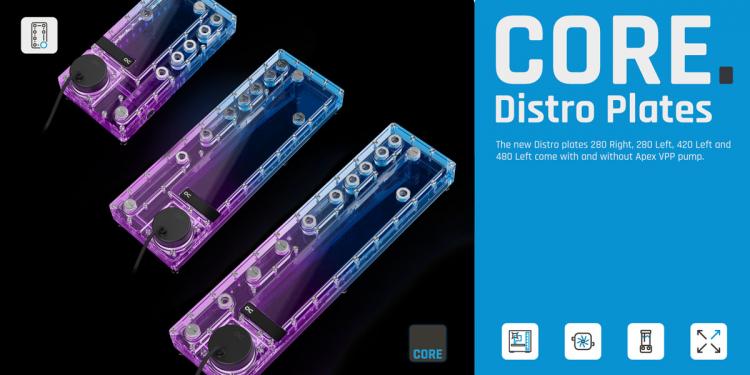

Alphacool new Core Distro Plate 280, Core Distro Plate 420 and Core Distro Plate 480 for high-end water cooling projects. With its Core design, it is not only an absolute eye-catcher but also a functional masterpiece that facilitates the construction and planning of complex water circuits and offers uncomplicated installation.
The Core Distro Plate 280 is available in two versions – with a pump connection on either the left or right side. This offers maximum flexibility for different casing configurations. The Core Distro Plate 420 and Core Distro Plate 480 come with a pump connection on the left-hand side and are ideal for larger builds.
All three models are available with and without an integrated Alphacool VPP Apex pump.
With these new distro plates, Alphacool is expanding its range of distro plates and now also offers variants that are perfect for systems with 140 mm fan slots as well as large systems. The clear acrylic glass enables impressive lighting effects in combination with ARGB LEDs and thus sets the perfect stage for any system.
Technical data
Core Distro Plate 280 Right VPP/D5:
Dimensions: (L x W x H) 280 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Right with VPP D5 Apex Pump:
Dimensions: (L x W x H) 280 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Left VPP/D5:
Dimensions: (L x W x H) 280 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 280 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 420 Left VPP/D5:
Dimensions: (L x W x H) 420 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 10x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 420 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 420 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 10x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 480 Left VPP/D5:
Dimensions: (L x W x H) 480 x 125 x 42 mm
Pump compatibility: D5/VPP
Threads: 12x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 480 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 480 x 125 x 61 mm
Pump compatibility: D5/VPP
Threads: 12x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 280 Right VPP/D5:
Dimensions: (L x W x H) 280 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Right with VPP D5 Apex Pump:
Dimensions: (L x W x H) 280 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Left VPP/D5:
Dimensions: (L x W x H) 280 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 280 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 280 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 8x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 12
Core Distro Plate 420 Left VPP/D5:
Dimensions: (L x W x H) 420 x 145 x 42 mm
Pump compatibility: D5/VPP
Threads: 10x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 420 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 420 x 145 x 61 mm
Pump compatibility: D5/VPP
Threads: 10x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 480 Left VPP/D5:
Dimensions: (L x W x H) 480 x 125 x 42 mm
Pump compatibility: D5/VPP
Threads: 12x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Core Distro Plate 480 Left with VPP D5 Apex Pump:
Dimensions: (L x W x H) 480 x 125 x 61 mm
Pump compatibility: D5/VPP
Threads: 12x G1/4″ inner thread / 1x drain port
Quantity digital aRGB LEDs: 17
Check out the Alphacool Core Distro Plates at the Alphacool Webstore.
