ASUS officially announces the Dual GeForce RTX 4060 Ti SSD graphics card, the first graphics card in the world to include an M.2 NVMe drive slot, optimized for enhanced thermal performance.
ASUS officially announces the Dual GeForce RTX 4060 Ti SSD graphics card, the first graphics card in the world to include an M.2 NVMe drive slot, optimized for enhanced thermal performance.

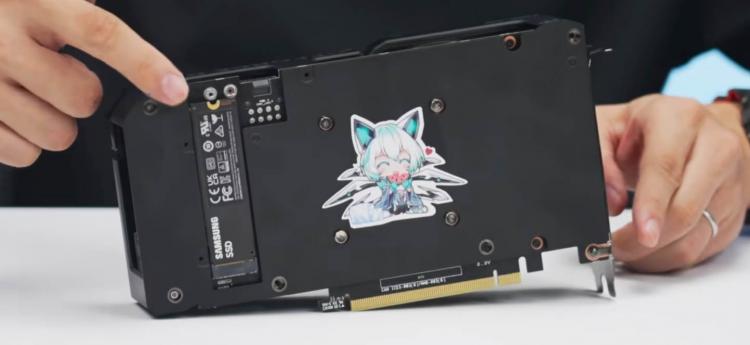

ASUS officially announces the ASUS Dual GeForce RTX 4060 Ti SSD graphics card, the first graphics card in the world to include an M.2 NVMe drive slot. The first prototype was first seen back in August and presented by Tony Yu, ASUS’ Product Manager in China, on his Bilibili channel. The prototype ASUS DUAL GeForce RTX 4060 Ti SSD uses the available PCIe X8 lanes of the PCIe slot since the RTX 4060 Ti GPU only uses a PCIe X8 bus interface.

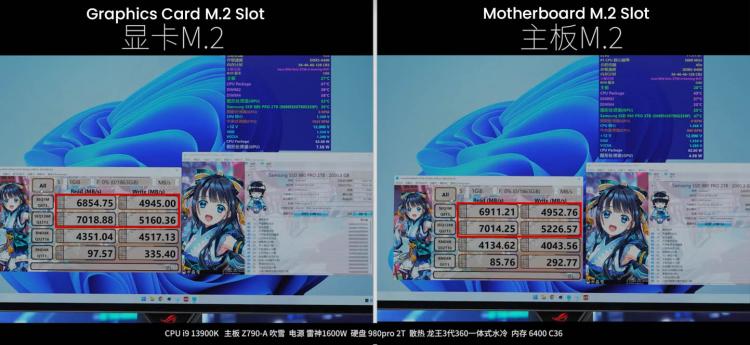

In the demonstration of the prototype, the SSD installed on the ASUS Dual GeForce RTX 4060 Ti SSD graphics card shows similar performance compared to having it installed directly on the motherboard.
Revealed in the press release today, if the ASUS Dual GeForce RTX 4060 Ti SSD graphics card is installed on a PCIe 5.0 X16 slot, the M.2 slot on the graphics card will also operate at PCIe 5.0 speeds. The M.2 slot on the ASUS Dual GeForce RTX 4060 Ti SSD features the Q-Latch, a tool-free SSD installation mechanism, and pre-mounted thermal pad.
Press Release

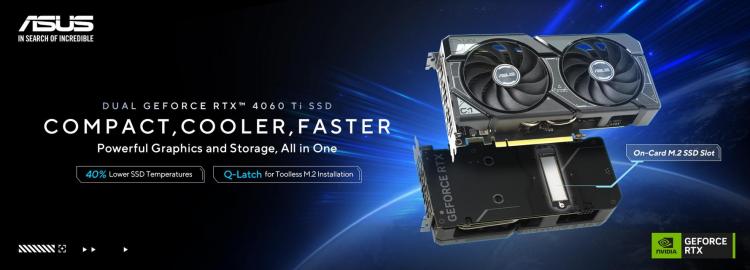

ASUS today announced the Dual GeForce RTX 4060 Ti SSD, the world’s first graphics card equipped with an M.2 slot, allowing for a seamless cooling upgrade for high-performance NVMe drives.
Reimagined M.2 storage
At its core, this card has all of the same amazing features as the ASUS Dual GeForce RTX 4060 Ti 8GB. Third-generation RT Cores and fourth-generation Tensor Cores, now featuring DLSS 3.5 and frame generation, drive incredibly immersive real-time ray tracing experiences, enabling this graphics card to push the limits of how good modern games can look. Housed in a sleek 2.5-slot design that only requires a single 8-pin PCIe® power connector, the Dual GeForce RTX 4060 Ti SSD can easily fit into almost any existing build.
The real star of the show, though, is hiding in a special cutout on the rear of the card. With support for M.2 2280-sized NVMe drives, the Dual GeForce RTX 4060 Ti SSD is the first-ever consumer graphics card to offer an onboard SSD slot. When an M.2 drive is mounted to the Dual GeForce RTX 4060 Ti SSD, it may replace the CPU’s own M.2 slot on the motherboard. This comes with a few compelling reasons to make the switch to a GPU-mounted M.2 solution.
Compact cooling performance
While the RTX 4060 Ti is a PCIe 4.0-compliant GPU, if both the motherboard and the NVMe drive in a user’s system support PCIe 5.0, the drive will operate at full PCIe 5.0 speed. Because of this, ASUS recommends installing the Dual GeForce RTX 4060 Ti SSD in the top PCIe slot on the motherboard, ensuring direct communication with the CPU. With no graphics performance hit in game and no read/write penalties to storage, this card is a straightforward solution for those who need high-speed, long-term storage in their gaming machines.
Why not just install this drive on the motherboard itself? The Dual GeForce RTX 4060 Ti SSD is equipped with dual Axial-tech fans that keep the card running cool when in game, but these powerful fans also reduce the operating temperatures of the M.2 drive, unlike traditional motherboard M.2 slots. The Dual GeForce RTX 4060 Ti SSD comes with a thermal pad pre-mounted in the M.2 slot, allowing installed M.2 drives to tap directly into the graphics card heatsink and its massive cooling potential. ASUS testing revealed up to 40% lower temperatures on the drives when attached to the Dual GeForce RTX 4060 Ti SSD, granting longer sustained read/write performance than standard motherboard-mounted M.2 slots and ensuring long-term stability well into the future.
Reimagined M.2 storage
At its core, this card has all of the same amazing features as the ASUS Dual GeForce RTX 4060 Ti 8GB. Third-generation RT Cores and fourth-generation Tensor Cores, now featuring DLSS 3.5 and frame generation, drive incredibly immersive real-time ray tracing experiences, enabling this graphics card to push the limits of how good modern games can look. Housed in a sleek 2.5-slot design that only requires a single 8-pin PCIe® power connector, the Dual GeForce RTX 4060 Ti SSD can easily fit into almost any existing build.
The real star of the show, though, is hiding in a special cutout on the rear of the card. With support for M.2 2280-sized NVMe drives, the Dual GeForce RTX 4060 Ti SSD is the first-ever consumer graphics card to offer an onboard SSD slot. When an M.2 drive is mounted to the Dual GeForce RTX 4060 Ti SSD, it may replace the CPU’s own M.2 slot on the motherboard. This comes with a few compelling reasons to make the switch to a GPU-mounted M.2 solution.
Compact cooling performance
While the RTX 4060 Ti is a PCIe 4.0-compliant GPU, if both the motherboard and the NVMe drive in a user’s system support PCIe 5.0, the drive will operate at full PCIe 5.0 speed. Because of this, ASUS recommends installing the Dual GeForce RTX 4060 Ti SSD in the top PCIe slot on the motherboard, ensuring direct communication with the CPU. With no graphics performance hit in game and no read/write penalties to storage, this card is a straightforward solution for those who need high-speed, long-term storage in their gaming machines.
Why not just install this drive on the motherboard itself? The Dual GeForce RTX 4060 Ti SSD is equipped with dual Axial-tech fans that keep the card running cool when in game, but these powerful fans also reduce the operating temperatures of the M.2 drive, unlike traditional motherboard M.2 slots. The Dual GeForce RTX 4060 Ti SSD comes with a thermal pad pre-mounted in the M.2 slot, allowing installed M.2 drives to tap directly into the graphics card heatsink and its massive cooling potential. ASUS testing revealed up to 40% lower temperatures on the drives when attached to the Dual GeForce RTX 4060 Ti SSD, granting longer sustained read/write performance than standard motherboard-mounted M.2 slots and ensuring long-term stability well into the future.
ASUS did not reveal pricing and release date as of this writing.
