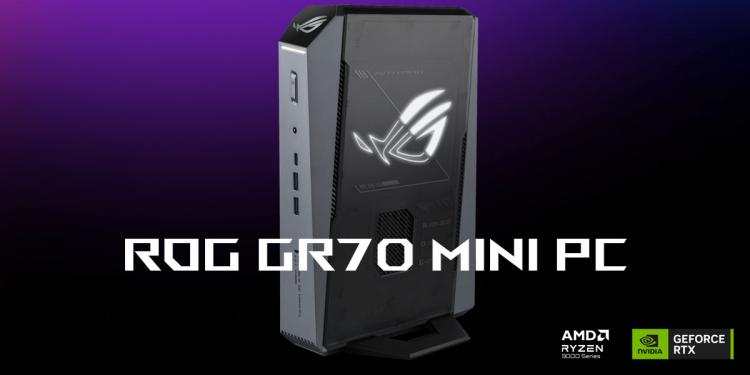

ASUS ROG today announced the ROG GR70, the first ROG gaming mini PC to feature the AMD Ryzen 9 CPU for desktop-class performance in a compact footprint.
ASUS ROG today announced the ROG GR70, the first ROG gaming mini PC to feature the AMD Ryzen 9 CPU for desktop-class performance in a compact footprint.
Press Release
ASUS Republic of Gamers today announced the ROG GR70, the first ROG gaming mini PC to feature the AMD Ryzen 9 CPU, delivering desktop-class performance in a compact footprint. The GR70 Mini PC is equipped with NVIDIA GeForce RTX 5070 or 5060 Laptop GPUs for exceptional graphics performance and an advanced triple-fan cooling system for low temperatures and quiet operation. Built-in WiFi 7 and Bluetooth 5.4 ensure ultra-fast, stable connectivity for seamless gaming and streaming experiences.
Built for peak performance
Powered by the AMD Ryzen 9 9955HX3D CPU built on Zen 5 architecture, the ROG GR70 offers 16 cores and 32 threads to handle intensive gaming and multitasking. The 2nd generation AMD 3D V-Cache technology boosts clock speeds and efficiency, providing smoother gameplay and enhanced detail even at lower resolutions.
Next-generation GeForce RTX graphics enhanced by AI
Featuring NVIDIA’s latest Blackwell architecture, the RTX 50 Series GPUs offer superior ray tracing, massive AI horsepower, and DLSS 4 with Multi Frame Generation to boost frame rates. Together with the Ryzen processor, the ROG GR70 Mini PC delivers top-tier gaming performance in a sub-three-liter form factor.
Cutting-edge connectivity
WiFi 7 with Multi-Link Operation ensures faster, more stable connections for large downloads and multiplayer gaming. Eight USB ports support up to five 4K displays, external drives, and gaming peripherals, offering flexibility for any setup.
Optimized cooling with minimal noise
The compact chassis features ROG QuietFlow cooling with a triple-fan system that maintains excellent thermal performance while keeping noise below 4.5dB(A). This ensures consistent, quiet operation even under heavy load.
Tuned for victory
ROG Armory Crate provides system monitoring, fan control, and easy access to driver updates. With automatic and manual tuning options through the ROG BIOS, gamers can overclock, optimize performance, and enable preset profiles for popular titles.
DIY-friendly design
The ROG GR70 Mini PC offers a toolless design for easy upgrades. Users can access components via a thumbscrew and expand up to 96GB of memory or upgrade M.2 storage with the Q-Latch system.
With its sleek white-silver lightbar and angular aesthetic, the ROG GR70 combines bold design with uncompromising performance, making it the ultimate centerpiece for compact gaming setups.
ASUS ROG GR70 Gaming Mini PC — Specifications
Processor
• AMD Ryzen 9 9955HX3D, target cTDP 55W
• AMD Ryzen 9 9955HX, target cTDP 55W
• AMD Ryzen 9 8940HX, target cTDP 55W
Supported Operating Systems
• Windows 11 64-bit
• Windows 11 Pro 64-bit
Chipset
• Integrated
Integrated Graphics
• AMD Radeon 610M Graphics
Discrete Graphics Options
• NVIDIA GeForce RTX 5070 Laptop GPU (9955HX3D or 9955HX models)
• NVIDIA GeForce RTX 5060 Laptop GPU (8940HX model)
Memory
• Maximum capacity: 96GB DDR5 5600 SO-DIMM
• Available configurations:
8GB DDR5 5600 SO-DIMM × 2
16GB DDR5 5600 SO-DIMM × 1 / × 2
32GB DDR5 5600 SO-DIMM × 1 / × 2
Storage
• Supports:
1–2TB M.2 2280 NVMe PCIe 5.0 x4 SSD
1–2TB M.2 2280 NVMe PCIe 4.0 x4 SSD
• Available configurations:
1TB / 2TB M.2 2280 NVMe PCIe 5.0 SSD
1TB / 2TB M.2 2280 NVMe PCIe 4.0 SSD
Wireless Connectivity
• WiFi 7
• Bluetooth 5.4 (2×2)
LAN
• 1 × Realtek RTL8125BG, 2.5G LAN (10/100/1000/2500 Mbps)
TPM
• Firmware TPM / dTPM (available by request)
Front I/O Ports
• 1 × USB-C 3.2 Gen 2 (10Gbps)
• 2 × USB-A 3.2 Gen 2 (10Gbps)
• 1 × Audio jack (Line out / Mic in / Headphone / Speaker out / Headset)
• 1 × Power button
• 1 × Light bar
Rear I/O Ports
• 1 × USB 4 Type-C (DisplayPort 1.4, 40Gbps, 5V/3A output)
• 4 × USB-A 3.2 Gen 2 (10Gbps)
• 2 × HDMI 2.1 (FRL6 / HDMI CEC)
• 2 × DisplayPort 2.1
• 1 × 2.5G RJ45 LAN
• 1 × DC in
• 1 × Kensington lock
Power Supply
• 330W adapter
Design
• Toolless design for quick access to internal components
Dimensions
• 282.4 × 187.7 × 56.5 mm (base: 146 mm)
Weight
• 2.73 kg
Processor
• AMD Ryzen 9 9955HX3D, target cTDP 55W
• AMD Ryzen 9 9955HX, target cTDP 55W
• AMD Ryzen 9 8940HX, target cTDP 55W
Supported Operating Systems
• Windows 11 64-bit
• Windows 11 Pro 64-bit
Chipset
• Integrated
Integrated Graphics
• AMD Radeon 610M Graphics
Discrete Graphics Options
• NVIDIA GeForce RTX 5070 Laptop GPU (9955HX3D or 9955HX models)
• NVIDIA GeForce RTX 5060 Laptop GPU (8940HX model)
Memory
• Maximum capacity: 96GB DDR5 5600 SO-DIMM
• Available configurations:
8GB DDR5 5600 SO-DIMM × 2
16GB DDR5 5600 SO-DIMM × 1 / × 2
32GB DDR5 5600 SO-DIMM × 1 / × 2
Storage
• Supports:
1–2TB M.2 2280 NVMe PCIe 5.0 x4 SSD
1–2TB M.2 2280 NVMe PCIe 4.0 x4 SSD
• Available configurations:
1TB / 2TB M.2 2280 NVMe PCIe 5.0 SSD
1TB / 2TB M.2 2280 NVMe PCIe 4.0 SSD
Wireless Connectivity
• WiFi 7
• Bluetooth 5.4 (2×2)
LAN
• 1 × Realtek RTL8125BG, 2.5G LAN (10/100/1000/2500 Mbps)
TPM
• Firmware TPM / dTPM (available by request)
Front I/O Ports
• 1 × USB-C 3.2 Gen 2 (10Gbps)
• 2 × USB-A 3.2 Gen 2 (10Gbps)
• 1 × Audio jack (Line out / Mic in / Headphone / Speaker out / Headset)
• 1 × Power button
• 1 × Light bar
Rear I/O Ports
• 1 × USB 4 Type-C (DisplayPort 1.4, 40Gbps, 5V/3A output)
• 4 × USB-A 3.2 Gen 2 (10Gbps)
• 2 × HDMI 2.1 (FRL6 / HDMI CEC)
• 2 × DisplayPort 2.1
• 1 × 2.5G RJ45 LAN
• 1 × DC in
• 1 × Kensington lock
Power Supply
• 330W adapter
Design
• Toolless design for quick access to internal components
Dimensions
• 282.4 × 187.7 × 56.5 mm (base: 146 mm)
Weight
• 2.73 kg
Learn more about the ASUS ROG GR70 Mini PC.
