BIOSTAR introduces the RACING P1 compact mini PC with customizable RGB LED lighting.
BIOSTAR introduces the RACING P1 compact mini PC with customizable RGB LED lighting.

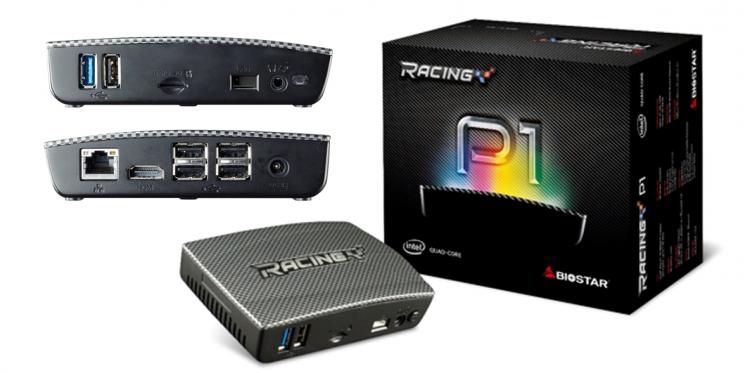

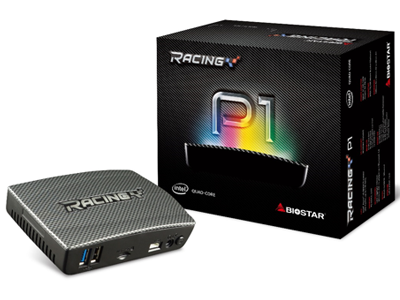

BIOSTAR introduces the RACING P1 compact mini PC with customizable RGB LED lighting. The BIOSTAR RACING P1 is a compact pocket-sized mini PC that’s only 0.29L in volume and 255 grams in weight. Part of BIOSTAR’s RACING Series, the RACING P1 also feature the signature VIVID LED DJ RGB lighting customization. The RACING P1 is an ideal portable light-gaming machine you can tag along with you anywhere.
The BIOSTAR RACING P1 mini-PC packs a powerful yet efficient Intel Z8350 quad-core processor with a maximum TDP of only 2W with boost clocks of up to 1.92 Ghz. The RACING P1 has a fanless cooling system creating a silent mini-PC. For aesthetics, the RACING P1 has a carbon-fiber styling that resembles a sports car. The 5050 LED strips on the mini-PC is controlled by the VIVID LED DJ software.
The BIOSTAR RACING P1 can be mounted in a standard VESA mount found in monitors and other displays making it easy to be installed behind your display for a clutter-free and spacious working area. The RACING P1 has a 64GB internal storage enough for the operating system and essential programs. For connectivity and other storage options, the RACING P1 has a total of 6 USB ports; 5 x USB 2.0 and 1 x USB 3.0 port, along with a microSD card reader.
Specifications
Processor: Intel® Atom™ Processor x5-Z8350(2M Cache ,up to 1.92 GHz)
Graphics: Integrated Intel® HD Graphics
– Support DX12
– Support HDCP
Memory: 4GB DDR3L-1600
LAN: Realtek RTL8111H – 10/100/1000 controller
WLAN / Bluetooth: AMPAK AP6255 controller
– Support IEEE 802.11a/b/g/n/ac + Bluetooth 4.0
Audio: Realtek ALC5645 2-Channel Audio
– Support 1 x Port with Line out / MIC in
Storage: 64GB eMMC Flash
Front Panel:
– 1 x USB 3.0 port
– 1 x USB 2.0 port
– 1 x Micro SD Card Reader
– 1 x Power on button
– 1 x Line-out / Mic-in
– 1 x 5V 5050 LED Header
Rear Panel:
– 1 x DC jack(5V DC-in)
– 4 x USB 2.0 port
– 1 x RJ-45 gigabit LAN port
– 1 x HDMI connector
OS Support: Support Windows 10(x64)
Bundle Software:
– Racing GT Utility
– BullGuard
– BIO-Remote2
Accessories:
– 1 x DVD Driver
– 1 x Quick Guide
Power Supply: Input: AC 100-240V / Output: DC 5V / 4A
Mounting: Foot stand / VESA 75/100 mount bracket(optional)
Dimension: 129.4mm (L) x 83mm (W) x 27mm (H)
Weight: 255 g
Processor: Intel® Atom™ Processor x5-Z8350(2M Cache ,up to 1.92 GHz)
Graphics: Integrated Intel® HD Graphics
– Support DX12
– Support HDCP
Memory: 4GB DDR3L-1600
LAN: Realtek RTL8111H – 10/100/1000 controller
WLAN / Bluetooth: AMPAK AP6255 controller
– Support IEEE 802.11a/b/g/n/ac + Bluetooth 4.0
Audio: Realtek ALC5645 2-Channel Audio
– Support 1 x Port with Line out / MIC in
Storage: 64GB eMMC Flash
Front Panel:
– 1 x USB 3.0 port
– 1 x USB 2.0 port
– 1 x Micro SD Card Reader
– 1 x Power on button
– 1 x Line-out / Mic-in
– 1 x 5V 5050 LED Header
Rear Panel:
– 1 x DC jack(5V DC-in)
– 4 x USB 2.0 port
– 1 x RJ-45 gigabit LAN port
– 1 x HDMI connector
OS Support: Support Windows 10(x64)
Bundle Software:
– Racing GT Utility
– BullGuard
– BIO-Remote2
Accessories:
– 1 x DVD Driver
– 1 x Quick Guide
Power Supply: Input: AC 100-240V / Output: DC 5V / 4A
Mounting: Foot stand / VESA 75/100 mount bracket(optional)
Dimension: 129.4mm (L) x 83mm (W) x 27mm (H)
Weight: 255 g
Visit the BIOSTAR website for more details on the RACING P1 Mini PC.
