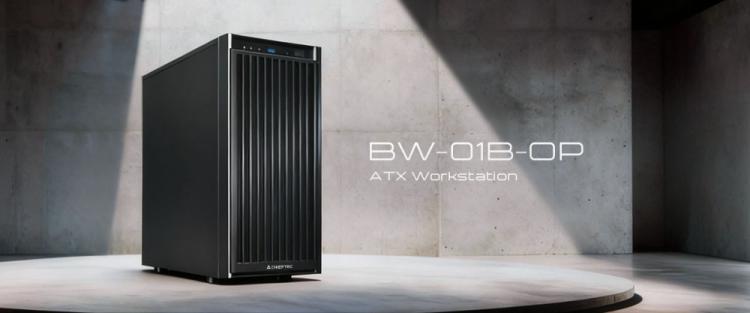

CHIEFTEC has unveiled the BW-01B-OP, a modern ATX workstation chassis engineered to meet the needs of professional users and digital content creators. Combining a timeless front panel design with a contemporary hinged door and essential front I O connectivity, the chassis aims to balance refined aesthetics with practical functionality for office and studio environments.
Designed to accommodate high-performance workstation hardware, the BW-01B-OP features extensive storage support, flexible cooling options including radiator compatibility up to 360mm, and thoughtful build features such as rubber-grommeted cable routing. With a pre-installed 120mm PWM HDB fan and an easy-to-remove storage cage system, the chassis is positioned as a reliable foundation for long-term productivity systems.
Refined Design with Practical Front I O
The BW-01B-OP presents a professional exterior finished in black, built from 0.6 mm SGCC steel. A modern front door conceals the drive bays while maintaining quick access to the front I O, which includes a USB Type-C port, USB 3.0, audio-out and mic-in. The chassis measures 510mm x 200mm x 465mm and weighs 8.23 kg net.
Extensive Storage Configuration
Storage flexibility is a key focus, offering support for up to 10 internal drives through tool-less trays and cages. Users benefit from two external 5.25 inch bays alongside multiple internal mounting options, with an easy-to-remove storage cage system that simplifies installation and airflow optimisation.
• 2 x 5.25 inch external drive bays
• 6 x 3.5 inch internal bays
• 4 x 2.5 inch internal bays
• Tool-less tray design
• Removable storage cage system
Cooling and Hardware Compatibility
Out of the box, the chassis includes a 120mm PWM HDB rear fan for quiet and durable operation. The BW-01B-OP supports a broad range of cooling configurations, including large radiators mounted at the top panel. Rubber-grommeted cable management cut-outs help maintain a clean interior layout and promote efficient airflow.
• Front: 2 x 120mm or 2 x 140mm fans
• Rear: 1 x 120mm PWM HDB fan pre-installed
• Top: 3 x 120mm or 3 x 140mm fans
• Radiator support: 240mm or 360mm at the top if the upper 5.25 inch tray is left empty
• Maximum CPU cooler height: 157mm
• Maximum GPU length: 310mm or up to 410mm without 2.5 inch SSD cage
Platform Support and Build Features
The BW-01B-OP supports Mini ITX, micro ATX and ATX motherboards, alongside standard ATX power supplies up to 160mm in length. Seven expansion slots allow for multi-card configurations, while included dust filters at the bottom and a magnetic top filter assist with long-term system maintenance.
• Motherboard support: Mini ITX, micro ATX, ATX
• ATX PSU support up to 160mm length
• 7 expansion slots
• Bottom removable dust filter
• Magnetic top dust filter
• 24 month warranty
CHIEFTEC is yet to announce pricing and availability. To learn more, visit the CHIEFTEC website.
