Press Release

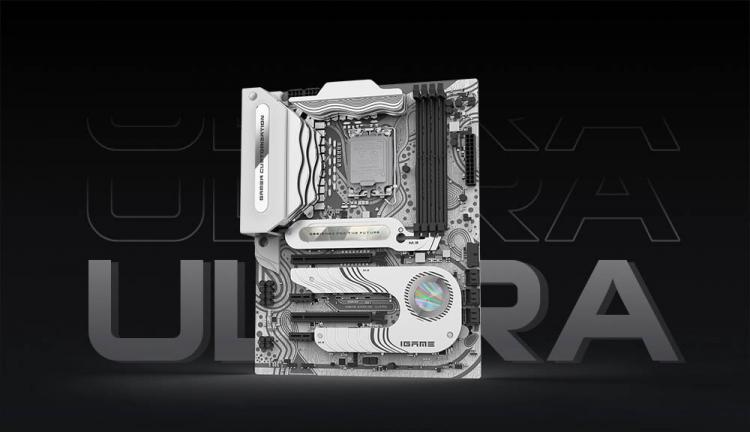

COLORFUL introduces the iGame Z690D5 Ultra motherboard for the 12th generation Intel Core processors. The motherboard is designed to meet the needs of gamers and content creators for building a high-performance PC with the latest technologies. The iGame Z690D5 Ultra motherboard sports enlarged and extruded silver wave aluminum heatsinks with a matching white-colored PCB. The motherboard’s headers, DIMM slots, and ICs are in black providing an elegant contrast with the white and silver colors. The motherboard boasts two PCIe 4.0 X16 slots for high-end graphics cards and high-speed AIC NVMe SSDs. The motherboard is also fitted with three M.2 PCIe Gen4x4 slots with high-performance enlarged heatsinks for Gen4 NVMe SSDs.

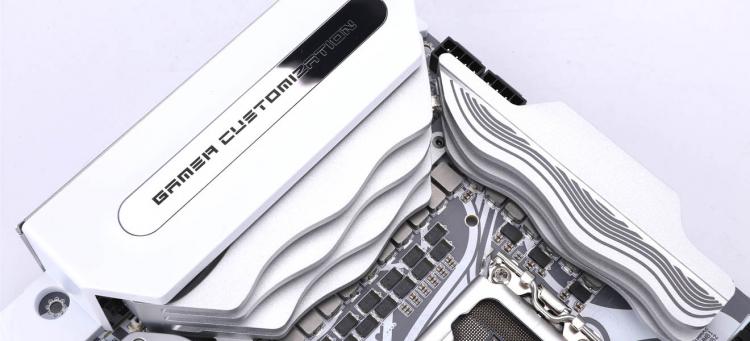

Extruded Silver Wave Heatsinks
The COLORFUL iGame Z690D5 Ultra motherboard features large extruded silver wave heatsinks to keep the VRM and MOSFETs cool without the need for an active fan. The extrusions create more surface area for heat dissipation making it more efficient for cooling. Furthermore, the silver wave design provides an intricate and eye-catching detail – perfect for gamers and builders that crave for aesthetically pleasing PC builds.
High-Performance PCIe 4.0
The iGame Z690D5 Ultra does not only comes with DDR5 memory support, it also sports two PCIe 4.0 X16 (X8+X8) slots for high-performance graphics cards and three PCIe 4×4 M.2 slots for high-performance NVMe SSDs.
COLORFUL iGame Z690D5 Ultra Specifications
CPU Support: Intel® 12th Generation Core™ Processor
Chipset: Intel Z690
Power Phase Design: 18+1 Power Phase (Dr MOS 90A)
Memory Support: 4x DDR5 DIMM Socket Dual-channel, Up to DDR5-6000(OC)
Expansion Slots:
– 2x PCI-E 4.0(x16, x8+x8)
– 1x PCI-E 3.0 x4
– 2x PCI-E 3.0 x1
Storage: Supports 3 x M.2 and 6 x SATA 6Gb/s
– M.2_A Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
– M.2_B Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
– M.2_C Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
Internal Connectors
– 1x 24-pin ATX Power Supply connector
– 2x 8-pin 12V Power connector
– 1x Front USB 3.2 Gen1 header, Support 2 Ports
– 2x Front USB 2.0 header, Support 4 Ports
– 1x Front USB 3.2 Gen2 Type-C
I/O Ports
– 1x USB 3.2 Gen2x2 20G (Type-C port);
– 4x USB 3.2 Gen2 10G;
– 2x USB 2.0;
– 1x HDMI port;
– 1x DP port;
– 1x CLR_CMOS
– 6x Audio port;
– 1x RJ45 port
LAN: Intel I225V Gbit LAN (2.5G) + Wi-Fi 6 Wireless LAN
Audio: 8-Channel High-Definition audio CODEC
Form-Factor/ Dimensions: ATX / (305mm x 244 mm)
CPU Support: Intel® 12th Generation Core™ Processor
Chipset: Intel Z690
Power Phase Design: 18+1 Power Phase (Dr MOS 90A)
Memory Support: 4x DDR5 DIMM Socket Dual-channel, Up to DDR5-6000(OC)
Expansion Slots:
– 2x PCI-E 4.0(x16, x8+x8)
– 1x PCI-E 3.0 x4
– 2x PCI-E 3.0 x1
Storage: Supports 3 x M.2 and 6 x SATA 6Gb/s
– M.2_A Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
– M.2_B Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
– M.2_C Support Type 2242/2260/2280 for SSD (PCIE Gen4 x4 SSD)
Internal Connectors
– 1x 24-pin ATX Power Supply connector
– 2x 8-pin 12V Power connector
– 1x Front USB 3.2 Gen1 header, Support 2 Ports
– 2x Front USB 2.0 header, Support 4 Ports
– 1x Front USB 3.2 Gen2 Type-C
I/O Ports
– 1x USB 3.2 Gen2x2 20G (Type-C port);
– 4x USB 3.2 Gen2 10G;
– 2x USB 2.0;
– 1x HDMI port;
– 1x DP port;
– 1x CLR_CMOS
– 6x Audio port;
– 1x RJ45 port
LAN: Intel I225V Gbit LAN (2.5G) + Wi-Fi 6 Wireless LAN
Audio: 8-Channel High-Definition audio CODEC
Form-Factor/ Dimensions: ATX / (305mm x 244 mm)
Pricing and Availability
The COLORFUL iGame Z690D5 Ultra motherboard will be shipping to partner resellers this May of 2022 for $289 MSRP.
