The next Blackwell-based NVIDIA GPU is here. Today we look at the new RTX 5060 Ti via Colorful’s NB EX graphics card.
Product on Review: RTX 5060 Ti NB EX Graphics Card
Manufacturer: Colorful
Street Price: USD $429
This week NVIDIA announced their next lineup of cards to join the RTX 50 Series, the RTX 5060 and RTX 5060 Ti. The RTX 5060 comes equipped with 8GB of cutting-edge GDDR7 memory, next-gen Blackwell shader cores delivering up to 19 teraflops of processing power, 5th-generation tensor cores capable of reaching 614 AI TOPS, and 4th-gen ray tracing cores that push up to 58 teraflops. It also packs 3,840 CUDA cores — a notable upgrade from the RTX 4060, which featured 3,072 CUDA cores and 8GB of GDDR6 VRAM.
The RTX 5060 Ti takes things a step further, boasting 4,608 CUDA cores and offering configurations with either 8GB or 16GB of GDDR7 memory. NVIDIA claims the enhanced Blackwell cores in the Ti model provide an additional 6 teraflops of raw power over the base 5060, which should translate to a meaningful performance boost in real-world gaming. While the 5060 is largely aimed at smooth 1080p experiences, the 5060 Ti comfortably targets 1440p gaming—provided you’re not chasing ultra-high frame rates.

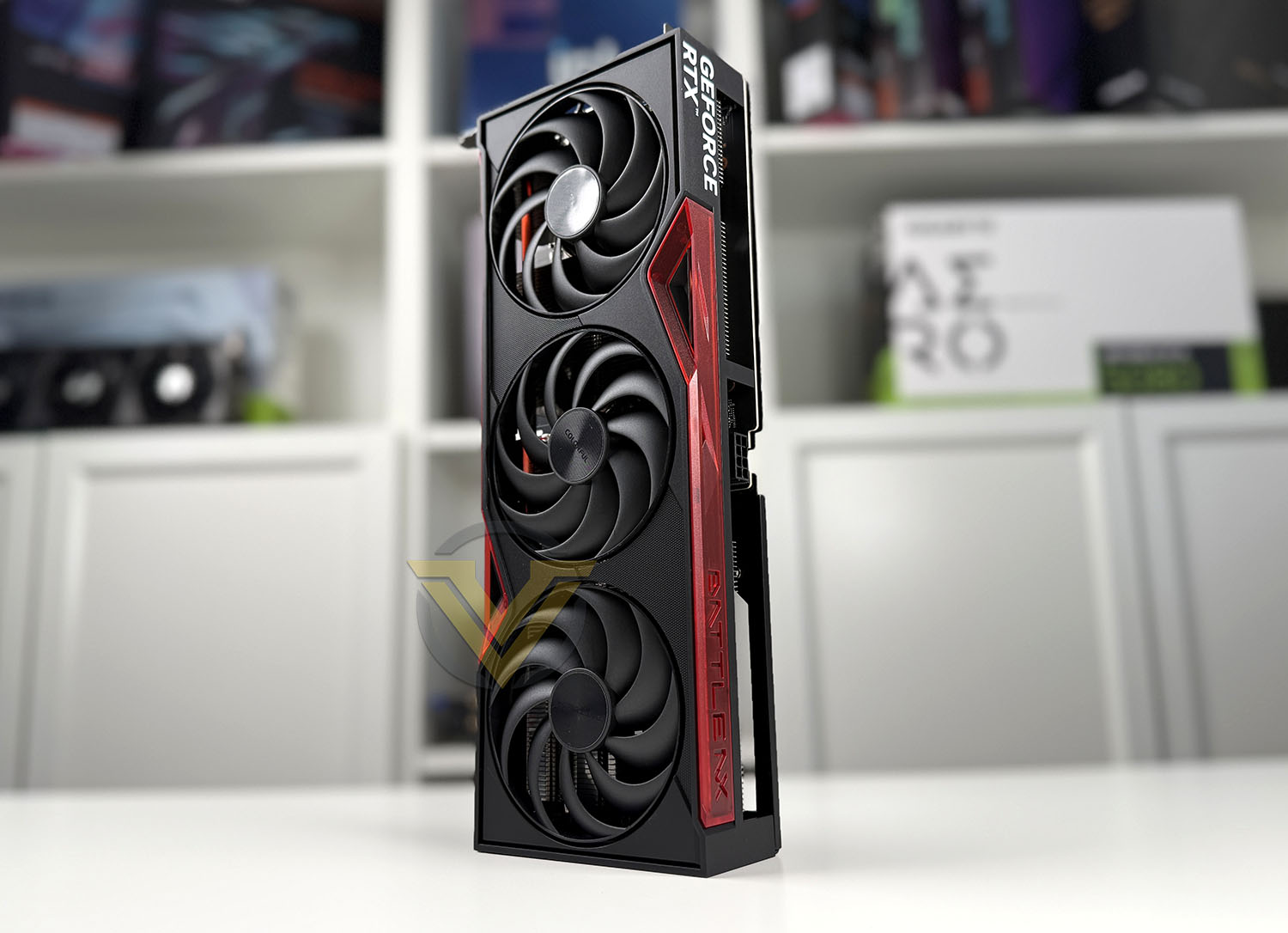

Today we’ll be focussing our attention on the RTX 5060 Ti by way of the Colorful NB EX.
About Colorful
Established in 1995, Colorful is a brand with a 20+ year history. It is a comprehensive company that holds the largest share in the Chinese graphics card market, integrating independent development, production, and sales. Also, it is a strategic partner of NVIDIA, AMD, and INTEL in China.
Technical Specifications & Features
Model Colorful GeForce RTX 5060 Ti NB EX 16GB-V
Chip Series GeForce® RTX 5060 Ti
Product Series Colorful Series
CUDA Cores 4608
Core Clock Base：2407Mhz；Boost:2572Mhz
Memory Clock 28Gbps
Memory Size 16GB
Memory Bus Width 128bit
Memory Type GDDR7
Memory Bandwidth 448GB/s
Power Connector 8pin
TDP 180W
Display Ports 3*DP2.1b+HDMI2.1b
Fans Type FAN
Auto Stop Technology Y
Power Suggest 600W
DirectX DirectX 12 Ultimate/OpenGL 4.6
NV technology Support DLSS 4/Reflex/Studio
Product Size 301.4*120*50mm
Product Weight 0.9KG(N.W)
Closer Look

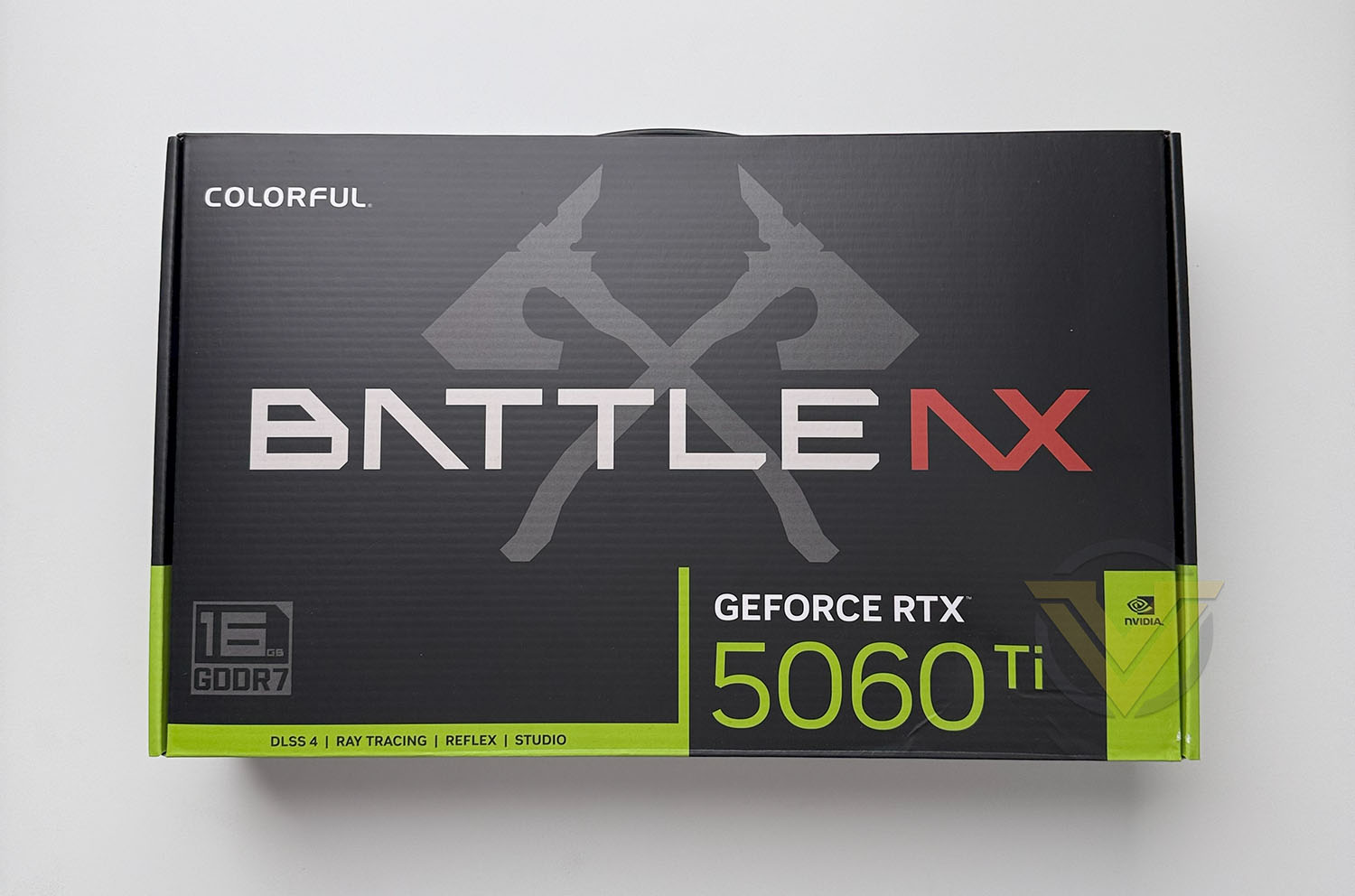

NB EX arrives in a rather simple looking box, which features the basic specifications. Inside, there are no bundled accessories apart from a cable tie.
Our card is again, very simple in its styling and design, the shroud has sharp edges and adopts two-tone colour with black and red. With dimensions being 301.4 x 120 x 50mm, this card will easily fit into most computer cases.

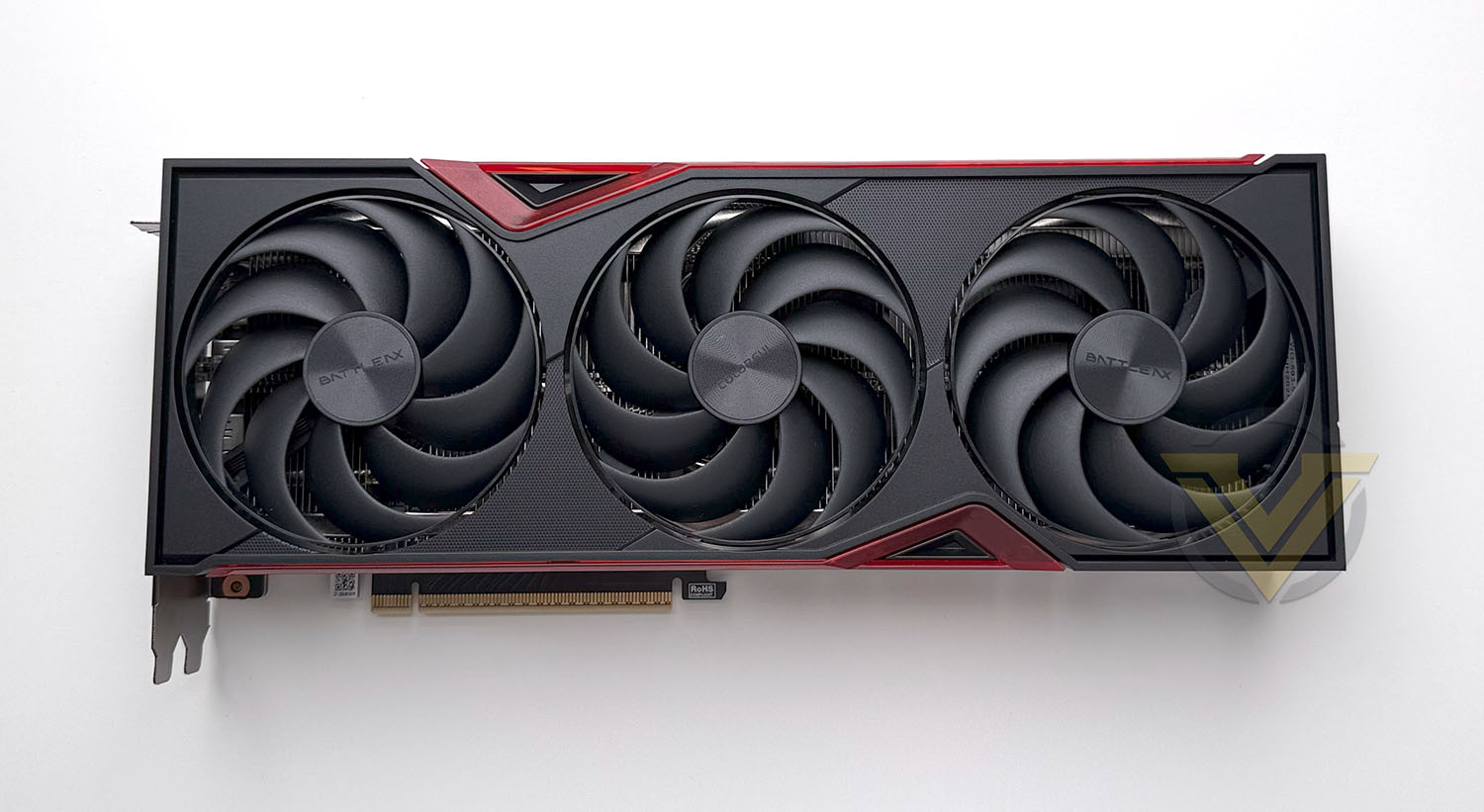

NB EX uses a triple fan cooler which feature a 9-blade design. The middle fan spinning anti-clockwise, while the two outer fans spinning clockwise to reduce turbulence. The heatsink underneath uses a direct-contact copper plate and twin heatsinks.

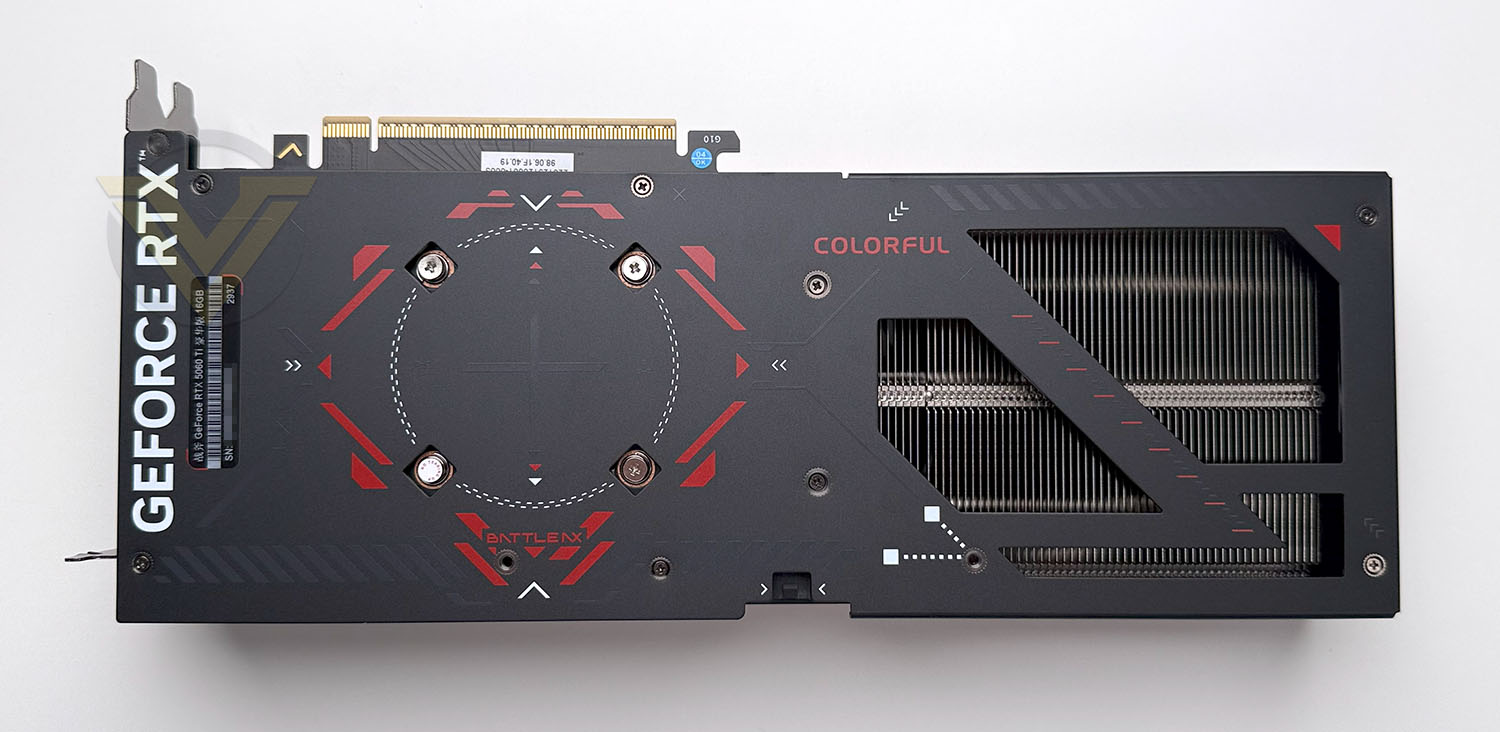

The backside of our card features a metal backplate with two cut-outs for ventilation and cooling.

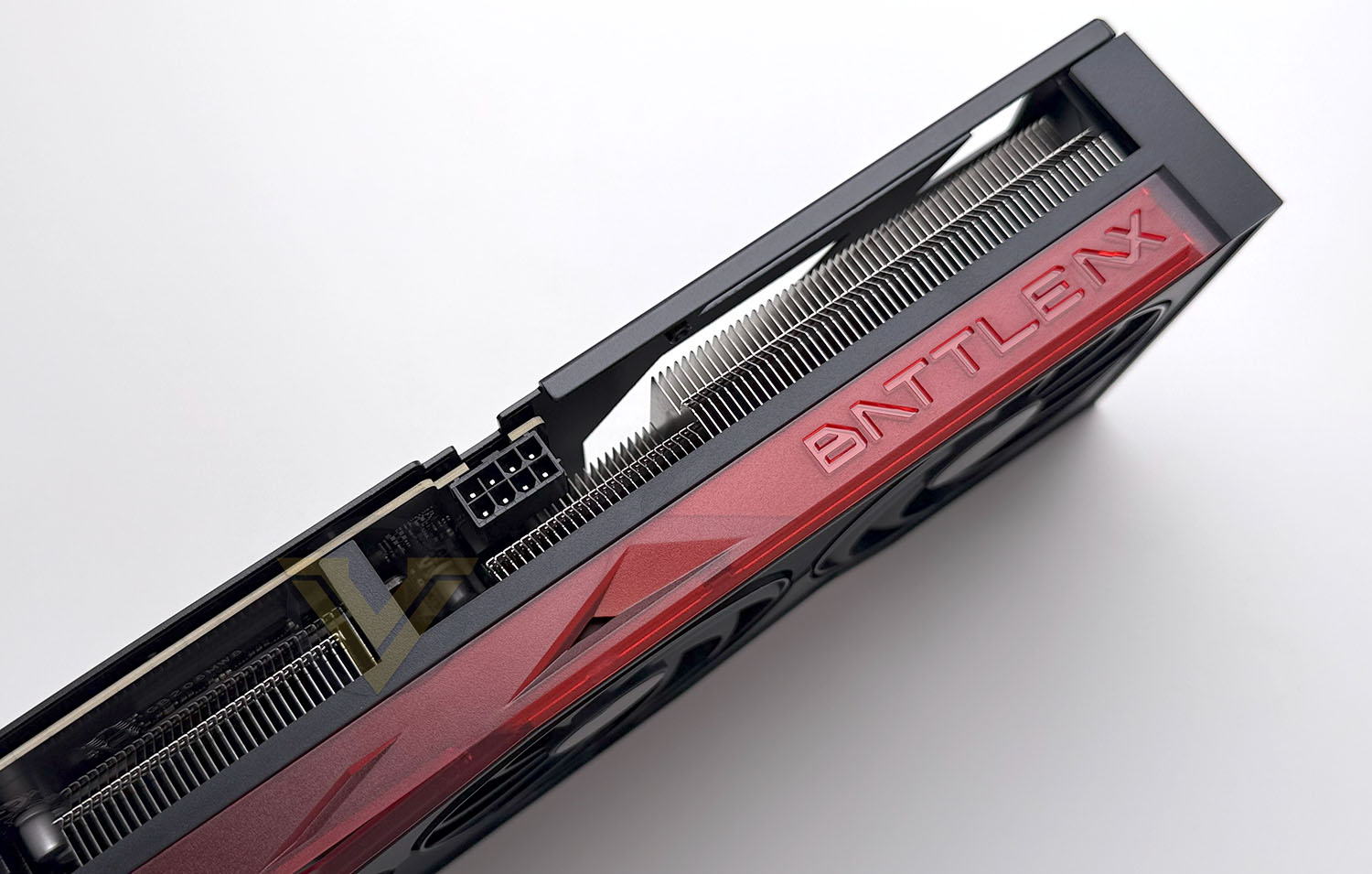

This card features a single 8-pin PCI Express connector and has a recommended wattage of 600W. On this edge of the card we also have LED lighting which is very basic – the text simply emits a red glow.

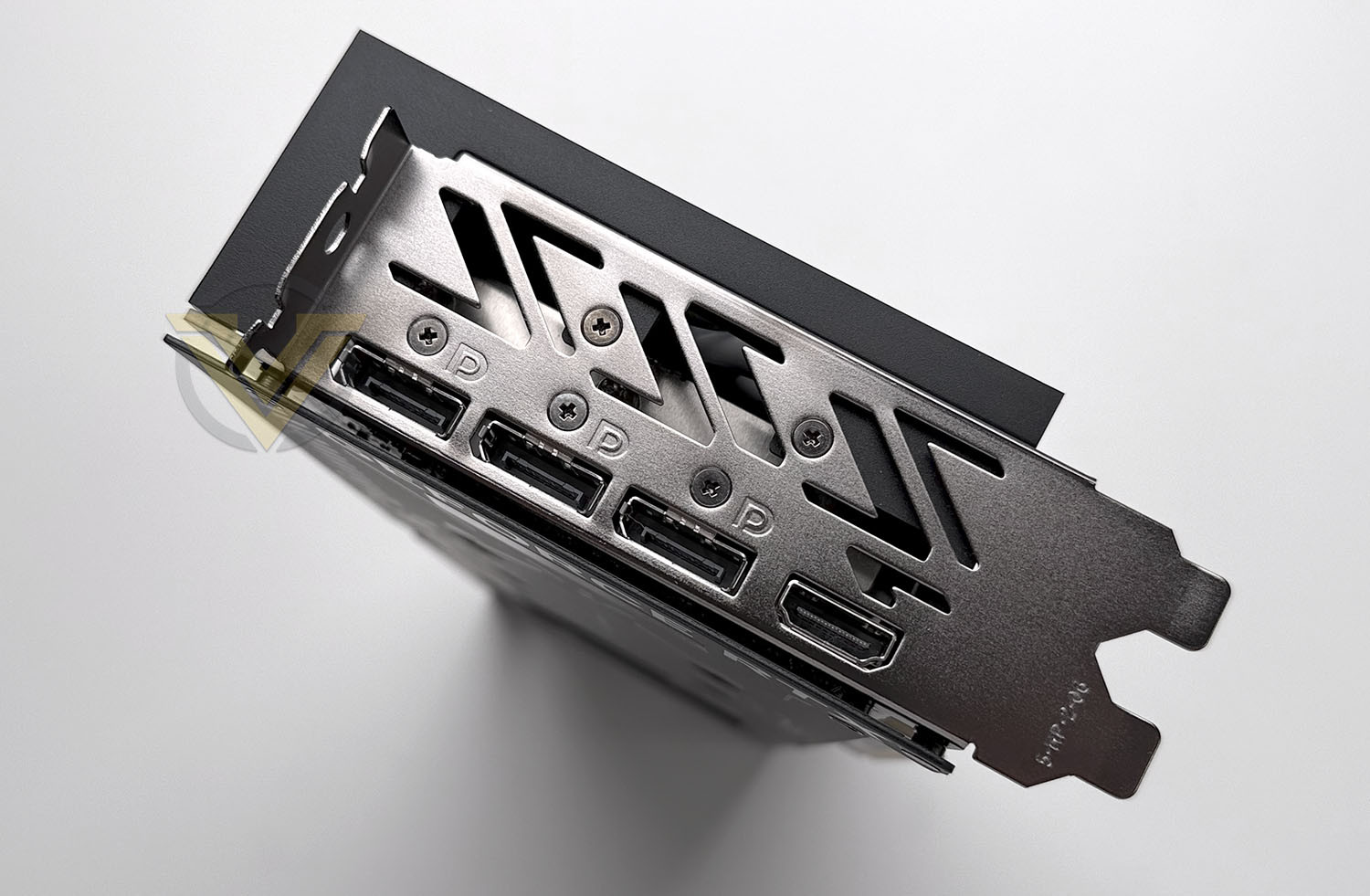

On the rear IO panel there are a total of four video outputs – 3x DisplayPort 2.1a and 1x HDMI 2.1b. So if you need additional display support, it will have to come by way of DP.
NB EX features no factory overclock and as such sits at the stock frequencies, having a base clock of 2407MHz and a boost of 2572MHz.
Test Setup & Methodology
HOW WE TEST GRAPHICS CARDS
Testing a graphics card is an extremely lengthy process. We sometimes see reviews where a graphics card has been tested using out of date equipment, out of date games and even out of date drivers. While the latter can be excused due to the sheer amount of driver updates making a thorough review impossible we will however notify the reader when we have used a different driver to the normal for example a pre-release driver. For the most part however we will always use the same hardware and latest drivers so this does certainly need to be taken into consideration when viewing our testing results. Each game and benchmark is tested times with the lowest and highest scores omitted out of the 5 results and the average then taken from the three remaining to give us our final result for each resolution and setting used.HARDWARE
In Q1 2025 we decided to upgrade our test system to the very latest AMD X870E platform with the renowned AMD Ryzen 7 9800X3D – currently regarded as one of the best gaming CPUs to date. AMD’s platform is one of the most popular choices for gamers and by using such a configuration, we can hopefully showcase to our readership what they can expect.This new platform provides us with the very latest technology and standards to be able to accurately report back on performance of modern graphics cards.
Graphics Cards on test:
MSI VENTUS 2X OC RTX 4060 TI
ASUS PRIME RTX 4070 SUPER
INNO3D RTX 4080 SUPER X3
PNY RTX 4090 XLR8 VERTO EPIC-X
GIGABYTE RTX 5070 TI EAGLE OC ICE
GIGABYTE RTX 5080 GAMING OC
GIGABYTE RTX 5080 AERO OC SFF
AORUS RTX 5090 MASTER
GIGABYTE RX 7700 XT GAMING OC
POWERCOLOR RED DEVIL RX 7800 XT
POWERCOLOR HELLHOUND RX 7900 GRE
XFX MERC 310 RX 7900 XTX
POWERCOLOR HELLHOUND RX 9070
Special thanks go to MSI and Corsair for providing the hardware configuration for our graphics card reviews:
Motherboard: MSI X870E CARBON WIFI
CPU: AMD Ryzen 7 9800X3D
RAM – 32GB HyperX FURY Renegade 7600MHz
Power Supply – Corsair RM1000X
Hard Drive – Samsung 990 PRO
Cooler – Corsair iCue Link Titan 360 RX LCD
CPU: AMD Ryzen 7 9800X3D
RAM – 32GB HyperX FURY Renegade 7600MHz
Power Supply – Corsair RM1000X
Hard Drive – Samsung 990 PRO
Cooler – Corsair iCue Link Titan 360 RX LCD
BENCHMARKS
If you are a regular reader of our reviews you will know we like to test the latest hardware with the latest games and benchmarks on the market. Here are the games we’ve chosen:S.T.A.L.K.E.R. 2
Indiana Jones and the Great Circle
Black Myth: Wukong
Silent Hill 2 Remake
TEKKEN 8
Horizon Forbidden West
Indiana Jones and the Great Circle
Black Myth: Wukong
Silent Hill 2 Remake
TEKKEN 8
Horizon Forbidden West
To capture framerates we use CapFrameX.
Other benchmark tools have been included to give a broad overview of performance and these include:
PugetBench for Davinci Resolve
ProCyon AI Image Generation
ProCyon Video Editing
3DMark SpeedWay
3DMark Nomad
Let’s see how today’s graphics card performed…
Power, Temperatures, Acoustics
To test for power consumption, we take a measurement from the plug socket. It is important to note that the figures below represent total system power use and not just the GPU. The CPU was always in a fixed state so did not affect the additional power load when the GPU was placed under 100% load using AIDA64 stability test (GPU Only) which was ran for 20 minutes at which point a load reading was taken. Idle readings were taken 5 minutes after system boot to ensure any background services and applications had loaded.
TEMPERATURE
To test temperatures we measured idle temperatures after booting windows, letting all applications finish loading and ran a few benchmarks. Once the benchmarks were complete we left the card to reach a cooling plateau where we then took the idle temperatures. For the load tests we use GPU-Z and have this running throughout all of our benchmarks, and then report back on the maximum temperatures at the end of this exhaustive session.ACOUSTICS
For the purpose of testing audio levels we have the NDI KC-3300 sound level meter. During the temperature recording above, while in Black Myth Wukong benchmark we monitored the audio and the results are found below. All graphics cards are tested in their out of the box state (auto).PugetBench for Davinci Resolve
PugetBench for DaVinci Resolve runs on top of your installed copy of Resolve, providing benchmark data directly from the application. Our benchmarks are designed in partnership with hardware and software industry leaders, as well as end users and influencers who use DaVinci Resolve daily, to ensure that they are representative of real-world workflows.
Procyon AI Image Generation
The Procyon AI Image Generation Benchmark provides a consistent, accurate, and understandable workload for measuring the inference performance of on-device AI accelerators. This benchmark was developed in partnership with multiple key industry members to ensure it produces fair and comparable results across all supported hardware.

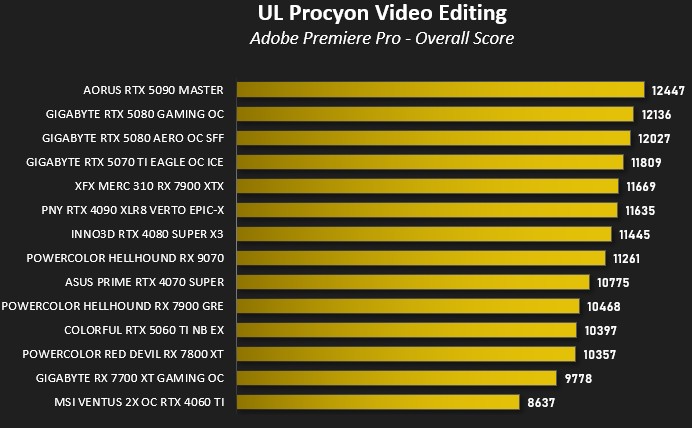

Procyon Video Editing Benchmark
Procyon benchmarks use real applications to test performance whenever possible. The Procyon Video Editing Benchmark uses Adobe Premiere Pro in a typical video editing workflow.
3DMark Speed Way
3DMark Speed Way is a DirectX 12 Ultimate benchmark for gaming PCs running Windows 10 and 11. Speed Way’s engine is assembled to demonstrate the new features DirectX 12 Ultimate brings to raytraced gaming. Speed Way uses DirectX Raytracing tier 1.1 for real-time global illumination and real-time raytraced reflections, coupled with new DirectX 12 Ultimate performance optimizations like Mesh Shaders.
3DMark Steel Nomad
Steel Nomad uses graphics technologies just like your favorite new game titles to give you a good idea of how your system will run the latest heavy PC games without ray tracing. Succeeding the massively popular 3DMark Time Spy benchmark, Steel Nomad runs at a 4k resolution and adds new graphics technologies like volumetric skies and procedural grass.
S.T.A.L.K.E.R 2
S.T.A.L.K.E.R. 2: Heart of Chornobyl is a 2024 first-person shooter, survival horror video game developed and published by GSC Game World. It is the fourth main game released in the S.T.A.L.K.E.R. video game series, as well as the first S.T.A.L.K.E.R. game in 15 years since the release of Call of Pripyat in 2009.
Silent Hill 2 Remake
Silent Hill 2 is a 2024 survival horror game developed by Bloober Team and published by Konami Digital Entertainment. It is a remake of the 2001 video game Silent Hill 2, originally developed by Team Silent, a group within Konami Computer Entertainment Tokyo.
Indiana Jones and the Great Circle
Indiana Jones and the Great Circle is a 2024 action-adventure game developed by MachineGames and published by Bethesda Softworks. It is based on the Indiana Jones franchise and features an original narrative that draws from the film series.
Black Myth: Wukong
Black Myth: Wukong is a 2024 action role-playing game developed and published by Game Science. The game is inspired by the classical Chinese novel Journey to the West.
TEKKEN 8
Tekken 8 is a 2024 fighting game developed by Bandai Namco Studios and Arika and published by Bandai Namco Entertainment. It is the eighth main installment in the Tekken series and the first one to debut on home systems instead of arcades.
Horizon Forbidden West
Horizon Forbidden West is a 2022 action role-playing game developed by Guerrilla Games and published by Sony Interactive Entertainment.
Conclusion
The RTX 5060 Ti makes a strong case for itself as a mid-range GPU that balances performance, efficiency, and thermal management remarkably well. Drawing under 300 watts of power, it’s a far cry from the more power-hungry options on the market, allowing it to run cooler and more efficiently, even during intense workloads. For users concerned about energy consumption and overall system heat, this card is a welcome addition to the Blackwell lineup.
One of the most standout features of this Colorful RTX 5060 Ti we have reviewed today is how quietly it operates. Even under load, the card remains whisper quiet, maintaining low fan noise levels that are barely noticeable in a typical gaming setup. This makes it a great fit for gamers or creators working in quiet environments or those building small form factor PCs where noise is often a concern.
Thermally, the RTX 5060 Ti impresses across the board. Of all the GPUs tested, it recorded the lowest VRAM temperatures, and its GPU core temps are among the coolest compared to both current-gen and previous-gen cards. This level of thermal efficiency not only improves longevity but also ensures consistent performance during extended gaming sessions or high-intensity creative tasks.
In terms of performance, the RTX 5060 Ti delivers respectable 1440p gameplay and outperforms its predecessor, the RTX 4060 Ti, by a noticeable margin. While it’s not built for 4K gaming—where it struggles to maintain playable frame rates—it handles 1080p with ease and excels in that resolution. For gamers who prioritize high-quality visuals at 1080p or moderate settings at 1440p, it offers a well-balanced experience.
At $429, the RTX 5060 Ti delivers solid value for its class. It competes closely with AMD’s RX 7800 XT, offering a real choice for gamers depending on their platform preference and feature priorities. With its quiet operation, cool thermals, decent performance, and efficient power draw, the RTX 5060 Ti stands out as a well-rounded option for gamers looking to maximize performance without stepping into high-end pricing territory.
Pros
+ Delivers excellent 1080p performance, and respectable 1440p performance
+ Operates under 300W
+ Low noise and temperatures
+ Outperforms RX 7800 XT and is cheaper
Cons
– May struggle at 1440p in some titles
+ Delivers excellent 1080p performance, and respectable 1440p performance
+ Operates under 300W
+ Low noise and temperatures
+ Outperforms RX 7800 XT and is cheaper
Cons
– May struggle at 1440p in some titles
