Cryorig presents its first PC case project at Kickstarter with the TAKU Monitor Stand PC case. The TAKU chassis has been in development for 2 years now in partnership with PC case manufacturer Lian Li.
Cryorig presents its first PC case project at Kickstarter with the TAKU Monitor Stand PC case. The TAKU chassis has been in development for 2 years now in partnership with PC case manufacturer Lian Li.
Cryorig presents its first PC case project at Kickstarter with the TAKU Monitor Stand PC case. The TAKU chassis has been in development for 2 years now in partnership with PC case manufacturer Lian Li. Tha Cryorig TAKU will be featured in Computex 2017 as one of the upcoming products of the brand. Starting 29th of May up until the 28th of July, the TAKU Kickstarter campaign is live and open for backers. Backers will have the chance to get first access to the first batch of TAKU cases once in production. Plus, TAKU backers will also be offered multiple customization options that’s only available at Kickstarter.
Space-Saver, Multifunction

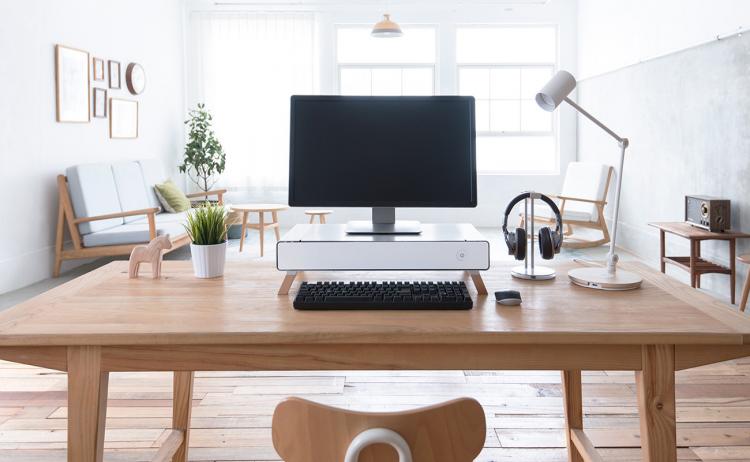

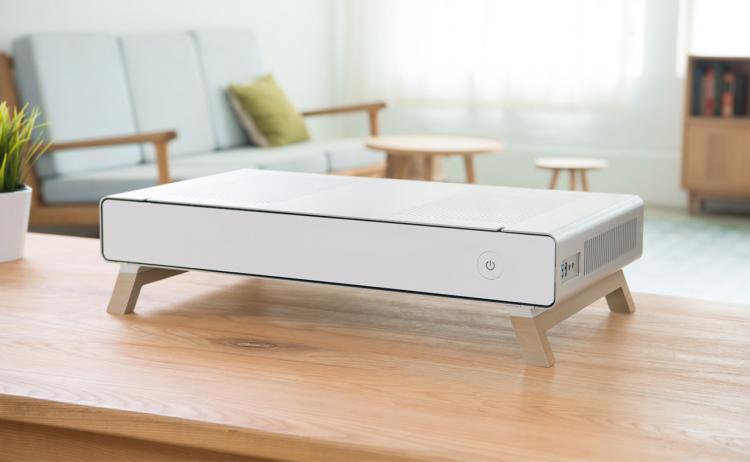

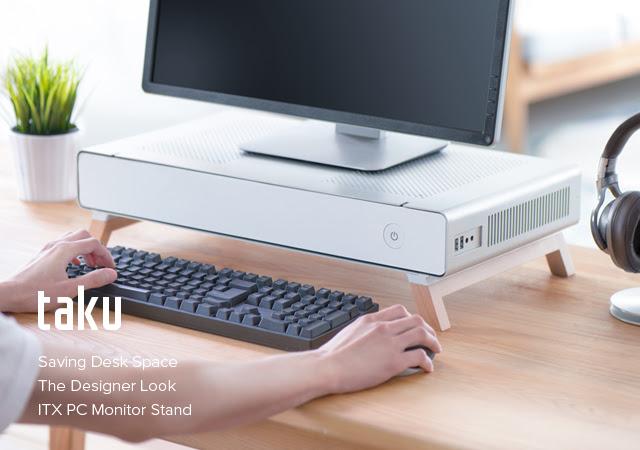

The Cryorig TAKU chassis is designed to save space on your desktop as well as to provide viewing comfort by improving the ergonomics in your desk. It is both a PC case and a monitor stand for you to raise your monitor higher and to more comfortable levels. It is offered as a high-end mini-ITX form factor chassis that can house graphics cards as long as 280mm. It has support for ITX motherboards, SFX or SFX-L power supplies. For storage space, the TAKU supports one 3.5-inch hard drive and two 2.5-inch drives.
Sturdy and Smart

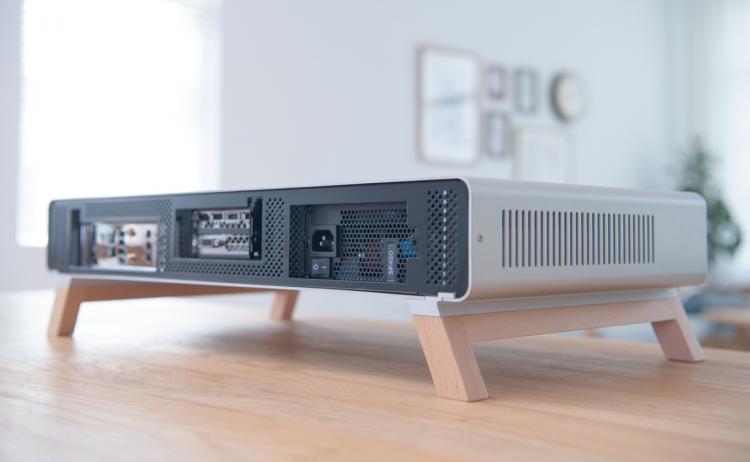

The TAKU features solid aluminium panels making it sturdy to support up to 15 kilograms on top of it. The chassis also features smart layout by using a sliding system tray for easy access on the hardware installed inside without dismantling the entire desktop setup. On the right side of the chassis, there are dual USB 3.0 ports and the set of audio ports which are accessible and in reach. Cryorig reports there will be a type-C port for future models. There are two small cable routing holes in front of the TAKU chassis for charging cables and others that might be needed to be routed in the front of the chassis.
Unique Aesthetics

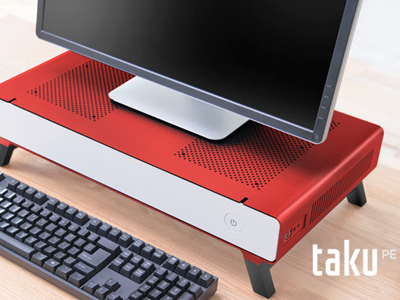

The Cryorig TAKU case uses a combination of wood and aluminium giving it a unique look that has an organic at the same time a touch of modern Technology. Cryorig will be bundling the TAKU chassis with the Cryorig C7 ITX CPU cooler. Once the TAKU project exceeds orders of 1,000 unit, Cryorig will offer multiple colour options and material options.
TAKU Specifications
Case Dimensions (H x W x D): 142 x 570 x 310 mm
Weight: 5.3 kg
Motherboard support: Mini-ITX
Power Supply support: SFX, SFX-L
Drives: 1 x 3.5” HDD and 2 x 2.5″ HDD/SSD
Front ports: 2 x USB 3.0 (internal 20pin plug) and 3.5mm Audio in/out ports.
Power button: Premium-grade button
Material: 2 mm aluminium, anodized sandblasted exterior
Colours: Anodized black or silver exterior, matte black painted
Included in Box:
– Internal Lian-Li PCI-E 3.0 x16 compatible Riser Card
– PSU- 24pin and 8pin extension cable included
– 92 mm System Fan included
Compatibility
CPU Coolers: Max. height 48mm
Hard Disk Drives:
– 2 x 2.5″ HDD/SSD in drive bay
– 1 x 3.5″ HDD/SSD in drive bay
Graphics Card:
– Max. Width ~ 134mm
– Max. Height ~ 40mm (Dual Slot PCI-E)
– Max. Length ~ 280mm
Motherboard: Mini-ITX
Power Supply: SFX and SFX-L
Memory Max. Height: 52 mm
Case Dimensions (H x W x D): 142 x 570 x 310 mm
Weight: 5.3 kg
Motherboard support: Mini-ITX
Power Supply support: SFX, SFX-L
Drives: 1 x 3.5” HDD and 2 x 2.5″ HDD/SSD
Front ports: 2 x USB 3.0 (internal 20pin plug) and 3.5mm Audio in/out ports.
Power button: Premium-grade button
Material: 2 mm aluminium, anodized sandblasted exterior
Colours: Anodized black or silver exterior, matte black painted
Included in Box:
– Internal Lian-Li PCI-E 3.0 x16 compatible Riser Card
– PSU- 24pin and 8pin extension cable included
– 92 mm System Fan included
Compatibility
CPU Coolers: Max. height 48mm
Hard Disk Drives:
– 2 x 2.5″ HDD/SSD in drive bay
– 1 x 3.5″ HDD/SSD in drive bay
Graphics Card:
– Max. Width ~ 134mm
– Max. Height ~ 40mm (Dual Slot PCI-E)
– Max. Length ~ 280mm
Motherboard: Mini-ITX
Power Supply: SFX and SFX-L
Memory Max. Height: 52 mm
Pricing and Availability
Backers of the Cryorig TAKU at Kickstarter can get the chassis for $250 without shipping, the Standard TAKU Classic will have an MSRP of $299 without shipping. The TAKU PE with its multiple colour options and other customizations will have a pricing depending on the customizations. The first shipment of the TAKU chassis for the backers will start on September 2017. Check out the TAKU Monitor Stand PC case Kickstarter project here.
