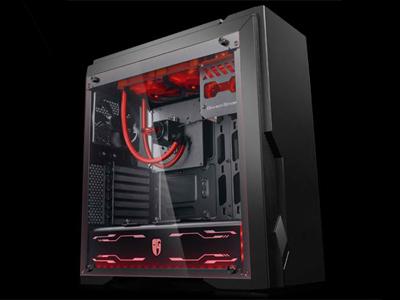

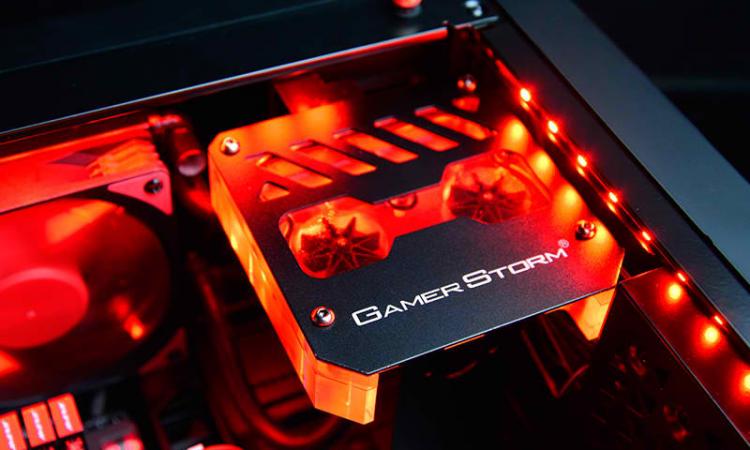

DEEPCOOL introduces the Dukase Liquid chassis, an upgrade version of the Dukase V2 featuring superior liquid cooling support and upgraded lighting system. The Dukase Liquid features integrated red LED lighting that illuminates the entire chassis with the included LED strips and LED light panel. The Dukase Liquid being designed for custom liquid cooling, the case includes a flow indicator and water block.

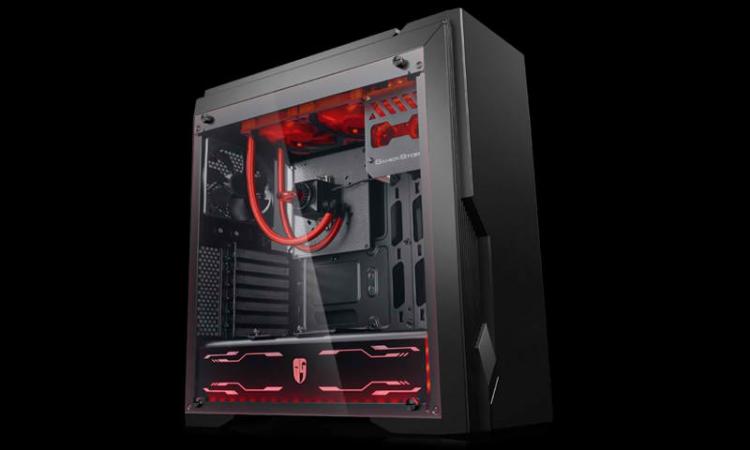

The DEEPCOOL Dukase Liquid features an acrylic window on the side panel to provide a clear and aesthetic view of the featured hardware inside and the illumination of the case a better effect. The custom LED light panel and LED strips paired with the huge window offers an immersive lighting that will complete any enthusiast gaming setup.
Specifications
Materials: SPCC+PLASTIC
Product Dimension (LxWxH): 482.7×202×504mm
Weight Net Weight: 8.4 kg
Gross Weight: 9.8 kg
I/O Panel: 1×USB3.0; 1×USB2.0; Audio×1; Mic×1
Motherboard: ATX / MICRO ATX / MINI-ITX
Drive Bays: 5.25”Drive Bays×0; 3.5“/2.5”Drive Bays×2; 2.5“Drive Bays×3
Expansion Slots: 7
Cooling Fans:
Rear: 1×120mm fan (Pre-installed)
Front: 2×120mm or 1×140mm
CPU Cooler Compatibility: 160mm height max

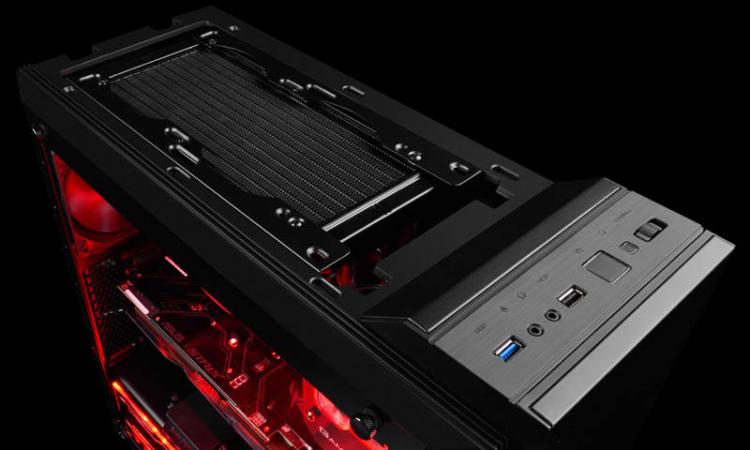

Liquid Cooler: 240mm radiator liquid cooling system pre-installed at top; Optional: 120mm at rear
Power Supply Type: ATX PS2
Graphic Card Compatibility: 390mm length max
Carton Dimension: 560×270×560mm
Fan Speed Switch at front panel 3 working status, control three fans
Radiator Dimensions: 270×120×27mm
Fan Dimensions: 120×120×25mm(2PCS)
Fan Speed: 500±200-1800±10%RPM (4Pin)
Fan Air Flow: 153.04CFM（MAX）
Fan Noise Level: 17.6~31.3dB(A)
Fan Bearing Type: Hydro Bearing
Fan Rated Voltage: 12VDC
Fan Rated Current: 0.12±10%A(MAX)
Fan Power Consumption: 1.44W
Pump Connector: 3-Pin
Pump Operating Voltage: 6~13.8VDC
Pump Rated Voltage: 12VDC
Pump Speed: 2200±10%RPM
Pump Current: 0.16±15%A
Pump Power Consumption: 1.92W
Materials: SPCC+PLASTIC
Product Dimension (LxWxH): 482.7×202×504mm
Weight Net Weight: 8.4 kg
Gross Weight: 9.8 kg
I/O Panel: 1×USB3.0; 1×USB2.0; Audio×1; Mic×1
Motherboard: ATX / MICRO ATX / MINI-ITX
Drive Bays: 5.25”Drive Bays×0; 3.5“/2.5”Drive Bays×2; 2.5“Drive Bays×3
Expansion Slots: 7
Cooling Fans:
Rear: 1×120mm fan (Pre-installed)
Front: 2×120mm or 1×140mm
CPU Cooler Compatibility: 160mm height max
Liquid Cooler: 240mm radiator liquid cooling system pre-installed at top; Optional: 120mm at rear
Power Supply Type: ATX PS2
Graphic Card Compatibility: 390mm length max
Carton Dimension: 560×270×560mm
Fan Speed Switch at front panel 3 working status, control three fans
Radiator Dimensions: 270×120×27mm
Fan Dimensions: 120×120×25mm(2PCS)
Fan Speed: 500±200-1800±10%RPM (4Pin)
Fan Air Flow: 153.04CFM（MAX）
Fan Noise Level: 17.6~31.3dB(A)
Fan Bearing Type: Hydro Bearing
Fan Rated Voltage: 12VDC
Fan Rated Current: 0.12±10%A(MAX)
Fan Power Consumption: 1.44W
Pump Connector: 3-Pin
Pump Operating Voltage: 6~13.8VDC
Pump Rated Voltage: 12VDC
Pump Speed: 2200±10%RPM
Pump Current: 0.16±15%A
Pump Power Consumption: 1.92W
Product Gallery
The DEEPCOOL Dukase Liquid will be available this February 2017 with an MSRP of $189.
