The new PC system case is coloured to match the red and black livery of ASUS ROG components, and follows the general feature set of their new Genome chassis design.
The new PC system case is coloured to match the red and black livery of ASUS ROG components, and follows the general feature set of their new Genome chassis design.

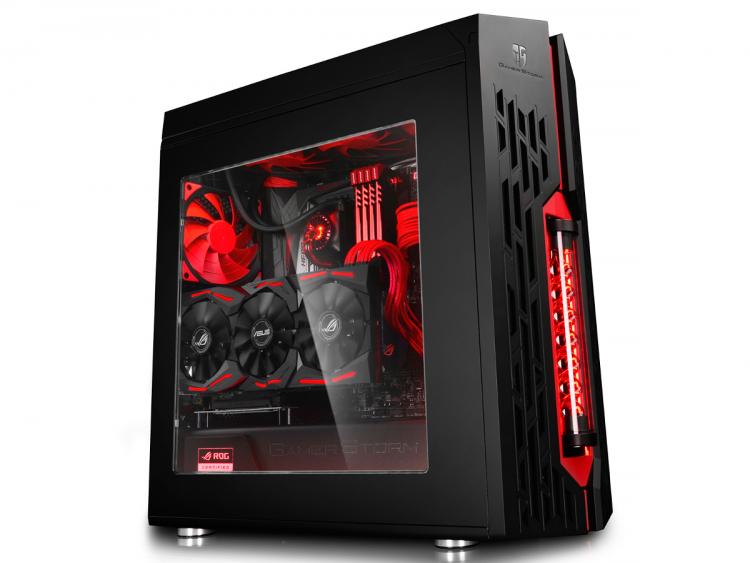

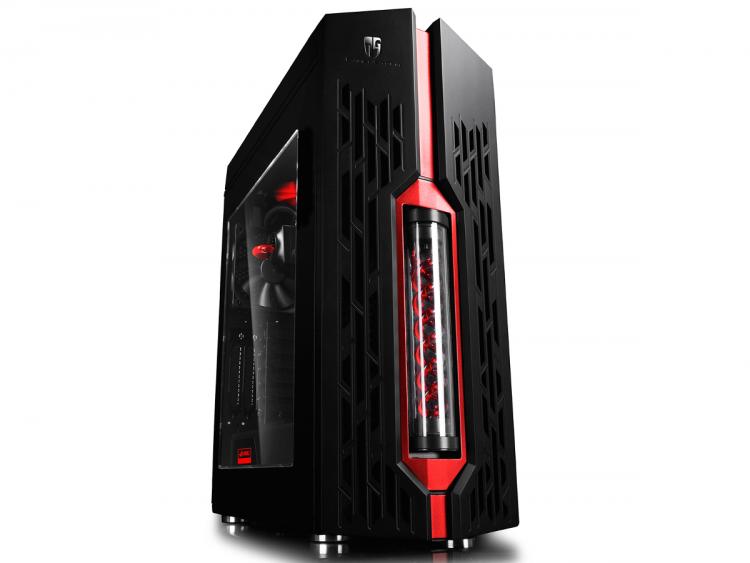

Cooling specialists DeepCool are back with a new case design, in this instance inspired by one of the most popular brands in PC gaming. Hot on the heels of the Genome II chassis’s unveiling comes a branded watercooled variant: GamerStorm Genome, ROG Certified Edition.

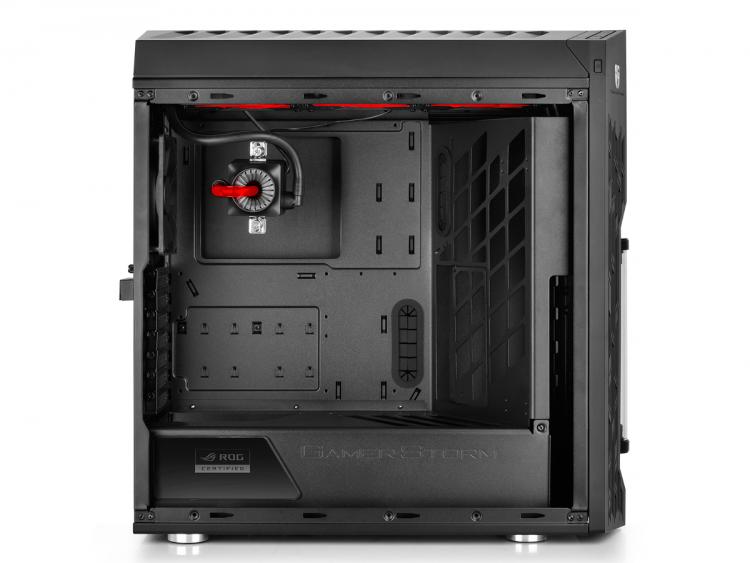

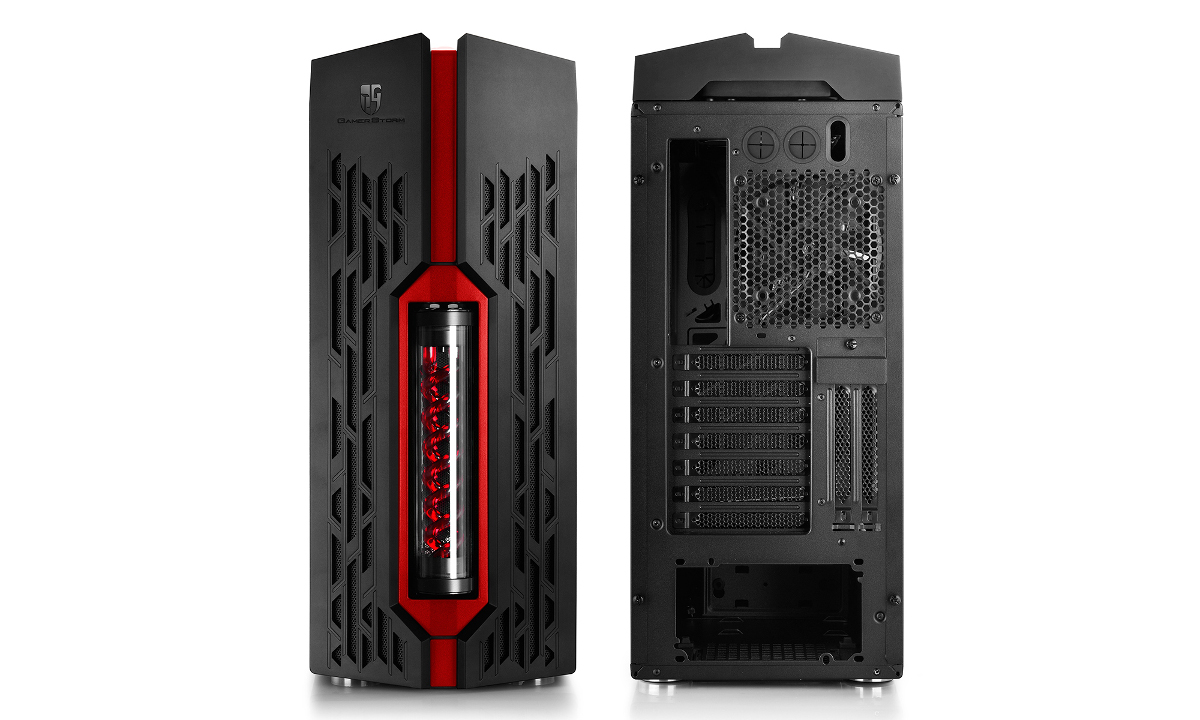

The Genome ROG Certified Edition is a fair step beyond a simple recolour of the GamerStorm Genome. The case is ASUS ROG Certified (presumably meaning that it’s been created in partnership with ROG themselves), and integrates compatibility for some of the latest features seen on their motherboards. This special edition Genome also adds pre-installed closed loop liquid cooling for the CPU – including the unique twisted helix reservoir viewable through the front of the case.
Aesthetics are clearly a major focus of the new chassis, most notably through liberal use of RGB LEDs throughout. A dedicated LED controller is compatible with the ASUS AURA lighting system, connected via a header on many of the newer ASUS ROG gaming-class motherboards. Additionally, an extended PSU cover and cable management holes should serve to keep the internals crisp and clear of clutter. Optionally, a PCI-Express riser can be fitted to the PSU cover to vertically mount the GPU, putting it front and center as people peer through the case window.
You can read more about the Genome ROG Certified Edition at GamerStorm.com.
Tech Specs.
Motherboards:- (MAX:305×275MM)ATX-L/ATX/MICRO ATX/MINI-ITX
Materials:- SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH):- 506×210×505 MM
Net Weight:- 9.77 kg
Liquid Cooler Compatibility:- 120/240mm at front; 120/240/280/360mm at top
3.5″ Drive Bays:- 2
2.5″ Drive Bays:- 2
I/O Panel:- 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots:- 7 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans:-
– Pre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system;
– Optional: Front: 2×120mm or 1×200mm fan
Materials:- SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH):- 506×210×505 MM
Net Weight:- 9.77 kg
Liquid Cooler Compatibility:- 120/240mm at front; 120/240/280/360mm at top
3.5″ Drive Bays:- 2
2.5″ Drive Bays:- 2
I/O Panel:- 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots:- 7 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans:-
– Pre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system;
– Optional: Front: 2×120mm or 1×200mm fan
Power Supply Type:- ATX PS2
VGA Compatibility:- 330mm
Carton Dimension:- 575×285×600 mm
Color of LED Lights:- RGB Color LED
Radiator Dimensions:- 395X120X32mm
Fan Dimensions:- 120X120X25mm(3PCS)
Fan Speed:- 500±200-1800±10%RPM (4Pin)
Fan Air Flow:- 229.56CFM（MAX）
Fan Noise Level:- 17.6~31.3dB(A)
Fan Bearing Type:- Hydro Bearing
Fan Rated Voltage:- 12VDC
Fan Rated Current:- 0.18±10%A(MAX)
Fan Power Consumption:- 2.16W
Pump Connector:- 3Pin
Pump Operating Voltage:- 6~13.8VDC
Pump Rated Voltage:- 12VDC
Pump Speed:- 2200±10%RPM
Pump Load Current:- 0.16±15%A
Pump Power Consumption:- 1.92W
VGA Compatibility:- 330mm
Carton Dimension:- 575×285×600 mm
Color of LED Lights:- RGB Color LED
Radiator Dimensions:- 395X120X32mm
Fan Dimensions:- 120X120X25mm(3PCS)
Fan Speed:- 500±200-1800±10%RPM (4Pin)
Fan Air Flow:- 229.56CFM（MAX）
Fan Noise Level:- 17.6~31.3dB(A)
Fan Bearing Type:- Hydro Bearing
Fan Rated Voltage:- 12VDC
Fan Rated Current:- 0.18±10%A(MAX)
Fan Power Consumption:- 2.16W
Pump Connector:- 3Pin
Pump Operating Voltage:- 6~13.8VDC
Pump Rated Voltage:- 12VDC
Pump Speed:- 2200±10%RPM
Pump Load Current:- 0.16±15%A
Pump Power Consumption:- 1.92W
