GALAX released low-profile versions of their GTX 1050 and GTX 1050 Ti graphics cards thus expanding the brand’s GTX 10-Series line up.
GALAX released low-profile versions of their GTX 1050 and GTX 1050 Ti graphics cards thus expanding the brand’s GTX 10-Series line up.

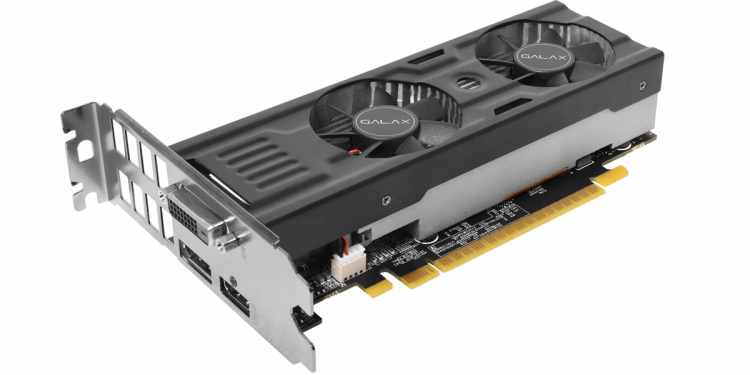

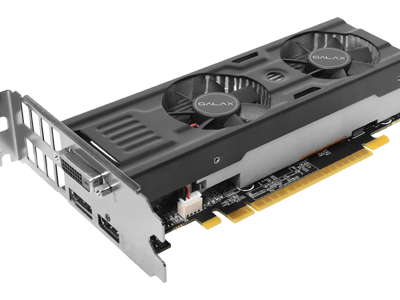

GALAX released low-profile versions of their GTX 1050 and GTX 1050 Ti graphics cards thus expanding the brand’s GTX 10-Series line up. Both the GALAX GeForce GTX 1050 OC LP and GTX 1050 Ti OC LP cards are only 68 mm in height, half the size of a typical GTX 1050 card variant. With such size, the cards are ideal for small form factor builds. Even with a small and compact size, the efficient thermal solution comprising of dual fans and pure copper base heat sink does an excellent heat dissipation. The GALAX GeForce GTX 1050 OC LP and GTX 1050 Ti OC LP offer efficient cooling with full load temperatures of 60-degrees Celsius and idle temperatures of only 34-degrees Celsius. The cards also offer a wide selection of connectivity including DisplayPort 1.4, HDMI 2.0B and DVI-D.
Key Features

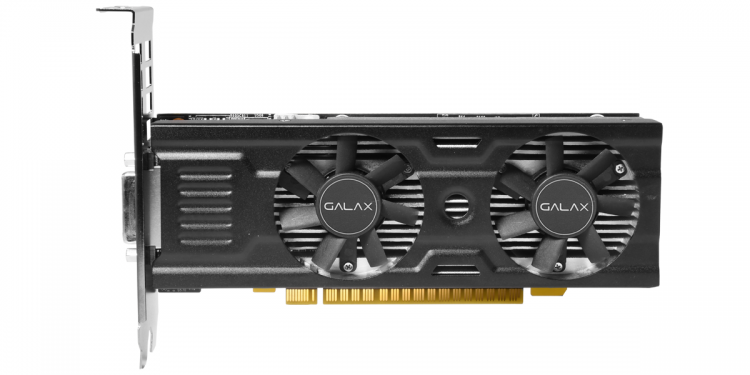

Efficient Thermal Solution
Equipped with a pure copper base and dual fans, the GALAX GTX 1050 OC LP and GTX 1050 Ti OC LP cards can achieve a highly-efficient heat dissipation, enable the graphic card to maintain consistent performance at all times.

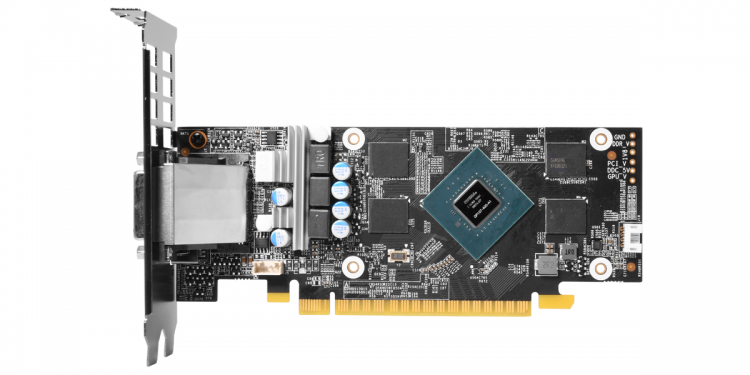

Extraordinary PCB Design
High-quality components are used to craft the PCB along with the optimization of electrical circuit, the performance of which is overwhelmingly better.
Powerful Components, Superior Quality.
The GALAX GTX 1050 OC LP and GTX 1050 Ti OC LP feature a 2+1 phase power supply, 2 phase responsible for core and 1 phase for memory. This ensures the graphics card’s stable performance.

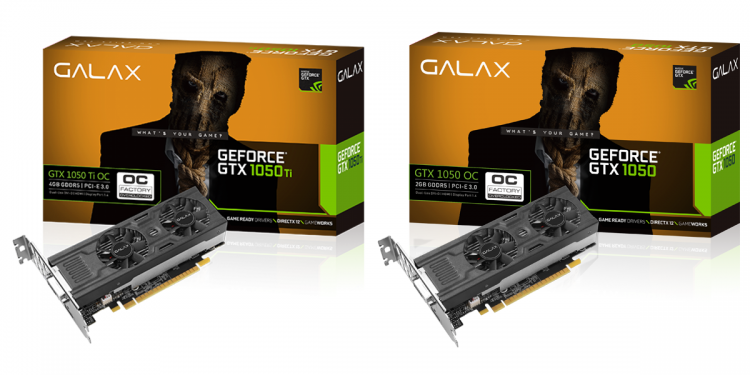

Product Gallery
GALAX GTX 1050 Ti OC LP Specifications
GPU Engine Specs:
– Base Clock (MHz): 1303
– Boost Clock (MHz): 1417
Memory Specs:
– Memory Speed: 3504 (7008) Mhz
– Standard Memory Config: 4096MB
– Memory Interface Width: 128-bit DDR5
– Memory Bandwidth (GB/sec): 112
Feature Support:
– OpenGL: 4.5
– Bus Support: PCI-E 3.0
– Certified for Windows 8: Yes
– Supported Technologies: DirectX 12
Display Support:
– Multi Monitor: 3 Displays
– Maximum Digital Resolution: 4096×2160@60Hz
– HDCP: Yes
– HDMI: Yes
– Standard Display Connectors: DP 1.4, HDMI 2.0b, Dual Link-DVI
Standard Graphics Card Dimensions:
– Dimensions(with Bracket): 182*121*39mm
– Dimensions(without Bracket): 166*69*34mm
Power Specs:
– Maximum Graphics Card Power (W): 75W
– Minimum System Power Requirement (W): 300W
Model:
– Product Code: 50IQH8DSP2MN
GALAX GTX 1050 OC LP Specifications
GPU Engine Specs:
– Base Clock (MHz): 1366
– Boost Clock (MHz): 1468
Memory Specs:
– Memory Speed: 3504 (7008) Mhz
– Standard Memory Config: 2048MB
– Memory Interface Width: 128-bit DDR5
– Memory Bandwidth (GB/sec): 112
Feature Support:
– OpenGL: 4.5
– Bus Support: PCI-E 3.0
– Certified for Windows 8: Yes
– Supported Technologies: DirectX 12
Display Support:
– Multi Monitor: 3 Displays
– Maximum Digital Resolution: 4096×2160@60Hz
– HDCP: Yes
– HDMI: Yes
– Standard Display Connectors: DP 1.4, HDMI 2.0b, Dual Link-DVI
Standard Graphics Card Dimensions:
– Dimensions(with Bracket): 182*121*39mm
– Dimensions(without Bracket): 166*69*34mm
Power Specs:
– Maximum Graphics Card Power (W): 75W
– Minimum System Power Requirement (W): 300W
Model:
– Product Code: 50NPH8DSP2MN
Product Pages:
GALAX GTX 1050 Ti OC LP
GALAX GTX 1050 OC LP
