GIGABYTE revealed its new addition to its GTX 1080 graphics card line-up, the GeForce GTX 1080 Xtreme Gaming WATERFORCE WB 8G.
GIGABYTE revealed its new addition to its GTX 1080 graphics card line-up, the GeForce GTX 1080 Xtreme Gaming WATERFORCE WB 8G.
GIGABYTE revealed its new addition to its GTX 1080 line-up, the GeForce GTX 1080 Xtreme Gaming WATERFORCE WB 8G graphics card. This graphics card combines Pascal architecture with GIGABYTE’s WATERFORCE Water Block cooling system. It features an open-loop liquid cooling full-cover water block that’s designed to fit in standard custom liquid cooling setups. The GIGABYTE GeForce GTX 1080 Xtreme Gaming WATERFORCE WB 8G features customizable RGB lighting, premium quality components and VR-optimized connectivity.

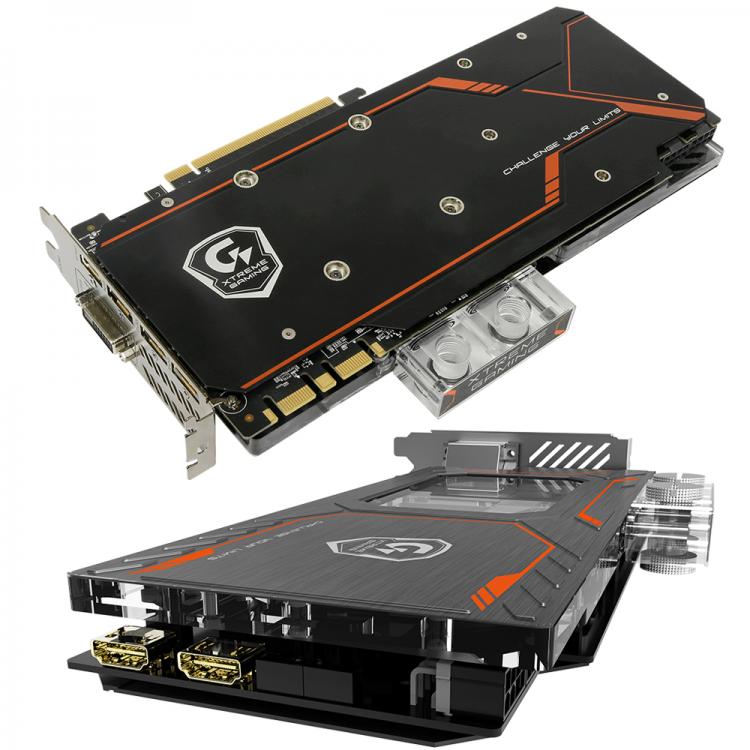

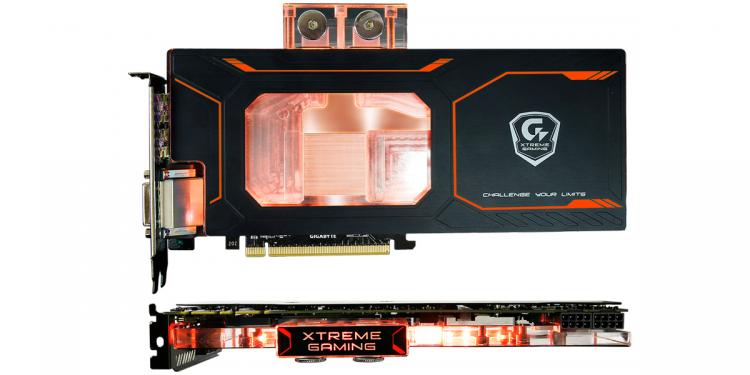

The GIGABYTE GTX 1080 Xtreme Gaming WATERFORCE WB 8G’s full-cover water block has a large copper base plate that directly cools the GPU core and cools surrounding critical components of the graphics card as well. The GTX 1080 features a 12+2 power phase and clocked to 1936Mhz in OC mode. The high-performance cooling engine of the GTX 1080 ensures stability even at OC mode.
Features
Powered by GeForce GTX 1080
WATERFORCE Water Block cooling system
Xtreme VR Link provides the best VR experience
16.8M customizable color lighting
Stylish Metal Back Plate
Titan X-grade Chokes and Capacitors for Extreme Durability
Intuitive Xtreme Engine
Xtreme Care provides 4 years warranty (Online registration required)
Core
Boost: 1936 MHz / Base: 1784 MHz in OC mode
Boost: 1898 MHz / Base: 1759 MHz in Gaming mode
Specifications
Graphics Processing: GeForce® GTX 1080
Memory Clock:
– OC mode: 10400 MHz
– Gaming mode: 10206 MHz
Process Technology: 16 nm
Memory Size: 8 GB
Memory Bus: 256 bit
Card Bus: PCI-E 3.0 x 16
Memory Type: GDDR5X
DirectX: 12
OpenGL : 4.5
PCB Form: ATX
Digital max resolution: 7680×4320@60Hz
Multi-view: 4
I/O: Standard mode (Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1)
VR mode: (Dual-link DVI-D*1, DP*1, HDMI*3)
Recommended PSU: 500W ( WITH TWO 8-Pin EXTERNAL POWER CONNECTOR)
Powered by GeForce GTX 1080
WATERFORCE Water Block cooling system
Xtreme VR Link provides the best VR experience
16.8M customizable color lighting
Stylish Metal Back Plate
Titan X-grade Chokes and Capacitors for Extreme Durability
Intuitive Xtreme Engine
Xtreme Care provides 4 years warranty (Online registration required)
Core
Boost: 1936 MHz / Base: 1784 MHz in OC mode
Boost: 1898 MHz / Base: 1759 MHz in Gaming mode
Specifications
Graphics Processing: GeForce® GTX 1080
Memory Clock:
– OC mode: 10400 MHz
– Gaming mode: 10206 MHz
Process Technology: 16 nm
Memory Size: 8 GB
Memory Bus: 256 bit
Card Bus: PCI-E 3.0 x 16
Memory Type: GDDR5X
DirectX: 12
OpenGL : 4.5
PCB Form: ATX
Digital max resolution: 7680×4320@60Hz
Multi-view: 4
I/O: Standard mode (Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1)
VR mode: (Dual-link DVI-D*1, DP*1, HDMI*3)
Recommended PSU: 500W ( WITH TWO 8-Pin EXTERNAL POWER CONNECTOR)
Visit the GIGABYTE website for more information on the GeForce GTX 1080 Xtreme Gaming WATERFORCE WB 8G graphics card.
