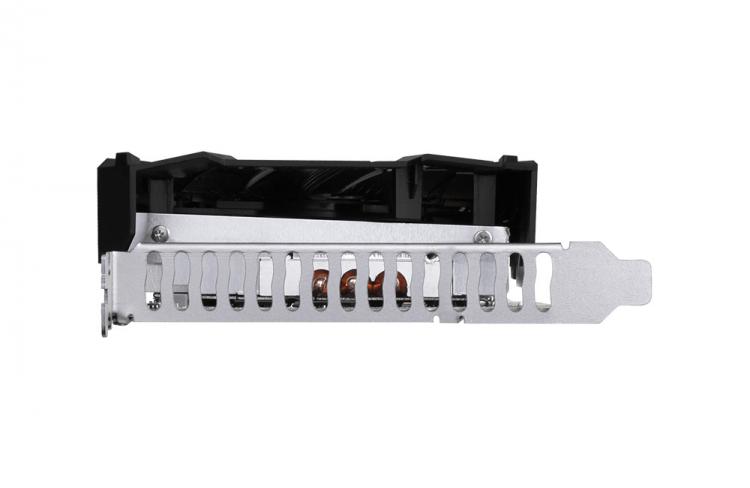

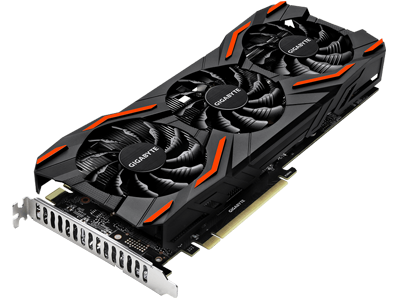

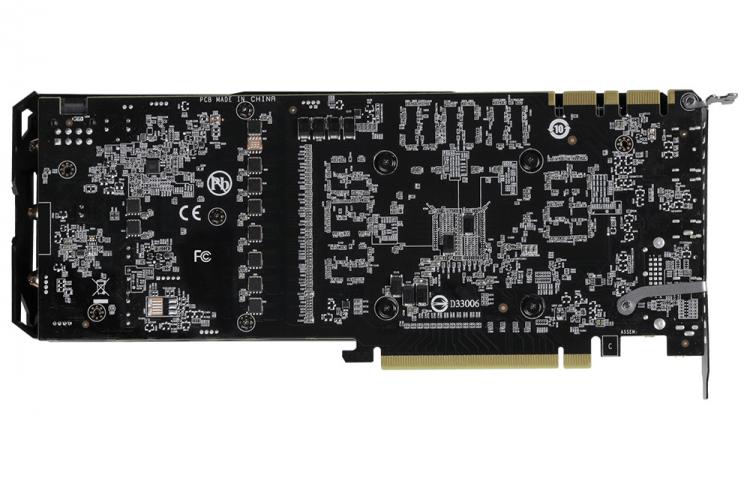

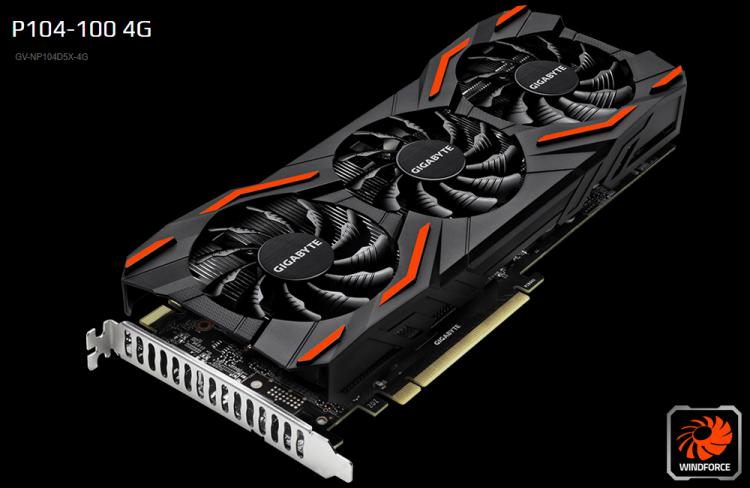

GIGABYTE outs the GV-NP104D5X-4G under the Mining Series cards powered by the NVIDIA P104-100 integrated with 4GB GDDR5X 256bit memory. The GIGABYTE GV-NP104D5X-4G features the WINDFORCE 3X with Blade Fan Design, GIGABYTE’s first mining card to sport a triple-fan cooling engine. It runs with a boost clock of 1733MHz and base clock of 1607MHz. Like most mining-oriented graphics cards, the GV-NP104D5X-4G doesn’t have output ports in its rear I/O shield and doesn’t have a back plate to keep prices down and competitive, making it significantly cheaper than the GeForce GTX 1060 and 1070 offerings. It also uses a single 8-pin PCIe power connector.
WINDFORCE 3X Cooling System

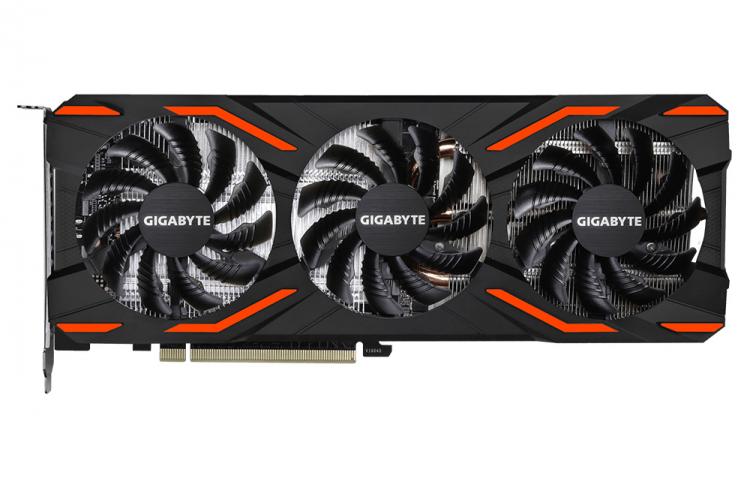

To withstand 24/7 mining operation, GIGABYTE uses WINDFORCE 3X Cooling Design for the GV-NP104D5X-4G. It packs three fans with the unique Blade Fan Design that generates 23% more airflow compared to traditional fans which equate to improved cooling performance. It also features composite heat pipes that further increase cooling capacity by 29%. The pure copper heat pipes then touch directly to the GPU to maximize heat dissipation.
Ultra-Durable
GIGABYTE GV-NP104D5X-4G uses GIGABYTE’s ultra-durable components that deliver outstanding performance and components that last. GIGABYTE also packs the mining card with an 8+2 power phase design offering lower MOSFET temperatures and more stable voltage output.
Specifications
Graphics Processing: NVIDIA P104-100
Core Clock: Boost: 1733 MHz / Base: 1607MHz
CUDA® Cores: 1920
Process Technology: 16 nm
Memory Clock: 10010 MHz
Memory Size: 4 GB
Memory Type: GDDR5X
Memory Bus: 256 bit
Card Bus: PCI-E 1.1 x4
PCB Form: ATX
DirectX: 12
OpenGL : 4.5
Power Connectors: 8pin*1
TGP: 180W-225W
Graphics Processing: NVIDIA P104-100
Core Clock: Boost: 1733 MHz / Base: 1607MHz
CUDA® Cores: 1920
Process Technology: 16 nm
Memory Clock: 10010 MHz
Memory Size: 4 GB
Memory Type: GDDR5X
Memory Bus: 256 bit
Card Bus: PCI-E 1.1 x4
PCB Form: ATX
DirectX: 12
OpenGL : 4.5
Power Connectors: 8pin*1
TGP: 180W-225W
Warranty
Unlike the GeForce graphics card series, the GIGABYTE Mining Series cards are only covered by a 3-month limited warranty.
For more information, visit the product page at https://www.gigabyte.com/Graphics-Card/GV-NP104D5X-4G
