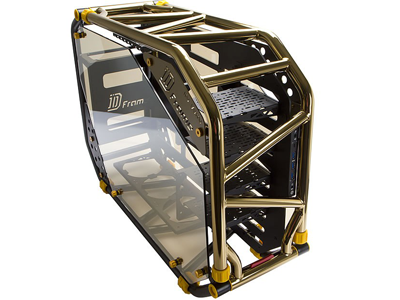

In Win’s upgraded signature chassis, the D-Frame 2.0, is now available worldwide in celebration of the company’s 30th anniversary. The In Win D-Frame 2.0 is inspired by an off-road motorcycle with its handcrafted steel structure. The all-new and improved D-Frame 2.0 has an innovative two-way opening mechanism. It has a quick release fastener to open the chassis to access the interior for easy hardware installation. The motherboard tray is TIG or tungsten inert gas welded into the frame then sandblasted to achieve a unique metallic texture.
Like the previous generation D-Frame open-chassis, the D-Frame 2.0 also has the signature tempered glass side panels locked by thumbscrews. The D-Frame 2.0 has a layout optimized for water cooling setups and high-end hardware components. The D-Frame 2.0 features a new flexible internal layout wherein the multifunctional storage brackets can house both 2.5-inch and 3.5-inch drives as well as water cooling components such as the pump and reservoir. The D-Frame 2.0 can support motherboard form factors as small as a micro-ATX up to an Extended-ATX. CPU coolers can be as tall as 165mm and graphics cards can be as long as 415mm. The I/O panels of the D-Frame 2.0 consists of 3 x USB 3.0 ports, stereo audio ports and a USB 3.1 USB Type-C port.

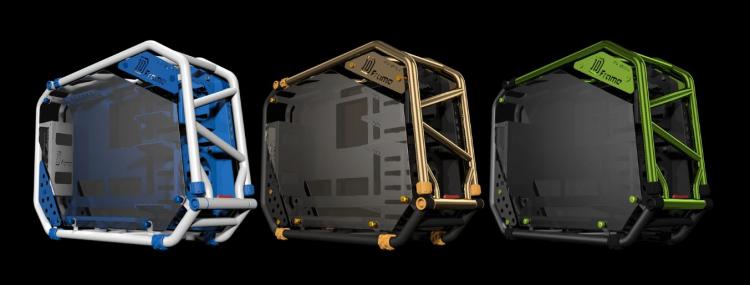

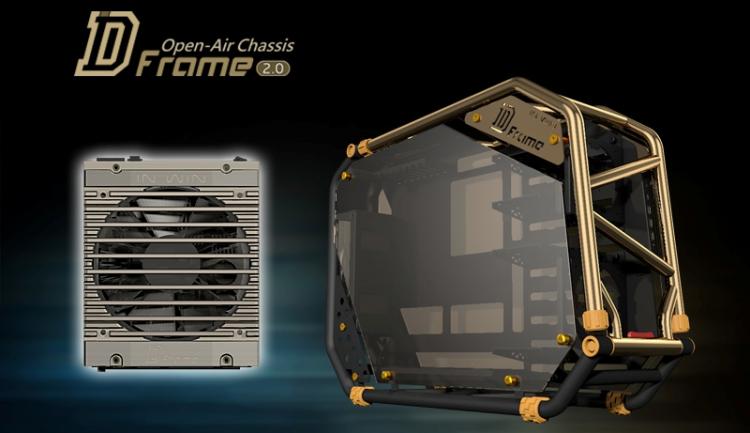

The In Win D-Frame 2.0 is paired with a power supply, In Win’s SIII-1065W PSU with efficiency of up to 92%, premium 105-degrees Celsius Japanese aluminum electrolytic capacitors cooled with a 165mm smart fan with enabled silent operation. The D-Frame 2.0 comes in three colors: Black/Gold Platinum, White/Blue and Black/Green.
See the full specifications of the In Win D-Frame 2.0 below.
Specifications
Model: D-Frame 2.0
Color: Black/Gold Platinum, White/Blue, Black/Green
Case Type: Open-Air Chassis
Case Material: Reinforced Steel Tube, Aluminium, Tempered Glass
M/B Compatibility: 12″ x 13″ E-ATX, ATX, Micro-ATX
Expansion Slots: 8 x PCI-E Slots
Maximum Compatibility:
VGA Card Length: 350-415mm (Depends on Mounting Configuration)
VGA Card Height: 173mm (Motherboard Die Surface to Side Panel)
CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel)
Front Ports: 1 x USB 3.1 Type-C, 3 x USB 3.0, HD Audio
Internal Drive Bays: 4 x 2.5“/3.5” Multifunctional Brackets
Thermal Solution Compatibility:
2 x 120mm Fan Brackets (Supports 2 x 120mm Fans)
1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans)
Supports 1 x 360mm Radiator
– Front: 90mm Maximum Height Including Fan
– Bottom: 65mm Maximum Height Including Fan
Power Supply Compatibility: SIII-1065W Internal PSU Included / ATX12V and EPS12V
– Dimension(L x W x H): 210 x 180 x 96 mm

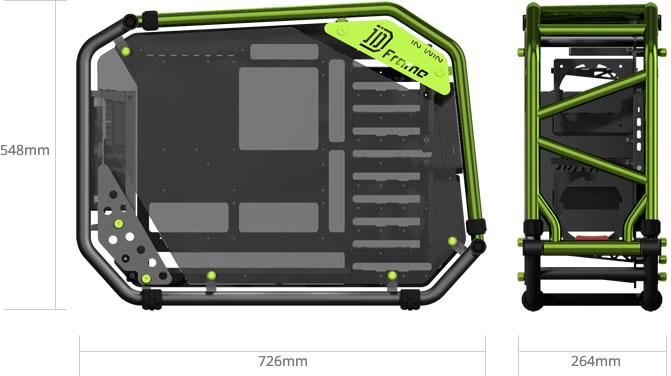

Product Dimension (H x W x D): 548 x 264 x 726 mm / 21.6” x 10.4” x 28.6”
Product Dimension (H x W x D) with screw height: 548 x 291 x 726 mm / 21.6″ x 11.5″ x 28.6″
Package Dimension (H x W x D): 760 x 346 x 842 mm / 29.9″ x 13.6″ x 33.1″
Net Weight: 22.5kg/49.5lbs
Gross Weight: 25.5kg/56.1lbs
Model: D-Frame 2.0
Color: Black/Gold Platinum, White/Blue, Black/Green
Case Type: Open-Air Chassis
Case Material: Reinforced Steel Tube, Aluminium, Tempered Glass
M/B Compatibility: 12″ x 13″ E-ATX, ATX, Micro-ATX
Expansion Slots: 8 x PCI-E Slots
Maximum Compatibility:
VGA Card Length: 350-415mm (Depends on Mounting Configuration)
VGA Card Height: 173mm (Motherboard Die Surface to Side Panel)
CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel)
Front Ports: 1 x USB 3.1 Type-C, 3 x USB 3.0, HD Audio
Internal Drive Bays: 4 x 2.5“/3.5” Multifunctional Brackets
Thermal Solution Compatibility:
2 x 120mm Fan Brackets (Supports 2 x 120mm Fans)
1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans)
Supports 1 x 360mm Radiator
– Front: 90mm Maximum Height Including Fan
– Bottom: 65mm Maximum Height Including Fan
Power Supply Compatibility: SIII-1065W Internal PSU Included / ATX12V and EPS12V
– Dimension(L x W x H): 210 x 180 x 96 mm
Product Dimension (H x W x D): 548 x 264 x 726 mm / 21.6” x 10.4” x 28.6”
Product Dimension (H x W x D) with screw height: 548 x 291 x 726 mm / 21.6″ x 11.5″ x 28.6″
Package Dimension (H x W x D): 760 x 346 x 842 mm / 29.9″ x 13.6″ x 33.1″
Net Weight: 22.5kg/49.5lbs
Gross Weight: 25.5kg/56.1lbs
Product Video
For more information, see the D-Frame 2.0 at the In Win website.
