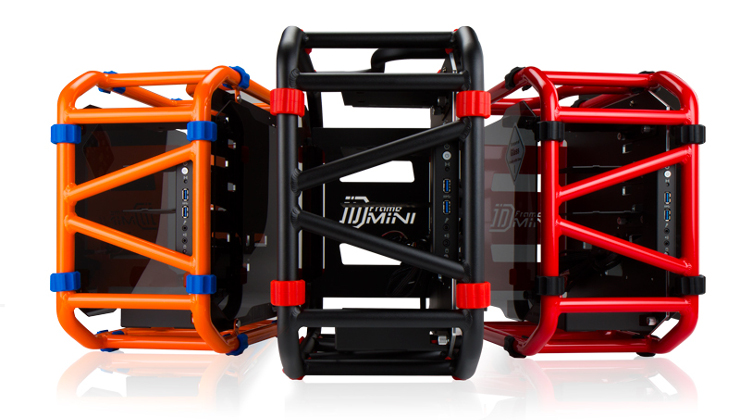

Mini-ITX variant of the original D-Frame has a very different look to a typical closed-case design.
Mini-ITX variant of the original D-Frame has a very different look to a typical closed-case design.
PRESS RELEASE
Taoyuan, Taiwan, September 2014 – In Win Development Inc., a leading innovator in PC design and winner of internationally renowned design awards, has today announced availability of its new D-Frame mini, premium mini-ITX PC chassis.
Continuing an Iconic Design for Mini-ITX
The D-Frame mini is built using the same hand-crafted, welded 4mm aluminum construction technique, with 3mm tinted tempered glass side panels, like the original ATX D-Frame, however the smaller chassis has been redesigned specifically for mini-ITX motherboards. Its 16 shock-proof rubber stands and glass panels mounting inside the frame mean it can be sat on any side.
It is ideal for those seeking a unique, stand-out case that’s easy to carry thanks to its integrated carry handle and ultra-rigid construction; making it great for LAN party goers and those special PC builds.
Packing Big Power in Small Size
Its small size still grants powerful hardware, with support for up to 340mm dual-slot graphics cards, 220mm PSUs, a 240mm water cooling radiator and a CPU heatsink up to 165mm overhead height with 2x120mm fans providing chassis cross-flow. Storage potential is also greater than other mini-ITX chassis, offering up to five 2.5 inch bays or three 3.5 inch plus two 2.5 inch bays. Front IO includes two USB 3.0 ports and 3.5mm audio stereo and microphone jacks.
D-Frame mini will be available in three colors with matt black version released to the market firstly.
Specifications
Case Type:- Open-Air Chassis
Material:- Aluminum Pipes, 4mm Aluminum Motherboard Plate, Tempered Glass
Internal Drive Bay:- 3.5” or 2.5” x 3 , 2.5” x 2
M/B Form Factor:- Mini-ITX
Power Supply:- ATX12V, PSII and EPS Up to 220mm
I/O Port:- USB 3.0 x 2, HD Audio
I/O Expansion Slots:- PCI-E Slot x 2, Supports High-end Graphic Cards (up to 340mm)
Thermal Solution:
– 120mm Bottom Fan x 2
– 240mm Liquid Cooling Radiator
– CPU Heatsink (Up to 165mm)
Dimensions (H x W x D):- 405 x 230 x 501mm (16” x 9” x 19.7”)
Net Weight:- 5.25 kg
Gross Weight:- 7.22 kg
Material:- Aluminum Pipes, 4mm Aluminum Motherboard Plate, Tempered Glass
Internal Drive Bay:- 3.5” or 2.5” x 3 , 2.5” x 2
M/B Form Factor:- Mini-ITX
Power Supply:- ATX12V, PSII and EPS Up to 220mm
I/O Port:- USB 3.0 x 2, HD Audio
I/O Expansion Slots:- PCI-E Slot x 2, Supports High-end Graphic Cards (up to 340mm)
Thermal Solution:
– 120mm Bottom Fan x 2
– 240mm Liquid Cooling Radiator
– CPU Heatsink (Up to 165mm)
Dimensions (H x W x D):- 405 x 230 x 501mm (16” x 9” x 19.7”)
Net Weight:- 5.25 kg
Gross Weight:- 7.22 kg
For more information about the new D-Frame Mini, please visit In Win at: http://www.inwin-style.com
