Lian Li PC-Q37 Mini Tower Case with Tempered Glass Window

Lian Li introduces the PC-Q37 dual-chamber mini tower case with a beautifully crafted tempered glass window.

Lian Li introduces the PC-Q37 dual-chamber mini tower case with a beautifully crafted tempered glass window.

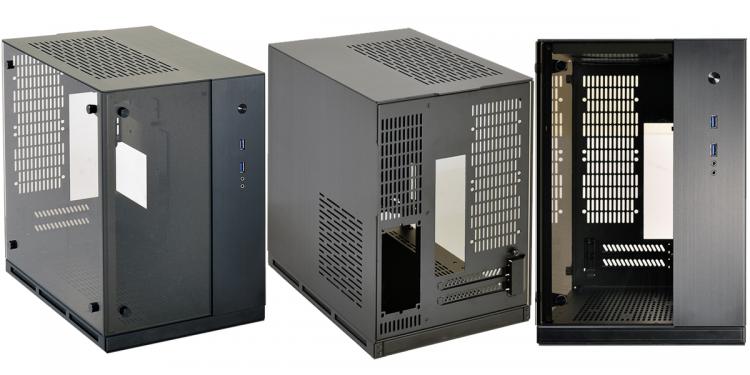

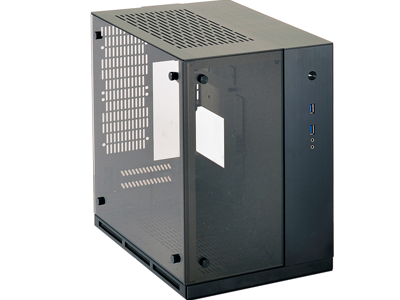

Lian Li introduces the PC-Q37 dual-chamber mini tower case with a beautifully crafted tempered glass window. The Lian Li PC-Q37 is promised to be the best of the Q-Series and O-Series cases and to set a new standard for small form factor PC cases. The PC-Q37 features a very workable dual-chamber layout with excellent cooling support without taking too much space on your desk. It has two USB 3.0 ports and a set of audio port on the front I/O panel.

Key Features
Small Form Factor – Dual Chamber Benefits

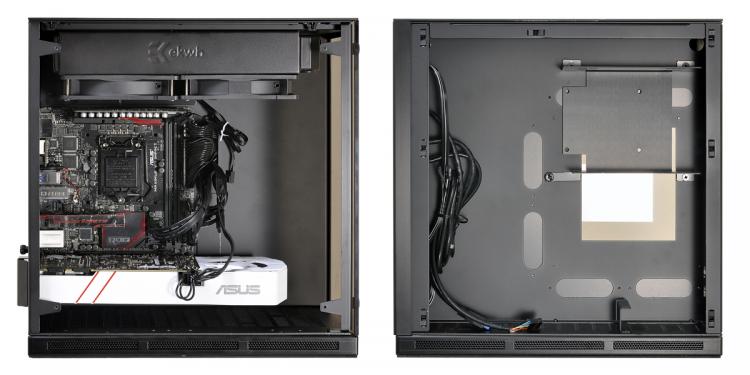

The PC-Q37 has a similar layout with the PC-09 and PC-10 cases having a dual-chamber design. It splits the case’s interior into two compartments that doesn’t only tidy up the build but also makes a more efficient cooling. The feature chamber has the tempered glass window with the motherboard, expansion card and cooling in front. The rear chamber has the drives and power supply. The dual-chamber layout makes good cable management.

Designed for High-end Enthusiast Builds
The Lian Li PC-Q37 supports a mini-itx motherboard form factor but can accommodate graphics cards as long as 320mm and install CPU coolers as tall as 130mm. The main compartment has four mounts for 120mm fans and has radiator support for 300mm or 120mm or 80mm.

Premium Build Quality
The Lian Li PC-Q37 doesn’t compromise in quality. The rear compartment’s drive bays has a rubber vibration-dampening rack that supports either one 3.5-inch HDD or two 2.5-inch drives. The case has an all-aluminum construction with a beautifully crafted tempered glass panel with removable and washable mesh filters on the fan intake mounts.

Specifications
Model: PC-Q37
Case Type: Mini Tower Chassis
Dimensions
– (W)237mm
– (H)345mm
– (D)346mm
Color: Black
Front Panel: Tempered Glass
Side Panel: Tempered Glass
Body Material: Aluminum
Net Weight: 5.25kg
5.25″ drive bay (External): None
3.5″ drive bay (External): None
HDD bay:
– 3.5″ HDD x2
– 2.5″ HDD x2
Expansion Slot: 2
M/B Type: Mini-ITX
System Fan (Optional):
– 120mm fan x2 (Top)
– 80mm fan x2 (Rear)
– 120mm fan x2 (Bottom)
I/O Ports
– USB3.0 x2
– HD Audio
Maximum Compatibility:
– VGA Card length: 320mm
– PSU length: 220mm
– CPU cooler height: 130mm
Space of Radiator: 300mm x 80mm x 120mm
PSU Type: SFX PSU (Optional)

The Lian Li PC-Q37 will soon be available at Overclockers UK. Visit the Lian Li website for more details on the PC-Q37 mini tower case.
