Lian Li Unveils The Capacious PC-V1000L Chassis

Accommodating motherboards up to a massive XL-ATX, the PC-V1000L can hold pretty much any high-end hardware any enthusiast desires.

Accommodating motherboards up to a massive XL-ATX, the PC-V1000L can hold pretty much any high-end hardware any enthusiast desires.

PRESS RELEASE

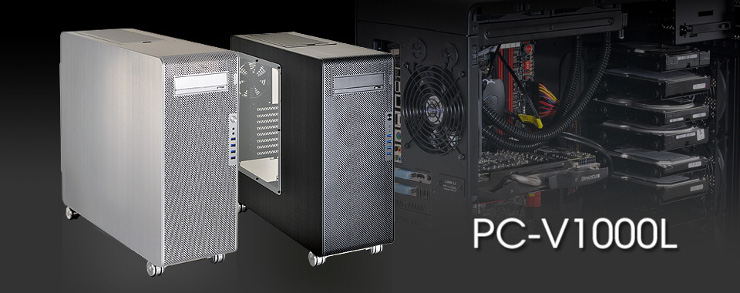

September 2, Keelung, Taiwan – Lian-Li Industrial Co. Ltd today announces the PC-V1000L Special Edition full tower chassis. This brushed aluminum chassis features a ventilated front providing high airflow while featuring the high-end versatile tool-less designs for which Lian Li is known.

Short Full Tower with Full Hardware Support

With a height of only 551mm (21.7”), the 74L PC-V1000L can hold the hardware a PC enthusiast desires, including: motherboards up to EATX, the largest graphics cards, and extensive water cooling support.

Individually Removable Hard Drive Bays

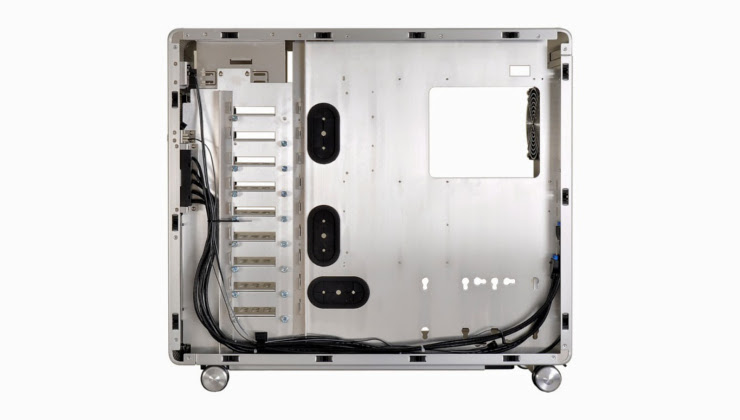

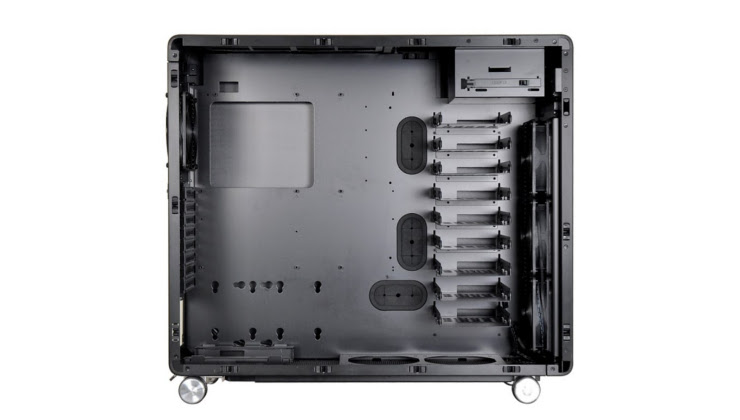

DIY enthusiasts are able to individually mount/remove the 9 HDD bays according to their build preference. Each bay allows for a 3.5” or 2.5” drive to be tool-lessly mounted. For more storage potential one 3.5” drive or two 2.5” drives can be mounted behind the motherboard tray.

Extensive Cooling

Three 120mm fans pull cool air through the ventilated front panel. These front fans are attached to a removable bracket that slides out for easy maintenance.

At the bottom of the chassis a removable bracket secured by a single thumbscrew allows for two 120mm fans or a 240 radiator to be installed. At the top of the chassis a tool-lessly removable top panel allows for two 120mm/140mm fans or a 240/280mm radiator to be easily installed. A rear 120mm exhaust fan with two grommeted holes pulls hot air out of the chassis.

Wheels for Easy Maneuverability

The wheels design enables easy moving of a fully loaded system. A locking mechanism on the rear wheels prevents the chassis moving when set in place.

Connectivity

The I/O panel is located at the front of the chassis and contains 4 USB 3.0 ports and HD audio connections.

Technical Specifications

Model:- PC-V1000L/A/B/WX
Case Type:- Full Tower Chassis
Dimensions:- (W) 220mm, (H) 551mm, (D) 611mm

Color Options:- Black / Silver / All black with window
Front bezel Material:- Aluminum
Side Panel:- Aluminum
Body Material:- Aluminum
Net Weight:- 9.3kg

5.25″ drive bay (External):- 1
HDD bay:- 3.5″ HDD or 2.5″ HDD x 9 + 2.5″ HDD x2 or 3.5″ HDD x1
Expansion Slot:- 8
Motherboard:- XL-ATX, E-ATX, ATX, Micro-ATX

System Fan (Front):- 120mm Fan x 3
System Fan (Rear):- 120mm Fan x 1
System Fan (Top):- 140mm or 120mm Fan x2 (Optional)
System Fan (Bottom):- 120mm Fan x 2 (Optional)

I/O Ports:- USB3.0 x 4, HD Audio

Maximum Compatibility:
– VGA Card length: 380mm-520(max)
– PSU length: 240mm
– CPU cooler height: 170mm

PSU ATX(Optional)

Price and Availability

The PC-V1000L will be available in black PC-V1000LA (Silver), PC-V1000LB (Black) and PC-V1000LWX (Internal Black with Window) in the UK for the suggested retail price of £219 and £239 respectively.

More product information and pictures can be found here: http://www.lian-li.com/en/dt_portfolio/pc-v1000L/

Video overview:
