An All-in-One PC built for gamers and featuring the very latest technologies; including Intel Core i7-6700, GTX 980M, 16GB DDR4 and M.2 SSDs in Super RAID 4.
Product on Review GAMING 27 6QE
Manufacturer & Sponsor: MSI
Street Price: £1999 GBP / $2700 USD
The practise of building a customised computer system from a selection of components is a daunting task for some users and having the space to accommodate a prebuilt system from a system integrator can also be a hinderance for others and this is where the All-in-One PC comes in.
It isn’t common to see an All-in-One PC, in fact, looking around there are very few to choose from. But today we’ll be taking a look at a highly capable machine from MSI dubbed the GAMING 27 6QE. GAMING 27 blends together a lineup of the very latest technologies which include Intel’s Skylake, NVIDIA’s GTX 970M, 16GB DDR4 and M.2 SSDs in Super RAID 4. All of this hardware sits behind a 27” display for a neat, minimalist design.
MSI on their Gaming 27
MSI integrated all parts of a top performing gaming desktop into a high quality display, capable of playing your favorite PC games in high resolutions and frames-per-second. Built with the latest graphics cards technologies and integrated with some of the best audio features, the MSI gaming All-in-One PCs are made to impress both casual and hardcore gamers with stunning visuals and striking performance.
Technical Specifications
CPU
Intel® Core™ i7-6700 (3.4GHz, Turbo 4GHz)
OS
Windows 10 Home
Chipset
Intel® H170 Chipset
Memory
16GB DDR4 2133 SO-DIMM, 4 slots, Up to 32GB
Graphics
NVIDIA® GeForce® GTX 980M 8GB GDDR5
Panel Resolution
27” LED Backlight 1920 x 1080 with MSI Anti-Flicker & Less Blue Light Technology
HDD
2TB HDD 3.5” 7200RPM SATAIII x 1
M.2 PCI-E SSD 2x 128GB (RAID0)
Optical Drive
Tray-in DVD Super Multi / Blu-ray Writer (optional)
Audio
ESS SABRE HiFi audio DAC technology
Nahimic Audio Enhancer
LAN
Killer E2400 Game Networking
Wireless LAN
Killer Wireless-AC 1535
Bluetooth
1(4.1)
USB 3.1 port
1 (Type C) Gen2, 3 (1 with Super Charger) Gen1
Card Reader
3 in 1 (SD, MMC, MS)
Webcam
2M-pixel Full HD
Expansion Slot
M.2. x 3: (1)WiFi x1 (2)SSD x2 , Mini-PCI-E x 2
HDMI in
1
HDMI out
2
Mic-in/Headphone-out
1/1
AC Adapter
330W
Dimension(WxDxH)
672.23mm * 66mm * 482.9mm
Net Weight
16.16Kg
Gross Weight
18.54kg
Intel® Core™ i7-6700 (3.4GHz, Turbo 4GHz)
OS
Windows 10 Home
Chipset
Intel® H170 Chipset
Memory
16GB DDR4 2133 SO-DIMM, 4 slots, Up to 32GB
Graphics
NVIDIA® GeForce® GTX 980M 8GB GDDR5
Panel Resolution
27” LED Backlight 1920 x 1080 with MSI Anti-Flicker & Less Blue Light Technology
HDD
2TB HDD 3.5” 7200RPM SATAIII x 1
M.2 PCI-E SSD 2x 128GB (RAID0)
Optical Drive
Tray-in DVD Super Multi / Blu-ray Writer (optional)
Audio
ESS SABRE HiFi audio DAC technology
Nahimic Audio Enhancer
LAN
Killer E2400 Game Networking
Wireless LAN
Killer Wireless-AC 1535
Bluetooth
1(4.1)
USB 3.1 port
1 (Type C) Gen2, 3 (1 with Super Charger) Gen1
Card Reader
3 in 1 (SD, MMC, MS)
Webcam
2M-pixel Full HD
Expansion Slot
M.2. x 3: (1)WiFi x1 (2)SSD x2 , Mini-PCI-E x 2
HDMI in
1
HDMI out
2
Mic-in/Headphone-out
1/1
AC Adapter
330W
Dimension(WxDxH)
672.23mm * 66mm * 482.9mm
Net Weight
16.16Kg
Gross Weight
18.54kg
Unboxing & Closer Look Video
For this review we’ve produced a video which reveals the packaging, bundle and a close, detailed overview of the Gaming 27. Please check out the video below for a comprehensive look at this new product:
Benchmarks: Boot Time & Power Consumption
In our first test we observe how fast the boot into Windows 10 is by using a digital stopwatch. The power consumption is also an important observation which we report back via energy monitor socket while the system is fully loaded.

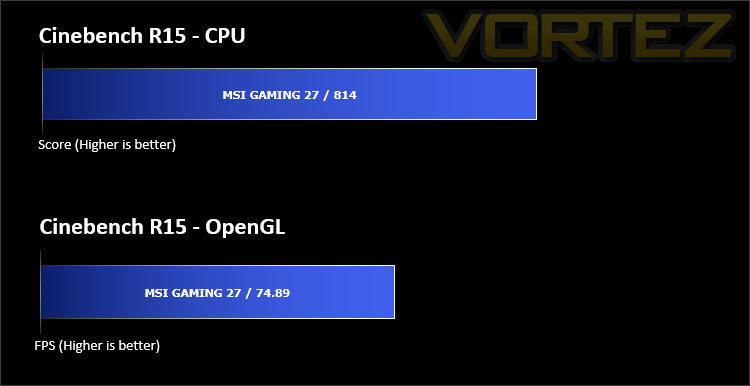

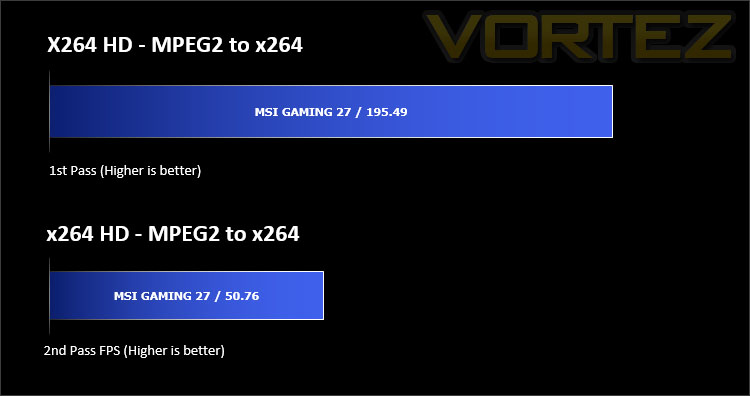

Benchmarks: Cinebench R15 & x264 HD
CINEBENCH can measure systems with up to 64 processor threads. This test scene contains approximately 2,000 objects which in turn contain more than 300,000 polygons in total, and uses sharp and blurred reflections, area lights, shadows, procedural shaders, antialiasing, and much more. The result is displayed in points (pts). The higher the number, the faster your processor is.

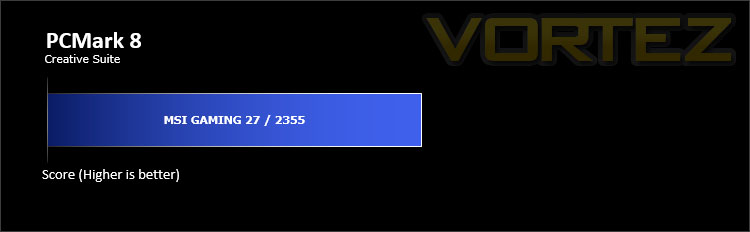

Benchmarks: PCMark 8
PCMark 8 combines performance benchmarking with battery life measurement and includes tests based on popular Adobe and Microsoft applications. Whether you are looking for long battery life, or maximum power, PCMark 8 will help you find the devices that offer the perfect combination of efficiency and performance for your needs. It’s the complete PC performance benchmark for home and business.
Benchmarks: 3DMark & Heaven 4.0
The new 3DMark includes everything you need to benchmark your hardware. With three all new tests you can bench everything from smartphones and tablets, to notebooks and home PCs, to the latest high-end, multi-GPU gaming desktops. And it’s not just for Windows. With 3DMark you can compare your scores with Android and iOS devices too. It’s the most powerful and flexible 3DMark we’ve ever created.

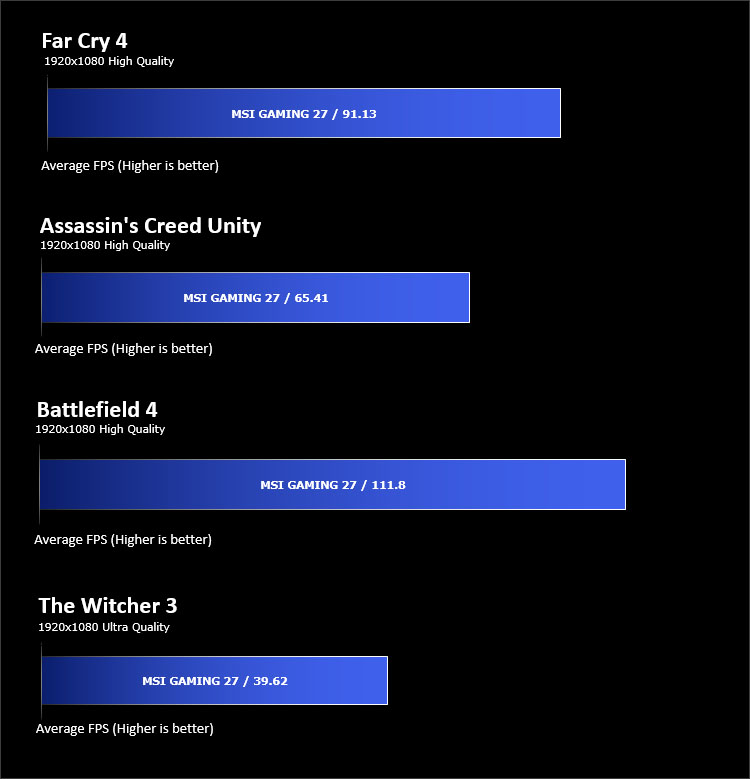

Benchmarks: Far Cry 4, Assassin’s Creed Unity, BF4, The Witcher 3
The MSI Gaming 27 uses the GTX 980M graphics delivery, in this section we test the latest gaming titles to see how effective the 3D capabilities are. We report on the average framerate using FRAPS.
Conclusion
This is the first time we’ve ventured into the world of All-in-One PCs and we’ve been mightily impressed by what Gaming 27 brings to the table. We’ve looked at gaming notebooks and mini-PCs but these products are a completely different ball-game altogether.
As a concept the All-in-One PC is a rather interesting one. While this type of product may not be for everyone, it does offer an alternative to either selecting a group of components and building a system or opting for a prebuilt solution from of the many etailers. The beauty with such a unit like Gaming 27 is that it will reside in the living room or office without taking up valuable space since everything is housed within the expanse of the display unit.
Delving inside Gaming 27 reveals a highly capable machine with an impressive lineup of components. At the heart of this system is the Intel Core i7-6700 – Intel’s latest Skylake architecture which as we’ve seen throughout the benchmarks, delivers brilliant compute/encoding performance. Combining this chip with the high-end NVIDIA GTX 980M will make light weight in any of the current blockbuster gaming titles. Applying the maximum detail preset in games at 1080p will supply a pleasing result with high frame rates.
Inside there is also a RAID 0 configuration with two M.2 SSDs; this maximises the bandwidth and provides astounding storage performance. The memory is also on-par with the rest of the configuration by giving 16GB DDR4 but what we especially like is that both these areas are versatile in that we can include more storage and greater amounts of memory.
An obvious omission with the bright and lively 27” display is 4K support. But given the fact that only ultra-high-end components can just about cope with 4K gaming, we can understand why MSI has decided to settle with 1080p – rather than struggle, it means that Gaming 27 can comfortably cater for the user while offering ultra-detail presets with all the trimmings, without compromising performance.
Arriving with a price-tag of £1999 GBP / $2700 USD, Gaming 27 is a considerable sum of money and it would really be unfair to take the components and compare to the desktop variety because the intended because of the intended use. This system focuses on convenience and is really a different beast altogether.
Boasting the very latest technology and compromising on little-to-nothing, the Gaming 27 6QE demonstrates how far All-in-One PCs have really come. This convenient unit packs in a solid lineup of components which translate to superb performance.
VIDEO REVIEW – VORTEZ TV
Pros
+ Minimalist design
+ Large 27” sharp, vibrant display
+ Skylake-powered
+ Comes with 16GB DDR4
+ Fast Storage: Dual-M.2 SSDs
+ Powerful graphics delivery
+ USB 3.1 Gen ½
+ Card slot reader
+ HDMI in/out ports
+ Convenient
+ Keyboard + mouse bundled
Cons
– Heavy
– 220-300W power consumption
+ Minimalist design
+ Large 27” sharp, vibrant display
+ Skylake-powered
+ Comes with 16GB DDR4
+ Fast Storage: Dual-M.2 SSDs
+ Powerful graphics delivery
+ USB 3.1 Gen ½
+ Card slot reader
+ HDMI in/out ports
+ Convenient
+ Keyboard + mouse bundled
Cons
– Heavy
– 220-300W power consumption
