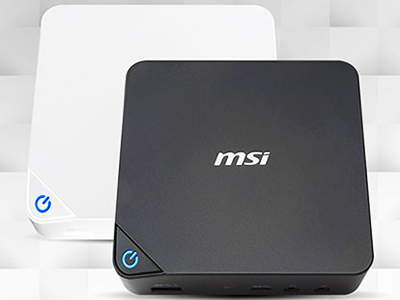

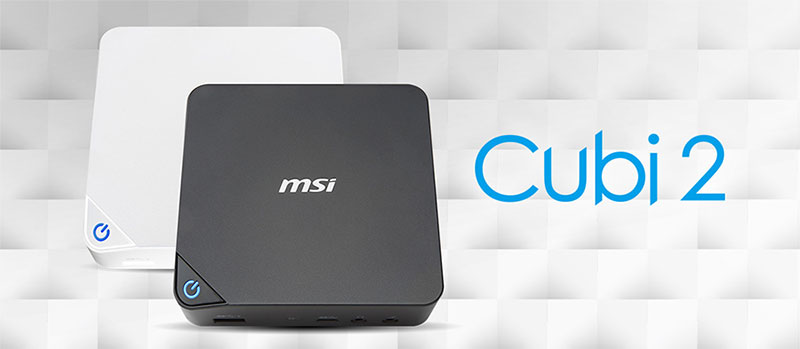

MSI upgrades its Cubi 2 mini PC for consumers and businesses with the latest Intel Kabylake-U processors.
MSI upgrades its Cubi 2 mini PC for consumers and businesses with the latest Intel Kabylake-U processors that feature improved energy efficiency compared to the previous generation Cubi 2. Now, users can now use a more powerful compact mini PC capable of accommodating multiple modular hard drives for data storage. The MSI Cubi 2 mini PC supports the standard VESA wall mounts so it can be easily installation at the back of your monitor or HDTV. The MSI Cubi 2 offers plenty of ports for external devices and peripherals. A white edition of the Cubi 2 will also be available.
Features
Small and Compact
The MSI Cubi 2 is the smallest mini PC you can find today. It only has a volume of 0.45L with features and capabilities similar to a desktop PC. It has a discreet ventilation system with the I/O ports conveniently positioned on both ends of the Cubi 2.
High Speed and Big Storage
The MSI Cubi 2 has two internal storage options; a 2.5-inch drive and a M.2 SSD slot. You can build the Cubi 2 with the an M.2 SSD boot drive with a 2.5-inch drive for storage. With SSD support, the Cubi 2 will provide high-speed data processing power.

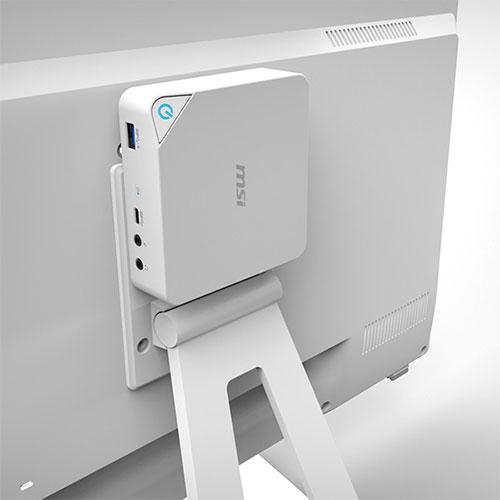

VESA Mount Support with UHD Display
The MSI Cubi 2 is an excellent HTPC with it having great support for high-definition content. The Cubi 2 also has dual display outputs, a HDMI and a mini display port so you can hook up two monitors at once if desired. The Cubi 2 also have standard VESA mounting support which enables the mini PC to be easily installed behind your display to minimize to use of space.
Specifications
Processors: Intel Kabylake Core i3-7100U / Core i5-7200U / Core i7-7500U
OS: Windows 10 Home
Chipset: Intel SoC
Graphics: Intel HD 500 Series Graphics
Memory: 2x slots for DDR4 SODIMM (2133Mhz up to 32GB)
Storage:
– 1x M.2 SSD
– 1 x 2.5-inch drive HDD or SDD
Wireless: Intel 3168 802.11 ac + BT4.2
I/O:
– Front: 2x Headphone out/Mic in, 1x USB 3.1 Gen1 Type-A, 1 x USB 3.1 Gen1 Type-C
– Rear: 1x HDMI out, 1x DP out, 1x RJ45 LAN port, 2x USB 3.1 Gen1 Type-A, 1x DC jack
Adapter: 65W
Dimension (WxHxD): 155.3mm x 147.9mm x 58.6mm
Processors: Intel Kabylake Core i3-7100U / Core i5-7200U / Core i7-7500U
OS: Windows 10 Home
Chipset: Intel SoC
Graphics: Intel HD 500 Series Graphics
Memory: 2x slots for DDR4 SODIMM (2133Mhz up to 32GB)
Storage:
– 1x M.2 SSD
– 1 x 2.5-inch drive HDD or SDD
Wireless: Intel 3168 802.11 ac + BT4.2
I/O:
– Front: 2x Headphone out/Mic in, 1x USB 3.1 Gen1 Type-A, 1 x USB 3.1 Gen1 Type-C
– Rear: 1x HDMI out, 1x DP out, 1x RJ45 LAN port, 2x USB 3.1 Gen1 Type-A, 1x DC jack
Adapter: 65W
Dimension (WxHxD): 155.3mm x 147.9mm x 58.6mm
