Nanoxia introduces the Special N.N.V. Fan series using a patented technology from the automobile industry used by German car manufacturers to circulate air in the seat heating of their cars. Using the said technology, Nanoxia creates the first virtually vibration-free PC fan in the world.

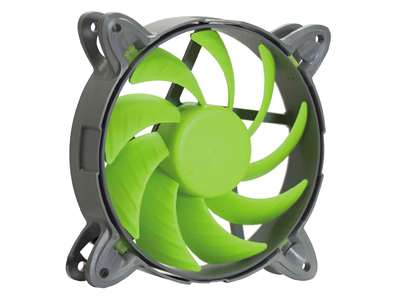

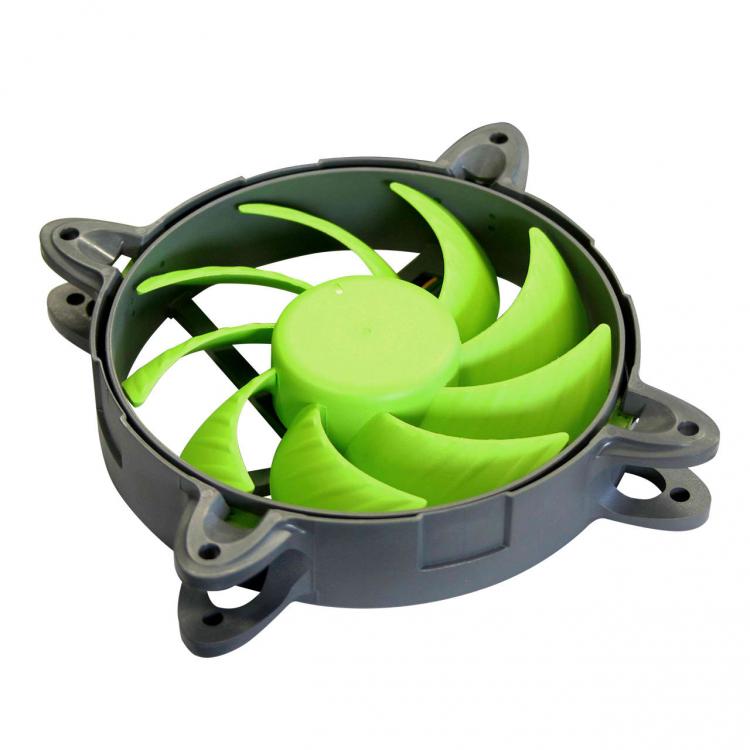

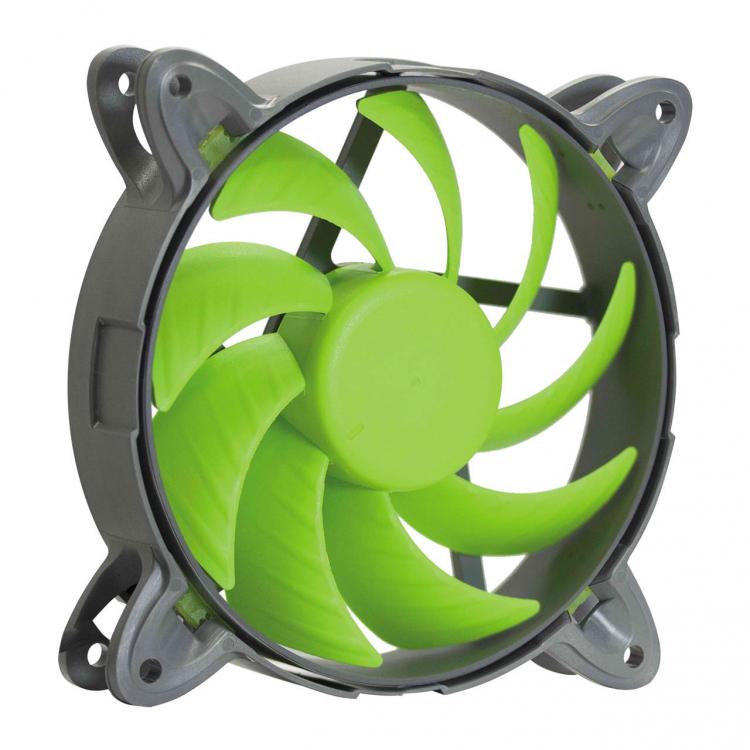

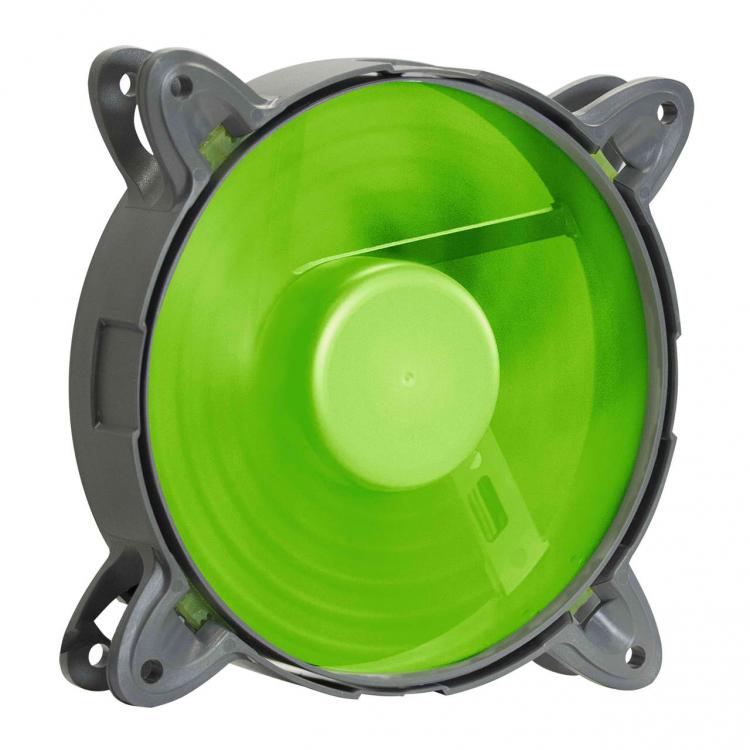

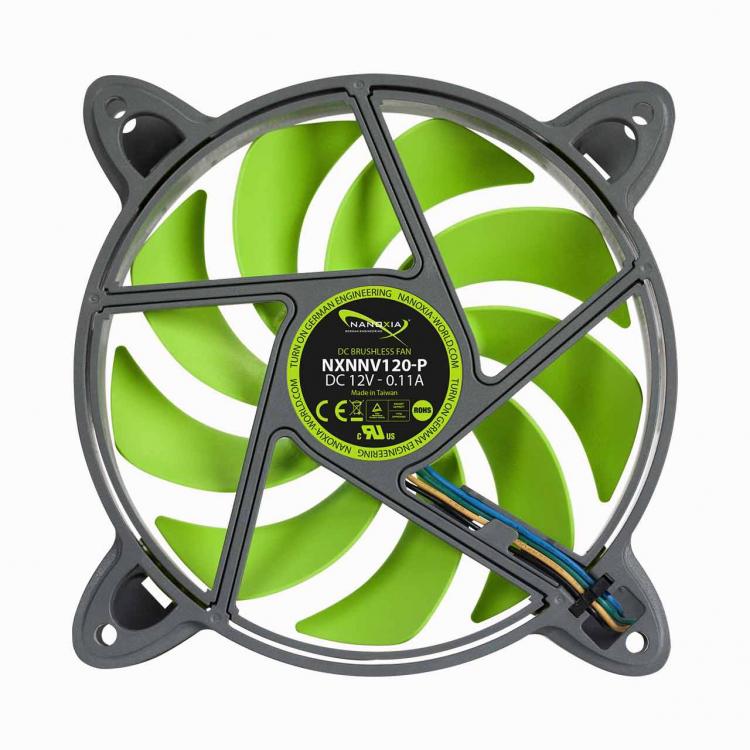

Vibration tends to cause noise particularly when a mechanical device is moving at high speeds. Nanoxia aims to solve this problem when it comes to PC cooling fans with the Special N.N.V. series. The Nanoxia Special N.N.V. fans consist of two different frames. The outer fan frame offers mounting points to install the fan inside a case or on a CPU-cooler. The inner impeller frame holds the rotor and the motor of the fan – it’s decoupled from the outer frame by four rubberized dampers. The entire design allows a very smooth and silent running operation of the Special N.N.V. fans.
The Nanoxia Special N.N.V. series uses durable plastic composite for the fan parts and a high-quality hydrodynamic bearing with a quiet and durable fan motor. The use of fluid dynamic bearings guarantees that the fans stay smooth running and whisper quiet all the time, even after years of operation. Included with the Special N.N.V. fan series are four push-pin bolts, which can easily be used to install the fan.
The Nanoxia Special N.N.V. fan series will consist of four 120 mm models. We expect them to become available in stores by the middle of February. The first model to reach us will be the Nanoxia Special N.N.V. Fan 120 PWM. Shortly thereafter the versions with 800, 1,200 and 2,000 rpm will follow. The technical data and the MSRP for all the models can be found below.
Specifications Special N.N.V. Fan Series
– Dimensions: 120 x 120 x 25 mm
– Rotation Speed: 400 – 1,650 rpm
– Voltage Range: 7 – 13.2 V
– Rated Current: 0.11 A
– Rated Power: 1.32 W
– Airflow: max. 52.6 cfm
– Acoustical Noise: max. 24.6 dB(A)
– Static Pressure: max. 1.38 mm-H²O
– Durability: 50,000 hours
– Bearing: Fluid Dynamic Bearing
– Connector: 4-Pin PWM
– MSRP: €21.99 incl. 19% VAT
– Dimensions: 120 x 120 x 25 mm
– Rotation Speed: 800 rpm
– Voltage Range: 9 – 13.2 V
– Rated Current: 0.03 A
– Rated Power: 0.36 W
– Airflow: max. 27.2 cfm
– Acoustical Noise: max. 6.1 dB(A)
– Static Pressure: max. 0.35 mm-H²O
– Durability: 50,000 hours
– Bearing: Fluid Dynamic Bearing
– Connector: 3-Pin Molex
– MSRP: €21.99 incl. 19% VAT
– Dimensions: 120 x 120 x 25 mm
– Rotation Speed: 1,200 rpm
– Voltage Range: 7 – 13.2 V
– Rated Current: 0.055 A
– Rated Power: 0.66 W
– Airflow: max. 44.7 cfm
– Acoustical Noise: max. 17.7 dB(A)
– Static Pressure: max. 0.91 mm-H²O
– Durability: 50,000 hours
– Bearing: Fluid Dynamic Bearing
– Connector: 3-Pin Molex
– MSRP: €21.99 incl. 19% VAT
– Dimensions: 120 x 120 x 25 mm
– Rotation Speed: 2,000 rpm
– Voltage Range: 7 – 13.2 V
– Rated Current: 0.17 A
– Rated Power: 2.04 W
– Airflow: max. 73.0 cfm
– Acoustical Noise: max. 29.0 dB(A)
– Static Pressure: max. 2.22 mm-H²O
– Durability: 50,000 hours
– Bearing: Fluid Dynamic Bearing
– Connector: 3-Pin Molex
– MSRP: €21.99 incl. 19% VAT
