NZXT announces the newest member to its Aer family of fans with Aer F. The NZXT Aer F is designed for maximized airflow, Aer F is designed to move air efficiently allowing even the most powerful systems to be cooled efficiently.
NZXT announces the newest member to its Aer family of fans with Aer F. The NZXT Aer F is designed for maximized airflow, Aer F is designed to move air efficiently allowing even the most powerful systems to be cooled efficiently.
NZXT announces the newest member to its Aer family of fans with Aer F. The NZXT Aer F is designed for maximized airflow, Aer F is designed to move air efficiently allowing even the most powerful systems to be cooled efficiently. The Aer F features the same chamfered intake and exhaust and winglet-designed fan blades found in Aer P radiator fans. The NZXT Aer F delivers powerful airflow with reduced drag minimizing resistance and vibration. Aer F features durable fluid dynamic bearings which further enhances cooling performance and durability.
NZXT Aer F Main Features
PWM fan designed for better airflow and near-silent performance.
Winglet constructed fan blades minimize drag, improving overall cooling.
Patented fluid dynamic bearings (FDB) deliver long-lasting operation. (60,000 hours / 6 years)
Sleeved cables for easy and clean cable management.
Replaceable color trim choices give builders the flexibility to customize their builds (sold separately)
PWM fan designed for better airflow and near-silent performance.
Winglet constructed fan blades minimize drag, improving overall cooling.
Patented fluid dynamic bearings (FDB) deliver long-lasting operation. (60,000 hours / 6 years)
Sleeved cables for easy and clean cable management.
Replaceable color trim choices give builders the flexibility to customize their builds (sold separately)
Cooling and Silence Optimized
The NZXT Aer F fans are engineered and designed from top-to-bottom that aims to provide the best cooling performance that goes well with gaming aesthetics. With the help of vibration dampeners, winglet designed fan blades on the impeller, chamfered-intake and exhaust and sleeved cables, the Aer F guarantees superior cooling and silence.
Built to Last
The Aer F uses patented fluid dynamic bearings, made from copper, giving the fan good and reliable operation for six years, staying relevant well beyond your next graphics card.
Color Your Way

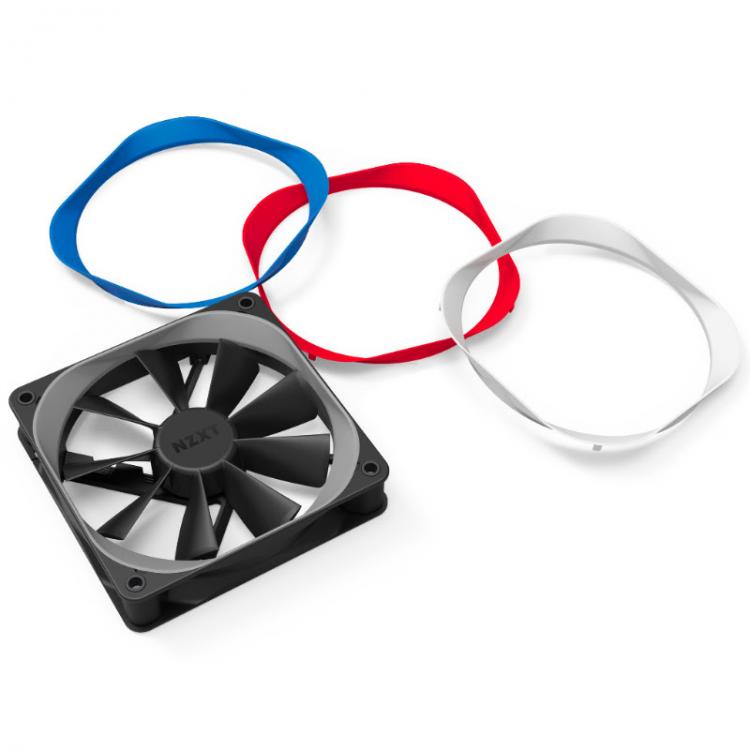

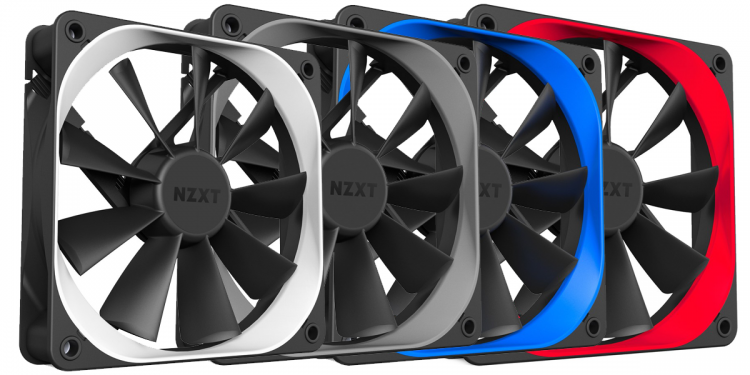

The NZXT Aer Trims, compatible with Aer F and Aer P, are available in Red, White, and Blue, enabling builders to fit the fan with their build color theme. Aer Trims are sold separately.
Specifications
Dimensions:
– Aer F120: 120 x 120 x 26mm
– Aer F140: 140 x 140 x 26mm
Material(s): Plastic, Rubber
Fan Speed:
– Aer F120: 500~1,500 +/- 200 RPM
– Aer F140: 500~1,500 +/- 200 RPM
Fan Airflow:
– Aer F120: 21.01~63.02 CFM
– Aer F140: 34.48~103.43 CFM
Fan Air Pressure:
– Aer F120: 0.13~1.24mm-H2O
– Aer F140: 0.15~1.42mm-H2O
Fan Noise Level:
– Aer F120: 22~31dBA
– Aer F140: 21~35dBA
Fan Bearing: Fluid Dynamic Bearing (FDB)
Fan Rated Voltage:
– Aer F120: 12V DC, 0.18A, 2.16W
– Aer F140: 12V DC, 0.32A, 3.84W
Fan Connector: 4-pin PWM
Fan Life: 60,000 hours / 6 Years
Warranty: 2 years
Dimensions:
– Aer F120: 120 x 120 x 26mm
– Aer F140: 140 x 140 x 26mm
Material(s): Plastic, Rubber
Fan Speed:
– Aer F120: 500~1,500 +/- 200 RPM
– Aer F140: 500~1,500 +/- 200 RPM
Fan Airflow:
– Aer F120: 21.01~63.02 CFM
– Aer F140: 34.48~103.43 CFM
Fan Air Pressure:
– Aer F120: 0.13~1.24mm-H2O
– Aer F140: 0.15~1.42mm-H2O
Fan Noise Level:
– Aer F120: 22~31dBA
– Aer F140: 21~35dBA
Fan Bearing: Fluid Dynamic Bearing (FDB)
Fan Rated Voltage:
– Aer F120: 12V DC, 0.18A, 2.16W
– Aer F140: 12V DC, 0.32A, 3.84W
Fan Connector: 4-pin PWM
Fan Life: 60,000 hours / 6 Years
Warranty: 2 years
MSRP Pricing:
Aer F120 (Single Pack) – £19.99 / $19.99
Aer F120 (Twin Pack) – £29.99 / $29.99
Aer F140 (Single Pack) – £19.99 / $19.99
Aer F140 (Twin Pack) – £32.99 / $32.99
Aer Trims 120mm (Available in Red, White, and Blue) – £5.99 for two trims
Aer Trims 140mm (Available in Red, White, and Blue) – £5.99 for two trims
Availability:
UK – April 2017
Visit the NZXT website for more information on the Aer F fans.
