Phanteks introduces the Universal Fan Controller that supports both 3-pin(DC) and 4-pin(PWM) cooling fans offering a simple single solution in controlling up to eight (8) cooling fans.
Phanteks introduces the Universal Fan Controller that supports both 3-pin(DC) and 4-pin(PWM) cooling fans offering a simple single solution in controlling up to eight (8) cooling fans.
Phanteks introduces the Universal Fan Controller that supports both 3-pin(DC) and 4-pin(PWM) cooling fans offering a simple single solution in controlling up to eight (8) cooling fans. The Phanteks Universal Fan Controller comes with manual control wherein users can synchronize and control all connected fans using one of the three-speed options: silent at 40% fan speed, balanced at 70% fan speed, and performance at 100% fan speed. Users can also synchronize the Universal Fan Controller with the motherboard using the included Motherboard Cable connector.
Full Control
The Phanteks Universal Fan Controller supports all standard chassis fan headers – 3pin(DC) and 4pin(PWM). Easily synchronize and control up to 8 cooling fans using manual control.
Easy Installation
The Universal Fan Controller and its manual control come with integrated magnets and a Velcro option for easy installation inside the chassis.
Specifications
Model: PH-PWHUB_02
Motherboard Input Cable: 4pin PWM / DC input cable
Output Connector: 1x White Universal 4pin/3pin Fan, 4x Black 4pin PWM, 3x Black 3pin DC
Manual Remote Speeds: 40%, 70%, 100%
Protection: Over Power Protection (OPP) of 60W, Over Current Protection (OCP) of 5A, Short Protection

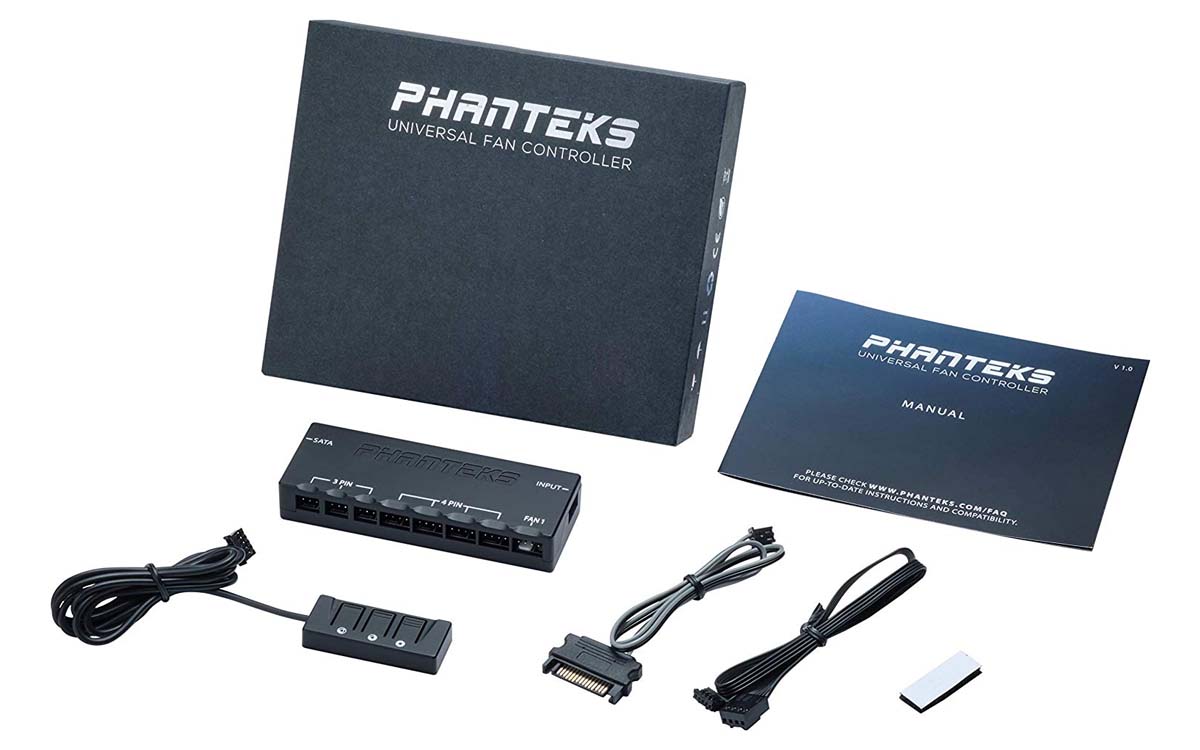

Bundle:
– Universal Fan Controller
– 3-Button Remote
– SATA Power Cable 400mm
– 4pin Input Cable 40mm
– Velcro Tape
– Manual
Model: PH-PWHUB_02
Motherboard Input Cable: 4pin PWM / DC input cable
Output Connector: 1x White Universal 4pin/3pin Fan, 4x Black 4pin PWM, 3x Black 3pin DC
Manual Remote Speeds: 40%, 70%, 100%
Protection: Over Power Protection (OPP) of 60W, Over Current Protection (OCP) of 5A, Short Protection
Bundle:
– Universal Fan Controller
– 3-Button Remote
– SATA Power Cable 400mm
– 4pin Input Cable 40mm
– Velcro Tape
– Manual
Pricing and Availability
The Phanteks Universal Fan Controller is now available at partner resellers worldwide with an MSRP of €19.90/£17.90. Now available at Amazon US for $20.99. Learn more about the Phanteks Universal Fan Controller here.
