Aeneas design has more cube-like external dimensions, allowing for a horizontally mounted mATX motherboard along with other innovations.
Aeneas design has more cube-like external dimensions, allowing for a horizontally mounted mATX motherboard along with other innovations.
PRESS RELEASE
Announcing the Raijintek Aeneas case, loaded with an array of features. The case is developed with superb airflow in mind, combined with a great intake and outtake giving all of the components great ventilation. The Raijintek Aeneas is a sturdy case presented with a clean, elegant design displaying an eye-catching blue LED bar running along the front and the top of the case; which can be switched on/off.

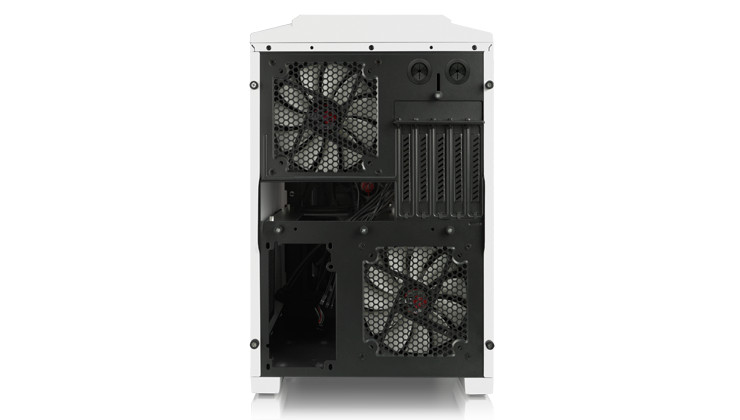

A huge range of possibilities with cooling in this case is an enthusiast’s dream, supporting a maximum of eight fans including a 200mm optional fan space at the front of the case. The case is pre-installed with two 120mm fans on the front of the case, however there are further options of four 120mm fans can be fitted, also a 200mm fan, or a 240mm radiator. At the rear of the case two 140mm fans are pre-installed. With the top cooling options allowing you to fit a further two 240mm fans or a 280mm radiator.

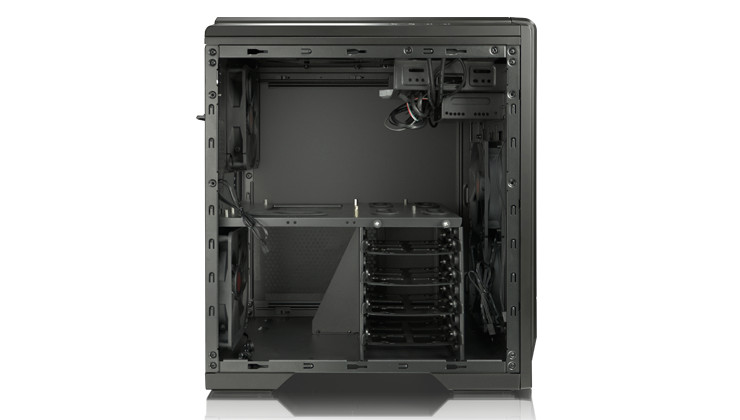

The case has superior features, such as a removable motherboard tray for easy installation, the max CPU height is up to 180mm, and the case can support full length graphic cards up to 310mm.

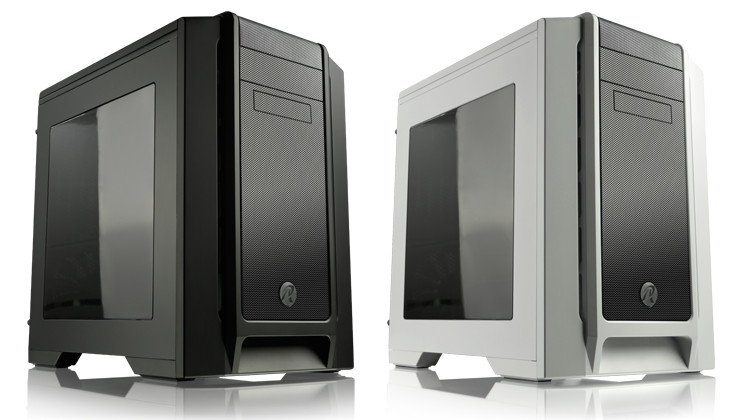

The case allows for a high class watercooled system to be assembled inside, with options of having a side-window to show off your hardware. The Aeneas is also available in two colours, black and white.
Aeneas Features:
– Elegant LED light bar design (on/off switch)
– User Friendly design – removable M/B frame and tool-free screws
– Classic design with efficient and mass airflow
– Complete black coated interior
– Dust-control filters for all mesh area
– Sturdy and reliable chassis body Chassis body: 0.8mm SGCC
– Accommodate an internal 240mm radiator at front ; an 280mm radiator at top
– Powerful fan systems pre-installed: two 140mm at rear; two 120mm at front
– Supports to up to eight fan installation; 200mm fan option at front
– Supports to install four 3.5″HDD (or four 2.5″ HDD) and five 2.5″ HDD (optional cage)
– Fully supports Tool-free for ODDs & HDDs
– Two high speed USB3.0 and two USB2.0
– Supports VGA card up to 310mm
– Support CPU cooler height up to 180mm
– User Friendly design – removable M/B frame and tool-free screws
– Classic design with efficient and mass airflow
– Complete black coated interior
– Dust-control filters for all mesh area
– Sturdy and reliable chassis body Chassis body: 0.8mm SGCC
– Accommodate an internal 240mm radiator at front ; an 280mm radiator at top
– Powerful fan systems pre-installed: two 140mm at rear; two 120mm at front
– Supports to up to eight fan installation; 200mm fan option at front
– Supports to install four 3.5″HDD (or four 2.5″ HDD) and five 2.5″ HDD (optional cage)
– Fully supports Tool-free for ODDs & HDDs
– Two high speed USB3.0 and two USB2.0
– Supports VGA card up to 310mm
– Support CPU cooler height up to 180mm
Technical Specifications:
Product Name:- AENEAS
Dimension [W×D×H]:- 288×380×430 mm
Material:- SGCC 0.8mm
Color:- Matt Black / White
M/B Support:- MicroATX / ITX
Expansion Slot:- PCI Slots [Tool-Free] ×5
Drive Bay:
– External: [Tool-Free] 5.25″ ×1
– Internal: 3.5″ ×5 [Tool-Free, 1 Exposed + 4 Hidden], 2.5″ ×5 [option/Removeable]
I/O Panel:- USB3.0×2, USB2.0×2, HD Audio×1
Power Supply:- PS/2 [Internal Bottom-mount]
Cooling System:- Water Pipe Holes×2
– Front Fan: 120mm×4pcs [2pcs pre-installed] 200mm fan [option] or 240mm radiator [option]
– Rear Fan: 140mm×2 [pre-installed]
– Top Fan: 140mm×2 [option] or 240mm radiator [option]
– Side Fan: 140mm×1 [option]
CPU Cooler Height:- 180mm [Max.]
Graphic Card Length:- 310mm [Max.]
Side Panel Style:- Window / Flat [Vent]
Dimension [W×D×H]:- 288×380×430 mm
Material:- SGCC 0.8mm
Color:- Matt Black / White
M/B Support:- MicroATX / ITX
Expansion Slot:- PCI Slots [Tool-Free] ×5
Drive Bay:
– External: [Tool-Free] 5.25″ ×1
– Internal: 3.5″ ×5 [Tool-Free, 1 Exposed + 4 Hidden], 2.5″ ×5 [option/Removeable]
I/O Panel:- USB3.0×2, USB2.0×2, HD Audio×1
Power Supply:- PS/2 [Internal Bottom-mount]
Cooling System:- Water Pipe Holes×2
– Front Fan: 120mm×4pcs [2pcs pre-installed] 200mm fan [option] or 240mm radiator [option]
– Rear Fan: 140mm×2 [pre-installed]
– Top Fan: 140mm×2 [option] or 240mm radiator [option]
– Side Fan: 140mm×1 [option]
CPU Cooler Height:- 180mm [Max.]
Graphic Card Length:- 310mm [Max.]
Side Panel Style:- Window / Flat [Vent]
The Raijintek Aeneas is available exclusively from OverclockersUK in the UK, priced at £62.99 for white and black versions and £65.99 for the white windowed variant.
