Noctua partners with Seasonic to deliver a best-in-class PSU, the PRIME TX-1600 Noctua Edition, combining top-tier performance with ultra-quiet acoustics. It features 80PLUS Titanium and Cybenetics Titanium efficiency ratings, and the Cybenetics Lambda A++ noise rating.
Product Name: PRIME TX-1600 Noctua Edition
Manufacturer: Seasonic | Noctua
MSRP: EUR 499 / USD 569 / £429
Seasonic, a world-renowned manufacturer of high-end power supplies, has joined forces with Noctua, a leading name in premium cooling solutions, to develop the PRIME TX-1600 Noctua Edition. Unveiled last year, this collaboration brings together Seasonic’s engineering excellence and Noctua’s acclaimed silent cooling technology to deliver what aims to be one of the most refined desktop power supplies available — combining exceptional performance, superior build quality, and near-silent acoustics.
The Seasonic PRIME TX-1600 Noctua Edition is a refined variant of the standard PRIME TX-1600, distinguished primarily by the inclusion of Noctua’s award-winning NF-A12x25 120mm fan in place of the original 135mm fluid dynamic bearing (FDB) fan. Beyond the upgraded cooling component, the unit features Noctua’s unmistakable aesthetic, incorporating subtle accents of its signature brown tones on both the PSU housing and its fully sleeved modular cables, which adopt a coordinated black-and-brown colour scheme.
The Seasonic PRIME TX-1600 Noctua Edition is designed to appeal not only to loyal Noctua enthusiasts but also to discerning PC builders seeking top-tier components for high-end systems. By merging proven electrical performance with outstanding acoustic efficiency, this power supply stands out as a compelling choice for those who demand both technical excellence and near-silent operation.
Noctua on the PRIME TX-1600 Noctua Edition
Seasonic, renowned for its premium-grade power supplies, offers the PRIME TX series as its flagship line, boasting 80 PLUS® Titanium certification, exceptional efficiency, and cutting-edge engineering. The Noctua Edition of the TX-1600 builds on this foundation, integrating Noctua’s acclaimed NF-A12x25 fan and a custom optimised grille to achieve up to 8–10dB(A) lower noise levels than the standard model. With a semi-passive cooling design, it operates silently up to around 50% load and remains remarkably quiet even under full load. Featuring ATX 3.1 and PCIe 5.1 support along with fully modular, Noctua-themed cables, the PRIME TX-1600 Noctua Edition stands as an outstanding choice for enthusiasts seeking uncompromising performance and near-silent operation.
Seasonic’s ATX 3.1 PSU Lineup
Among the PSU manufacturers we’ve reviewed this year, Seasonic’s ATX 3.1 range stands out for its clarity and consistency. Each model is explicitly labelled with “ATX 3.1” in its name, making it easy for consumers to identify — with the exception of the PRIME TX-1600 Noctua Edition likely omitted to avoid an excessively long model designation. Functionally, the Noctua Edition PSU is based on the PRIME TX ATX 3.1 platform, which is available in both 1600W and 1300W variants.

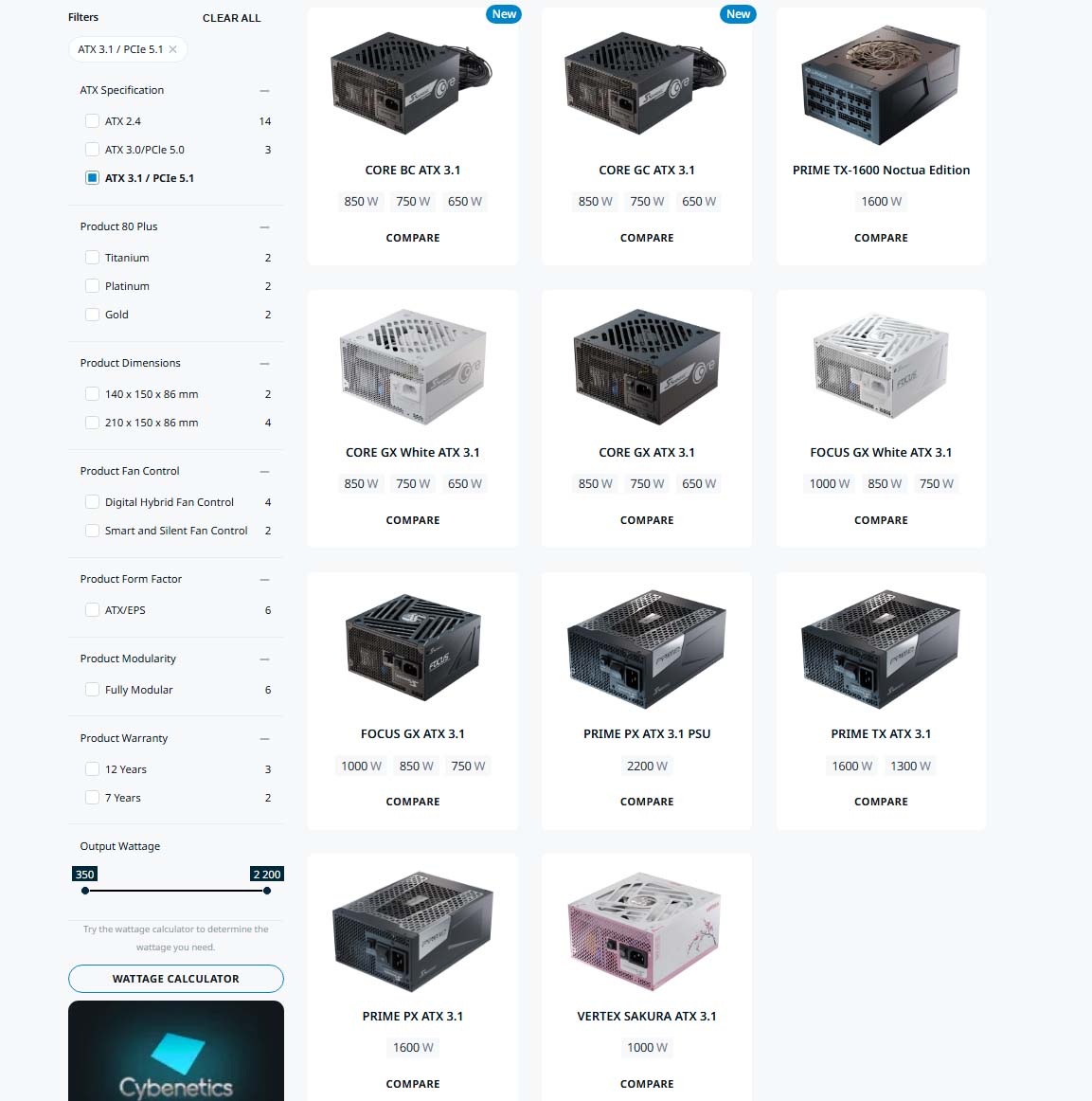

Fortunately, Seasonic has made it easy to navigate its current range by including a convenient filter on its official website, allowing users to quickly view all available ATX 3.1 power supply units. The line-up includes the flagship PRIME TX ATX 3.1 and PRIME TX-1600 Noctua Edition, followed by the PRIME PX ATX 3.1, VERTEX SAKURA ATX 3.1, FOCUS GX ATX 3.1, FOCUS GX WHITE ATX 3.1, CORE GX ATX 3.1, and CORE GX WHITE ATX 3.1 models. Seasonic has also recently added the CORE GC ATX 3.1 and CORE BC ATX 3.1 power supply units.
Learn about the features and specifications of this PSU on the next page.
Features and Specifications
Features
• Award-winning performance – Twice recognised by the European Hardware Association as Best Power Supply Series (2023 and 2024), the PRIME TX line showcases Seasonic’s decades of engineering expertise and exceptional reliability.
• Cybenetics Lambda A++ sound level rating – The Noctua Edition achieves an average noise level of just ~13 dB(A), earning a Lambda A++ classification and improving upon the already quiet standard model by around 8 dB(A).
• Renowned NF-A12x25 120mm fan – Equipped with Noctua’s acclaimed fan, the PSU maintains safe operating temperatures while running up to 10 dB(A) quieter than the regular 135mm model.
• Highly optimised fan grill – Custom-engineered for superior airflow and reduced turbulence, the grille design enhances cooling efficiency while minimising acoustic emissions.
• Semi-passive operation – The fan remains completely off up to 50% load at ambient temperatures up to 25°C, ensuring silent operation for low-power or acoustically tuned builds.
• Titanium-level energy efficiency – Boasting 80 PLUS® Titanium and Cybenetics ETA Titanium certifications, the PSU delivers up to 94% efficiency at 50% load, reducing heat and power consumption.
• ATX 3.1 and PCIe 5.1 compliant – Fully supports the latest standards and includes a 12V-2×6 cable for next-generation GPUs such as the GeForce RTX 4090 series.
Ultra-tight voltage regulation – Seasonic’s Micro Tolerance Load Regulation (MTLR) design maintains output voltages within ±0.5% for exceptional stability under all loads.
• Fully modular Noctua-style cables – Features high-quality, fully modular cables with dark brown accents, complementing Noctua-themed system builds.
• 12-year Seasonic warranty – Backed by Seasonic’s industry-leading warranty, ensuring long-term reliability and peace of mind.
Specifications
• Form Factor: ATX / EPS
• Maximum Combined Power: 1600W (+12V), 125W (3.3V + 5V), 6W (–12V), 15W (5Vsb)
• Connectors:
– 1× 20/24-pin (Motherboard)
– 2× 12V-2×6 (12+4 Pins to 12+4 Pins)
– 3× 4/8-pin ATX12V
– 6× 6/8-pin PCIe
– 18× SATA
– 3× PATA (IDE)
• ATX Specification: ATX 3.1 & PCIe 5.1
• Average Efficiency: 94%
• 80 PLUS Certification: Titanium
• Cybenetics Certification: ETA-Titanium (115V / 230V), Lambda A++ (115V / 230V)
• Protection Features: OCP, OPP, OTP, OVP, SCP, UVP
• Warranty: 12 years
Dimensions (L*W*H)
210 × 150 × 86 mm
See the Seasonic PRIME TX-1600 Noctua Edition’s Cybenetics Efficiency and Noise Level certification here.
Packaging, Bundle, and Cables
The Seasonic PRIME TX-1600 Noctua Edition is a sizable power supply unit, which is expected given its high output and premium design. As a special collaboration between Seasonic and Noctua, the PSU arrives with generous inclusions that reflect its flagship status. Accordingly, the packaging itself is notably large, hinting at the level of care and presentation that went into this exclusive edition.The packaging carries Noctua’s signature brown colour scheme, immediately distinguishing it from the standard PRIME TX series. Both the Seasonic and Noctua logos are prominently displayed on the box, accompanied by several key certification markings that highlight the PSU’s efficiency and reliability standards.
More certifications and badges found on the side of the box.
Seasonic has thoughtfully included QR codes on the packaging linking to the 12V-2×6 Installation Guide and the User Manual. These provide easy access to compatibility details and other technical information that aren’t printed on the box itself — a convenient touch for users who want immediate access to essential documentation.
The side of the box features a brief product description outlining what sets the Noctua Edition apart, including details about its optimised acoustic profile and near-silent operation.
Two graphs printed on the packaging illustrate the Noctua Edition’s reduced noise levels and enhanced airflow compared to the standard PRIME TX-1600. These highlight that the collaboration goes beyond simply fitting a Noctua NF-A12x25 fan — the redesigned fan grille also contributes to improved airflow and overall acoustic performance.
Upon opening the box, the cables and accessories are neatly organised within a fabric pouch, giving a premium first impression. A user manual and installation guide are also included — the manual itself styled similarly to Noctua’s product documentation, which is a thoughtful detail. The power supply unit is securely protected by dense foam inserts, ensuring safe transport and presentation.
The power supply unit is inside a fabric hamstring bag.
The accessory pouch includes more than just the modular cables and power cord. Inside, there’s a small bag containing cable combs, another with Velcro straps, zip ties, and a Noctua badge sticker, as well as a Seasonic ATX 24-Pin 90° Adapter featuring an integrated PSU tester function — a practical inclusion for quick functionality checks.
Pre-installation Testing
Seasonic provided the necessary accessory to allow users to test the PRIME TX-1600 Noctua Edition power supply unit before installing to the system.
Power Supply Installation Guide
Seasonic recommends testing the power supply before installation, as outlined in the included quick-start guide. While the guide illustrates the traditional paperclip method, this is no longer necessary — Seasonic provides a dedicated PSU tester in the box. This small device allows users to safely and conveniently power on the unit for preliminary testing, offering a more reliable and user-friendly alternative to the manual paperclip approach.
Seasonic ATX 24-pin 90° Adapter and PSU Tester Function
The PRIME TX-1600 Noctua Edition includes a Seasonic ATX 24-pin 90° Adapter and PSU Tester Function — an exclusive accessory not available separately. This dual-purpose device enables quick functionality testing straight out of the box and doubles as a right-angle connector, helping achieve tidier cable routing once the PSU is installed.
To perform a test, simply connect the 24-pin cable to the PSU, then attach the tester to the other end of the cable. Plug in the C19 power cord and switch on the power supply. Press the button located at the centre of the ATX 24-pin 90° Adapter and PSU Tester — a blue light indicates that the unit is functioning correctly, while a red light signals a potential fault.
Cables
The cables included with the Seasonic PRIME TX-1600 Noctua Edition follow Noctua’s distinctive aesthetic, featuring a refined black-and-brown colour scheme that complements the PSU’s design and aligns seamlessly with Noctua-themed system builds.
The PRIME TX-1600 Noctua Edition features fully modular cables finished in Noctua’s signature black and brown colour scheme. Seasonic includes two 12V-2×6 cables, each measuring 700mm in length, along with three EPS cables for CPU power delivery. For legacy graphics cards, the PSU also provides six 8-pin (6+2) PCIe cables. Notably, these PCIe cables are not daisy-chained — or “pigtail” style — meaning users will need to connect two separate cables when powering GPUs that require dual 8-pin connectors, which is the recommended configuration for optimal power stability.

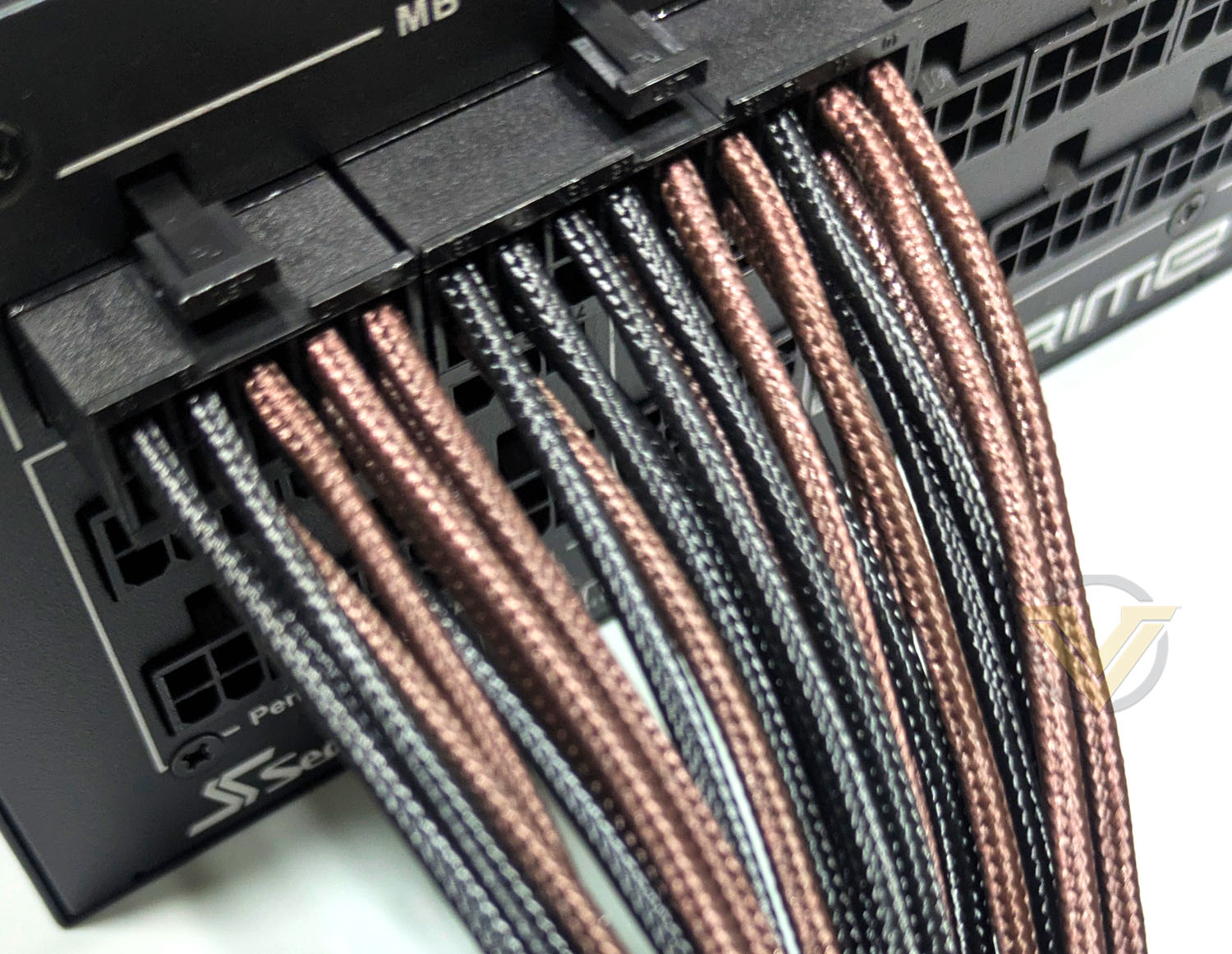

As expected from a high-end power supply, the included cables feature individually sleeved premium wiring, offering a more durable and visually refined finish compared to standard flat black cables.
The Seasonic PRIME TX-1600 Noctua Edition includes the following cables:
1x 24Pin Motherboard ATX (610mm)
3x 8Pin (4+4Pin) EPS (700mm)
2x 16Pin PCIe 5.1 12V-2×6 (700mm)
6x 8Pin (6+2Pin) +8Pin (6+2Pin) PCIe (750mm)
3x 4xSATA (950mm)
1x 2xSATA 3.3V (550m)
1x 3xMOLEX (700mm)
3x 8Pin (4+4Pin) EPS (700mm)
2x 16Pin PCIe 5.1 12V-2×6 (700mm)
6x 8Pin (6+2Pin) +8Pin (6+2Pin) PCIe (750mm)
3x 4xSATA (950mm)
1x 2xSATA 3.3V (550m)
1x 3xMOLEX (700mm)
The PRIME TX-1600 Noctua Edition supports multiple graphics cards having two 12V-2×6 connectors and 6 PCIe 8-pin cables.
C19 Power Cord (Right)
The Seasonic PRIME TX-1600 Noctua Edition uses a C19 power cord, which is noticeably thicker than the standard C13 cables typically bundled with lower wattage PSUs. The C19 connector is designed to handle higher current loads — up to 16 amps — making it more suitable for high-capacity units such as this 1600W model. In contrast, C13 power cords are generally rated for up to 10 amps and are used for mid-range power supplies. The use of a C19 cable ensures safer and more stable power delivery under heavy load conditions.
Closer Look (External)

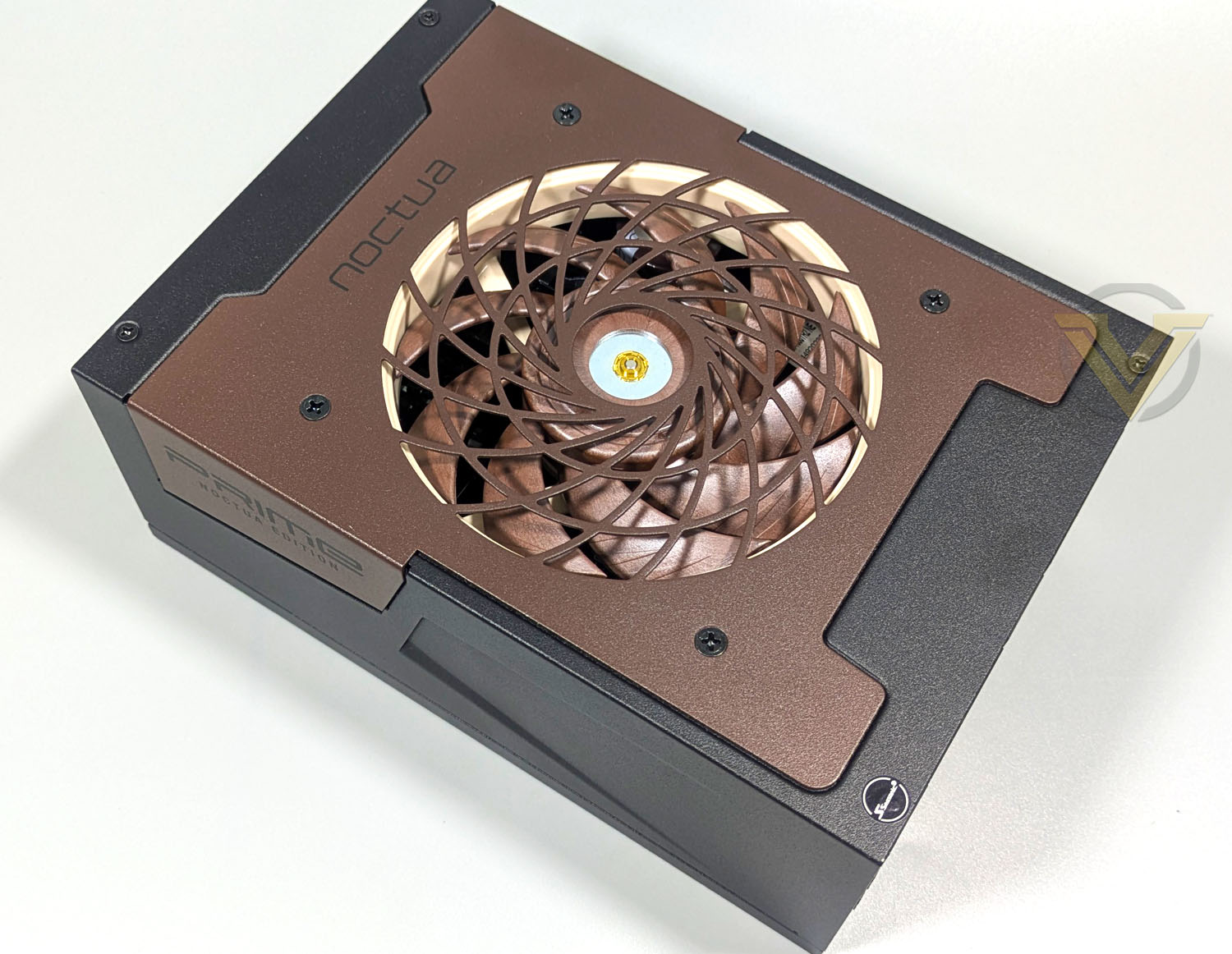

The Seasonic PRIME TX-1600 Noctua Edition power supply unit is massive, measuring 210mm in length which is expected for a PSU of this calibre.
The fan grille of the PSU is different from the standard PRIME TX-1600 PSU. The PSU’s housing also gets a touch of brown with a “Noctua” branding present on the shroud.
On the side of the PSU, a visible “PRIME Noctua Edition” branding is added. This side would be visible if your chassis doesn’t have a PSU shroud or has an opening.
The top panel has a sticker that contain some essential information about the PSU such as the output specifications, certifications and serial number.
The interior end of the PSU is populated with headers given the amount of cables this PSU comes with. Each section is labelled properly indicating where cables go.
At the rear of the PSU is a larger than usual power switch and Seasonic’s Hybrid Mode button. Hybrid Mode is a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level. Watch Seasonic’s presentation about the Hybrid Mode fan control in the video below.
Paired with the award-winning Noctua NF-A12x25 cooling fan, the PRIME TX-1600 Noctua Edition achieved a Cybenetics Lambda A++ Noise Rating, the highest score for noise level testing, for both the 230V and 115V tests. This means the PRIME TX-1600 Noctua Edition operates below 15 dB(A) regardless of load. On the contrary, the standard Seasonic PRIME TX-1600 power supply unit only achieved a Cybenetics Lambda A Noise Rating.
Closer Look (Internal)

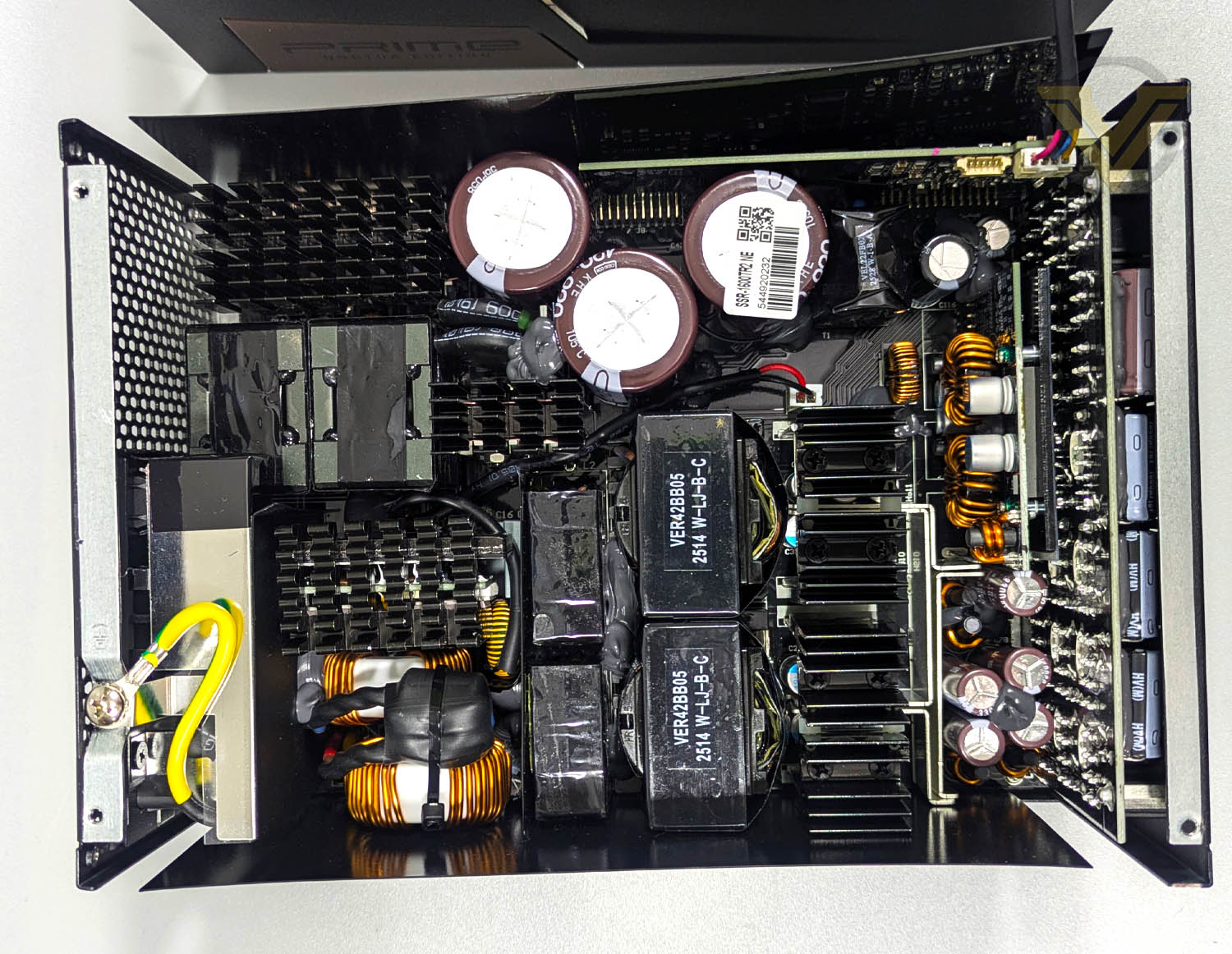

The Seasonic PRIME TX-1600 Noctua Edition PSU is easy to disassemble, the housing cover is secured by four screws only.100% Japanese Capacitors

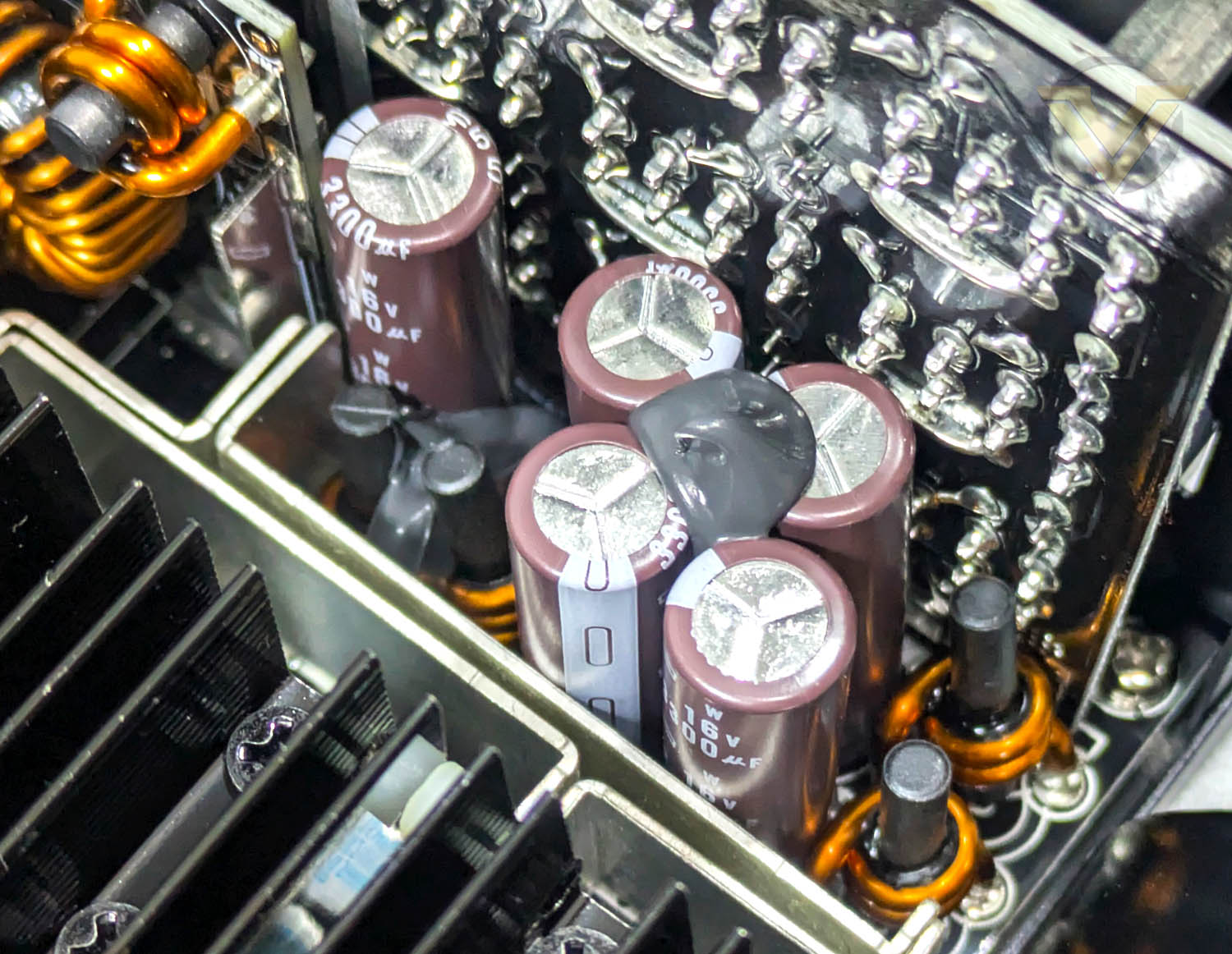

Designed as the top-end Titanium-rated model, the PRIME TX-1600 Noctua Edition features three Nippon Chemi-Con primary capacitors. The PSU’s we’ve reviewed so far this year tend to have a single primary capacitor only with the exception of the Superflower LEADER III GOLD ATX 3.1 850W PSU that had two. In general, having more primary capacitors improves power stability, reduces ripple, and enhances overall reliability. With this in mind, the Seasonic PRIME TX-1600 Noctua Edition is indeed built to be a top-end unit that aims to deliver power with exceptional stability and reliability.

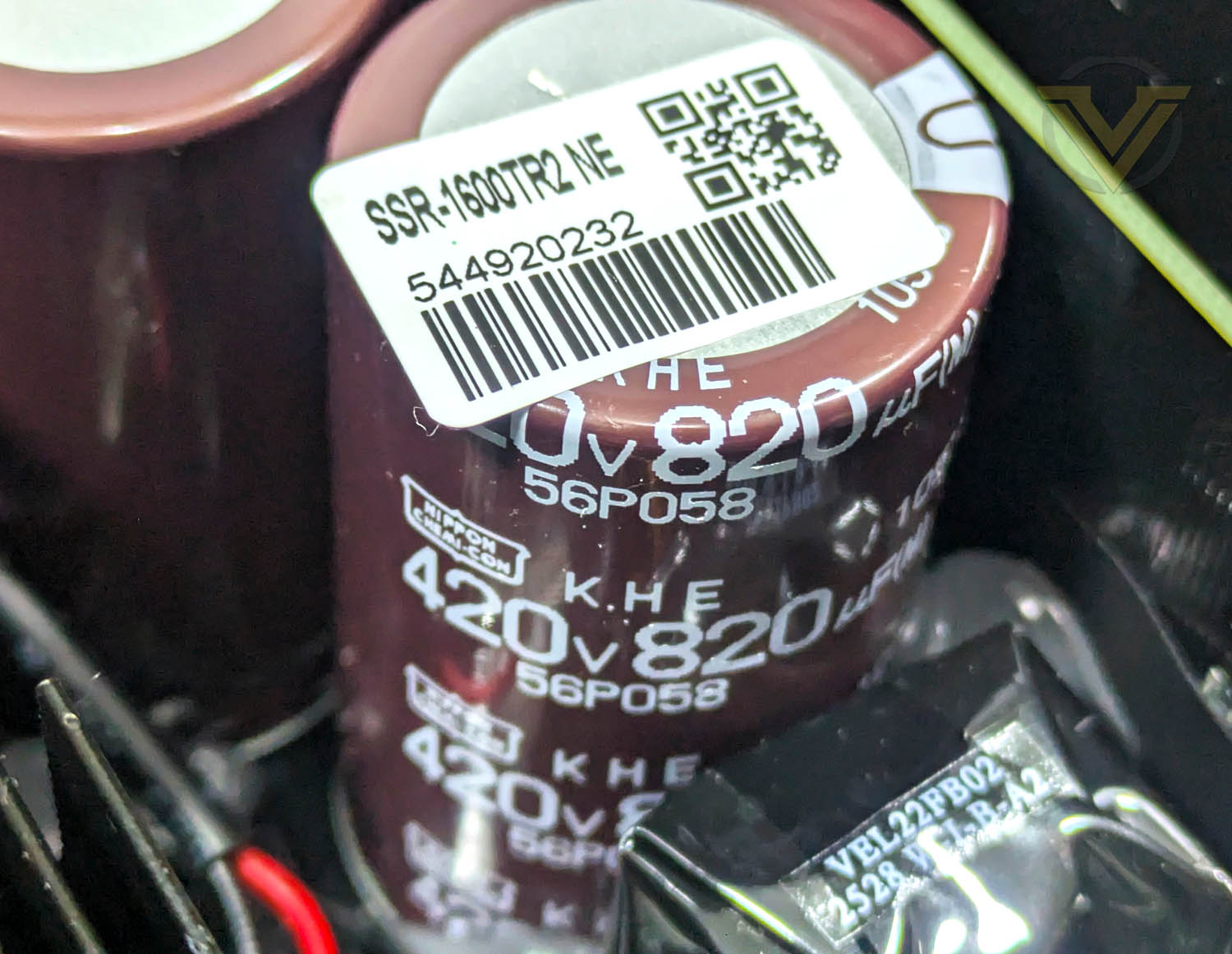

It comes equipped with 420V 820uF KHE Series 105°C aluminium electrolytic capacitors from Nippon Chemi-Con – a first tier Japanese capacitor brand known for quality, reliability, and longevity.

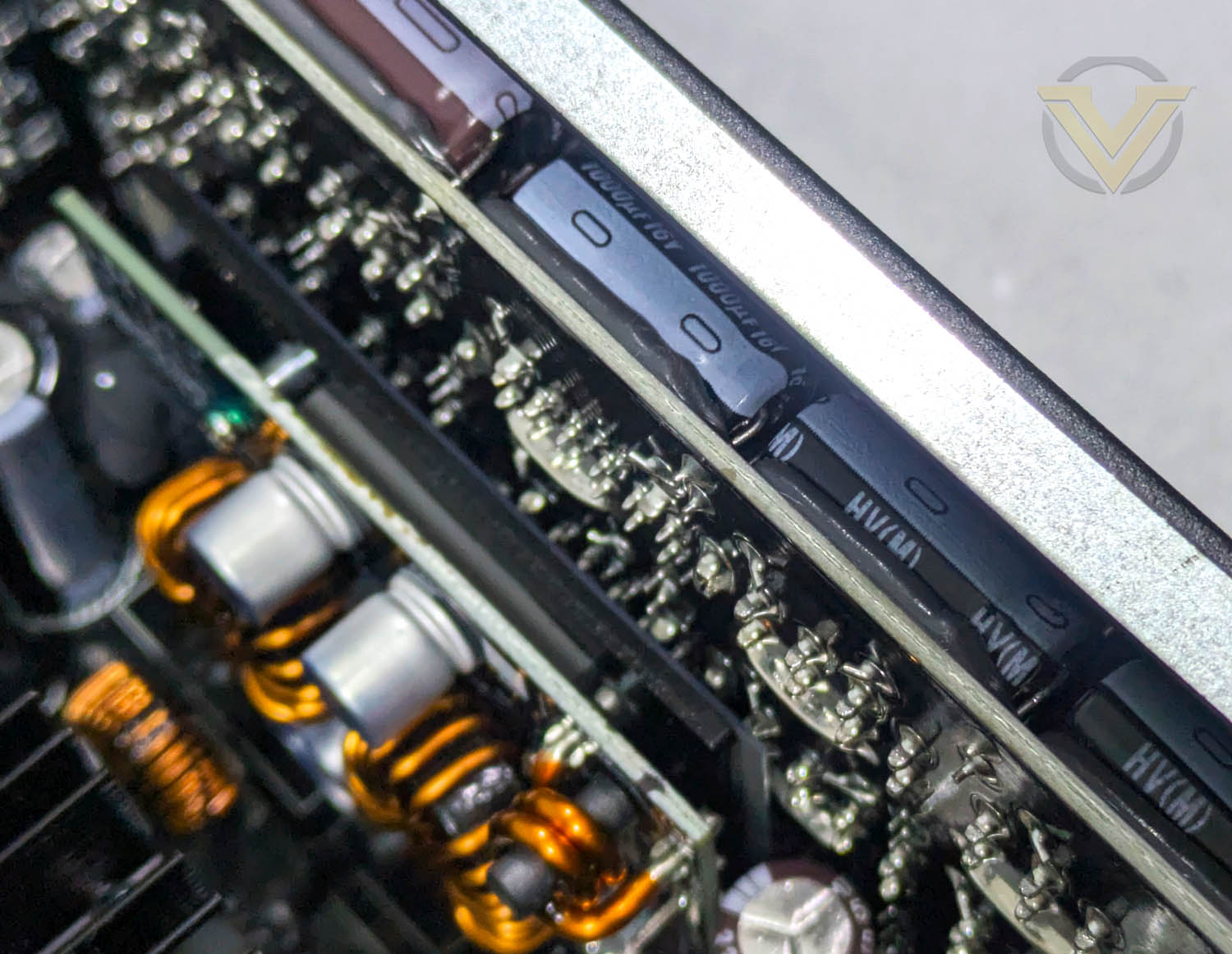

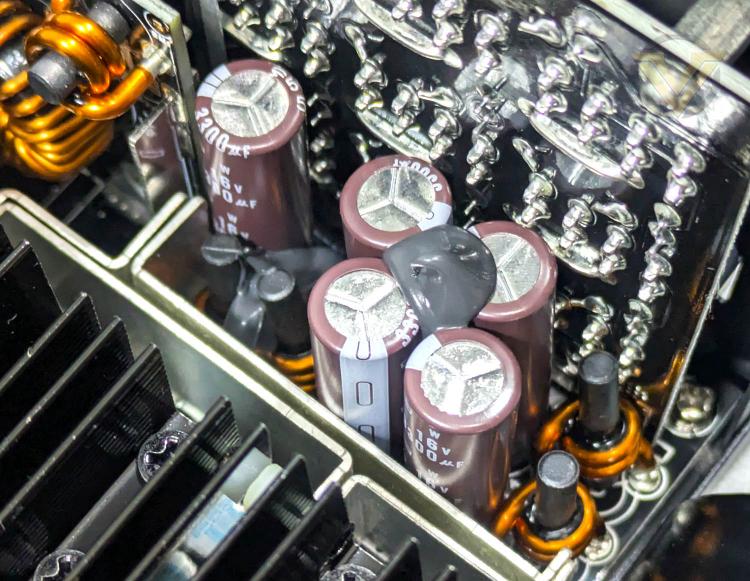

The remaining capacitors inside the unit are a mix of Nippon Chemi-Con and Rubycon components, ensuring the PSU is equipped with 100% first-tier Japanese capacitors. This guarantees excellent reliability, stability, and longevity — characteristics expected from a flagship Seasonic power supply.
Noctua NF-A12x25 Cooling Fan
Now, the highlight feature of the Seasonic PRIME TX-1600 Noctua Edition is the integration of the award-winning NF-A12x25 PWM fan.

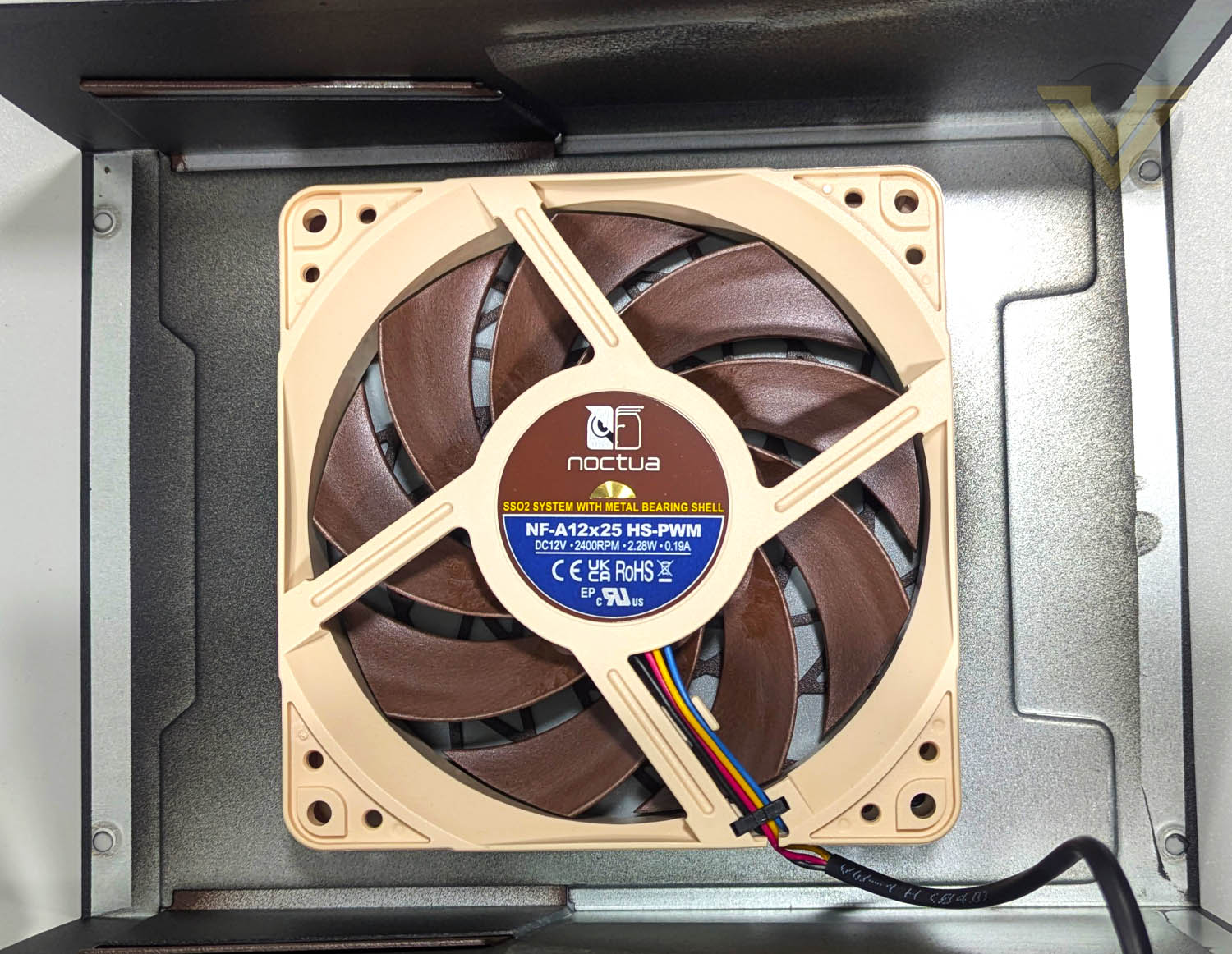

The PRIME TX-1600 Noctua Edition is fitted with Noctua’s renowned NF-A12x25 HS-PWM fan, which uses a smaller 120mm frame compared to the 135mm fluid dynamic bearing fan found in the standard PRIME TX-1600. Despite its reduced size, the Noctua fan delivers superior acoustic performance, allowing the Noctua Edition to achieve Cybenetics’ highest Lambda noise certification of A++, whereas the standard model is rated at A-.
The Noctua NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. The standard Noctua NF-A12x25 is available in six variants: PWM, LS-PWM, FLX, ULN, 5V PWM, and 5V. It is also available in chromax.black version. Learn more about the NF-A12x25 Series fans at the Noctua website.

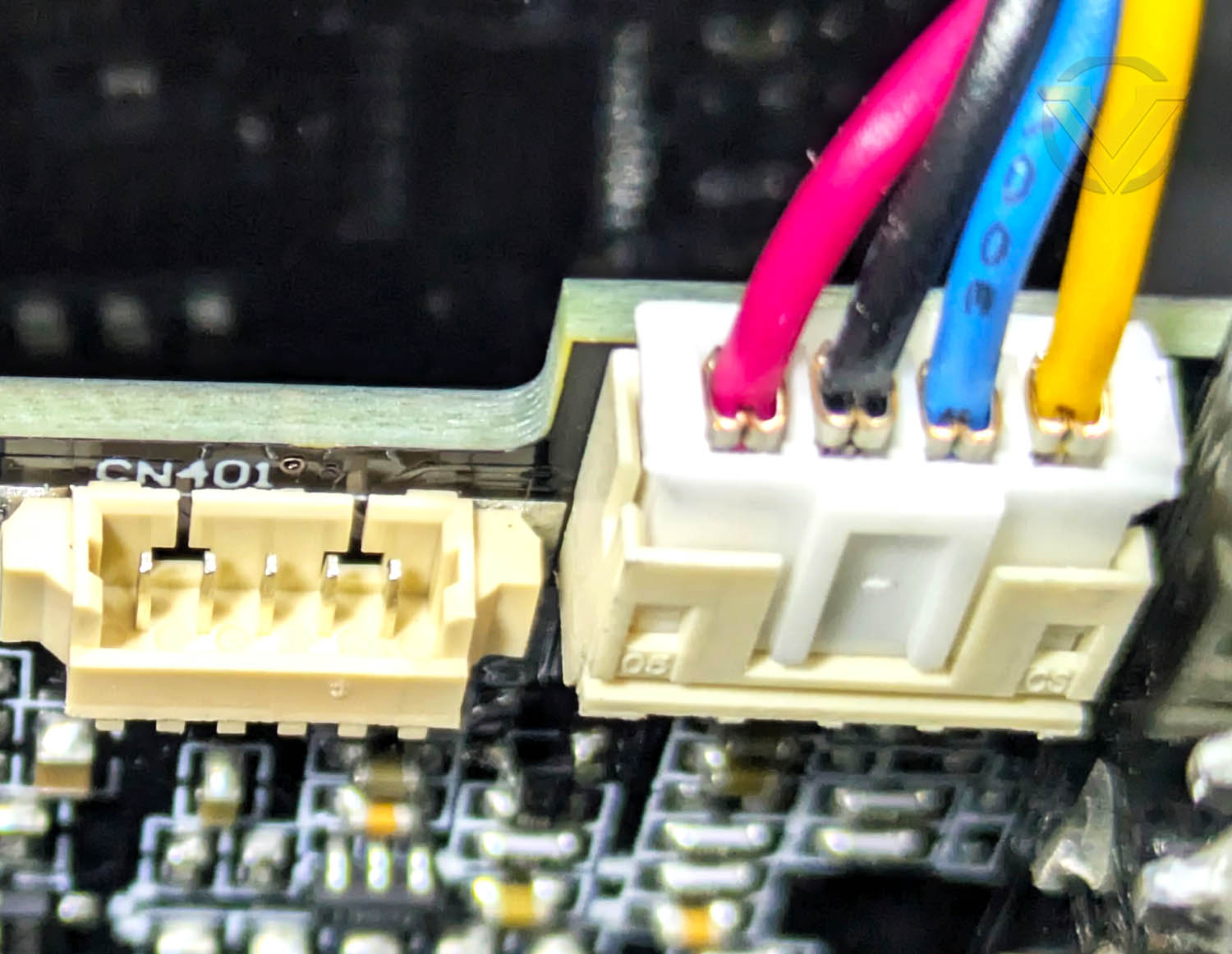

For those wondering if it uses a standard Noctua fan, the NF-A12x25 HS-PWM on the PRIME TX-1600 Noctua Edition features a non-standard connector designed for the PSU’s digital fan control module, rather than a conventional 4-pin PWM fan header. Still, using a connector makes it far easier to service or replace compared to soldered wiring which is common in PSUs.
Testing Methodologies & Results
Testing SetupFor the Seasonic PRIME TX-1600 Noctua Edition power supply, we have upgraded our testing equipment from using a multimeter to the ElmorLabs PMD2 that monitors and measures voltage, current, and power flowing through the CPU, GPU and motherboard power cables.
Our testing methodology is still the same but we will now be using OCBase’s OCCT Enterprise Edition software for power loading and monitoring. Tweaking the OCCT Stability Test, we can set different power loads for the PSU easier rather than playing around with various software to achieve set power loads. All testing is conducted using the 230V residential power standard.
We would like to thank Adrien Stevens at OCBase for providing us the software to improve our testing.
OCCT is available in various versions including Personal, Pro, Enterprise and Enterprise+. Users can avail the Personal version for free. Learn more and download OCCT at OCbase.com and on Steam.
OCCT is available in various versions including Personal, Pro, Enterprise and Enterprise+. Users can avail the Personal version for free. Learn more and download OCCT at OCbase.com and on Steam.
Methodology

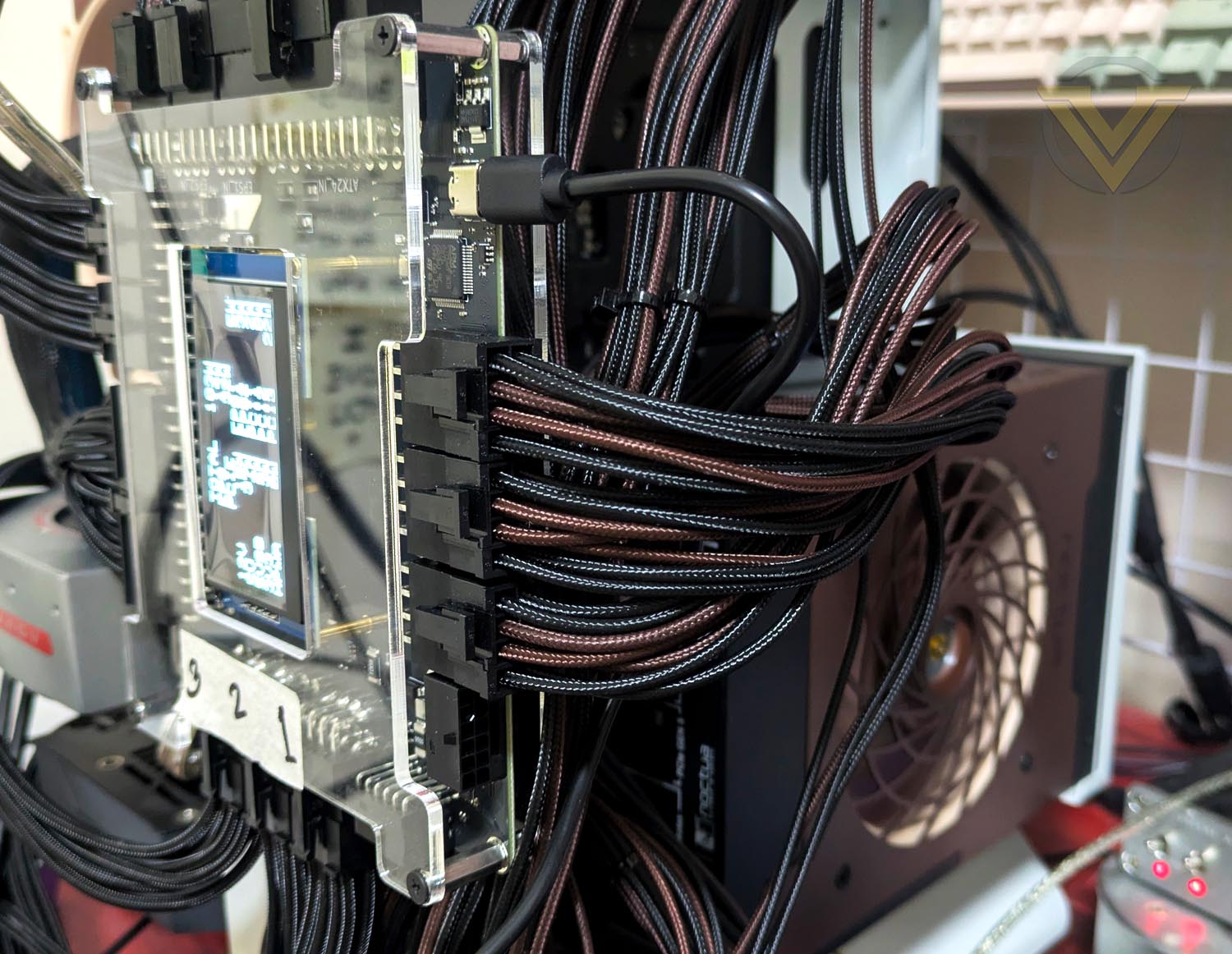

We now have more testing points with the ElmorLabs PMD2 – two 8-pin EPS connectors (EPS1 and EPS2), three +12V 8-pin PCIE (PCIE1, PCIE2, and PCI3), and readings on the 24-pin which include +12V, +5, and +3.3. We will be monitoring and recording the voltages and wattage on each of these power cables. The PMD2 cannot monitor the +12V on the SATA/MOLEX power cables. For that, we will still be using a multimeter to also monitor the voltages delivered to the SATA/MOLEX cables.
Power load will be at 10% increments using the OCCT Stability Test running for 5 minutes – as much as our current testing setup allows which is currently 750W~800W with the following testing configuration below:
CPU: Intel Core i7-13700K (5.3GHz)
Cooling: Noctua NH-D15 G2
Motherboard: GIGABYTE Z790 AORUS EXTREME X
Graphics Card: GIGABYTE GeForce RTX 3070 EAGLE OC / COLORFUL iGame GeForce RTX 4060 Ti
Memory: ADATA XPG Lancer DDR5-8000 32GB Kit
Storage: ADATA Legend 960 Max 1TB / 2TB Seagate SkyHawk 5900 RPM
Cooling: Noctua NH-D15 G2
Motherboard: GIGABYTE Z790 AORUS EXTREME X
Graphics Card: GIGABYTE GeForce RTX 3070 EAGLE OC / COLORFUL iGame GeForce RTX 4060 Ti
Memory: ADATA XPG Lancer DDR5-8000 32GB Kit
Storage: ADATA Legend 960 Max 1TB / 2TB Seagate SkyHawk 5900 RPM
Results

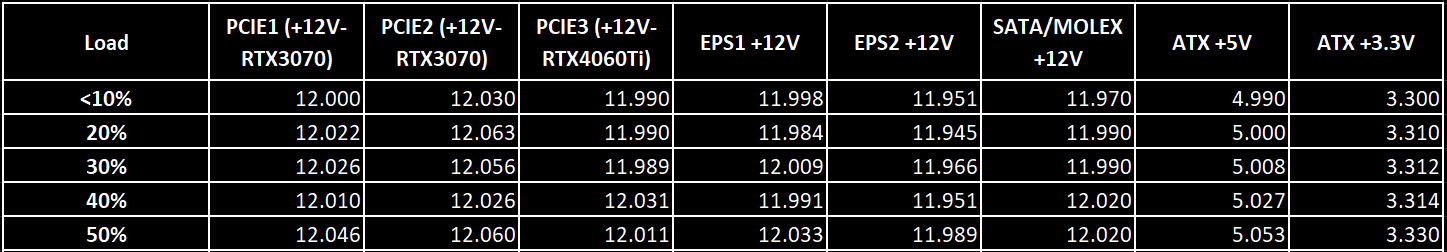

Voltage readings are averaged from the 5-minute stability testing. The PRIME TX-1600 Noctua Edition utilises Seasonic’s latest design to deliver exceptionally tight voltage regulation, maintaining the +12V rail within 0.5%. In our testing, one PCIe sensor reported a 0.52% deviation; however, when factoring in the typical margin of error inherent to measurement equipment, the results align with Seasonic’s claim of Micro Tolerance Load Regulation at 0.5%. The PRIME TX-1600 Noctua Edition PSU has the best voltage regulation out of all the PSUs we’ve reviewed this year. Its outstanding voltage regulation is a defining trait of a flagship power supply, engineered to deliver exceptionally stable and reliable power to demanding systems. See voltage and voltage regulation tables below.

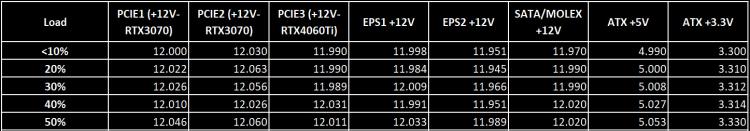

Voltages

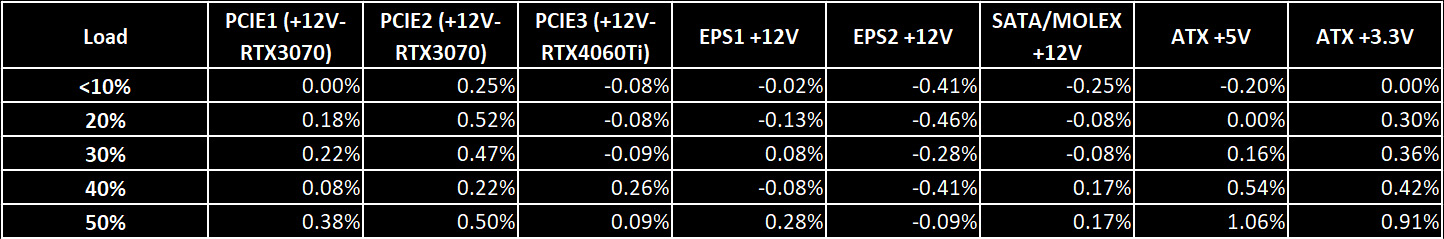

Voltage Regulation

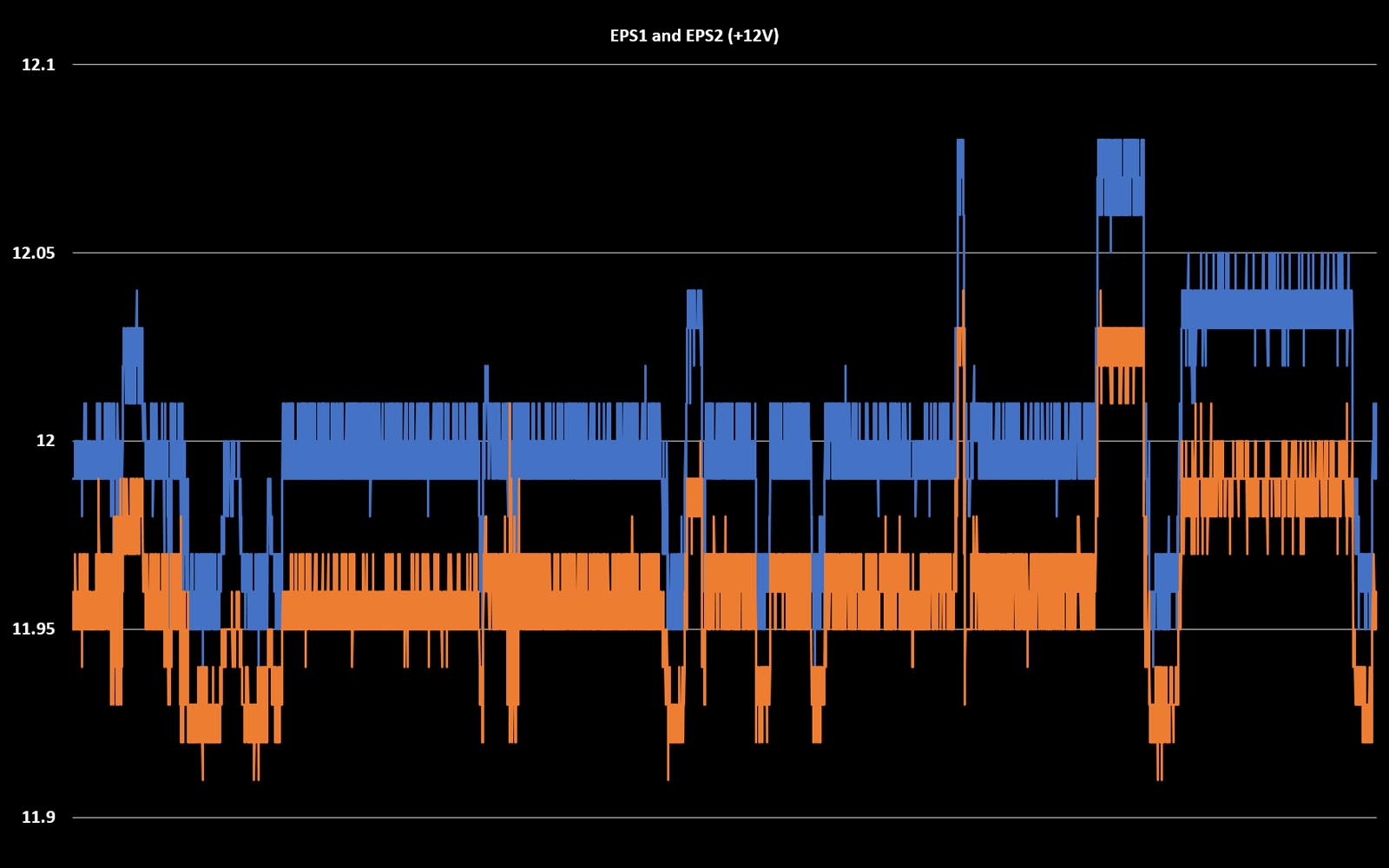

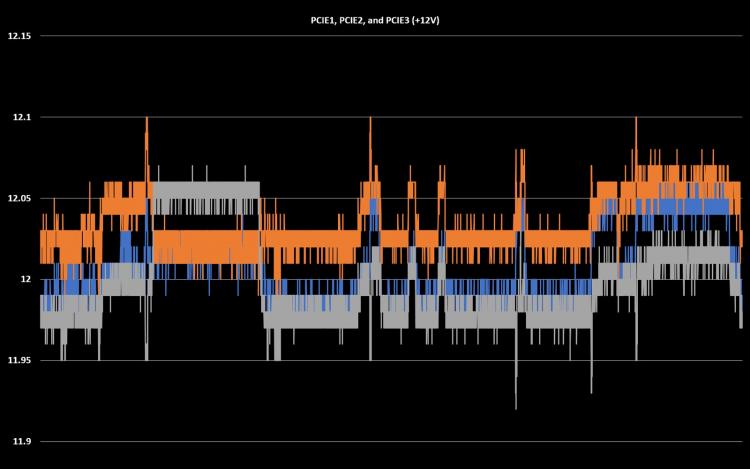

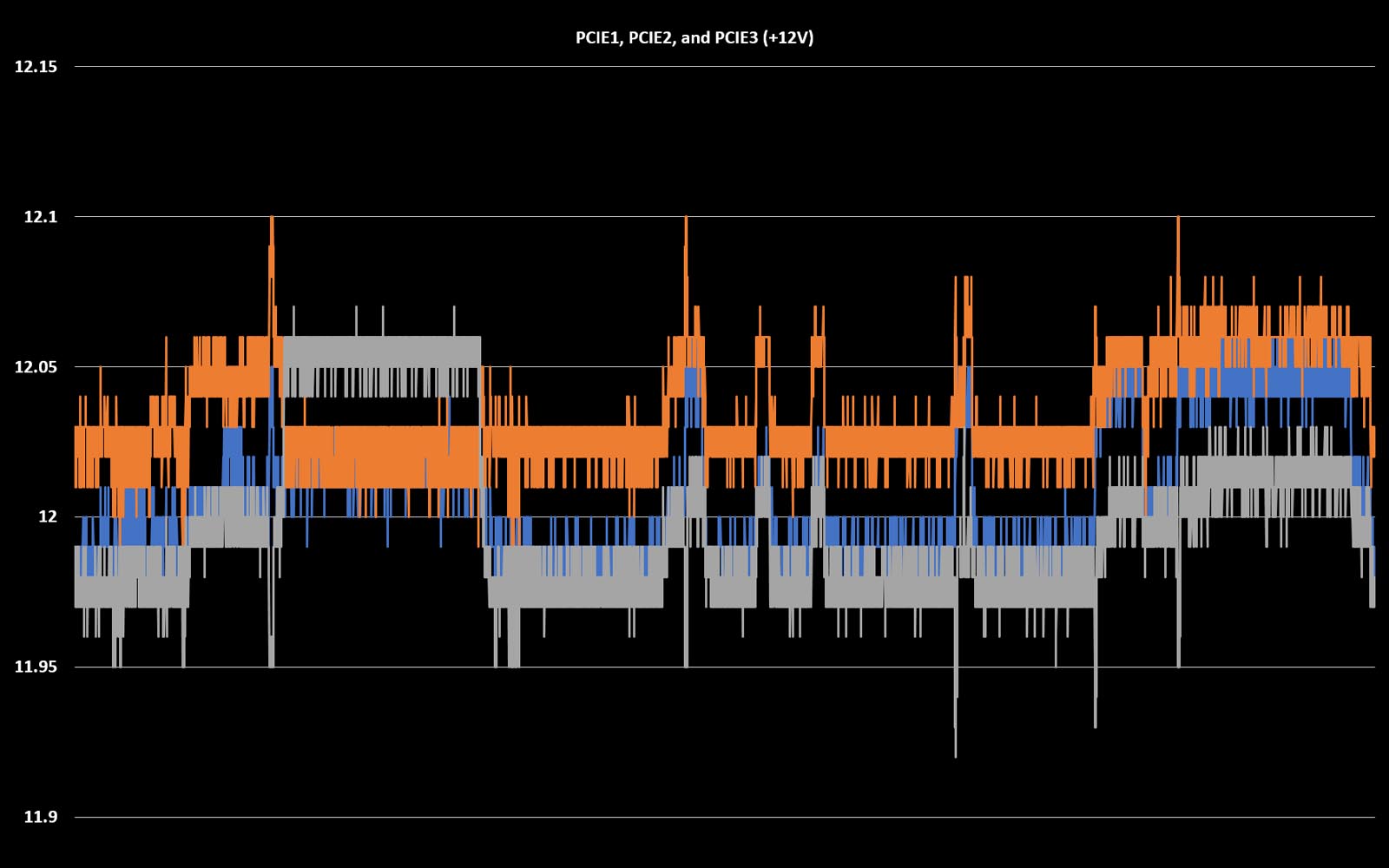

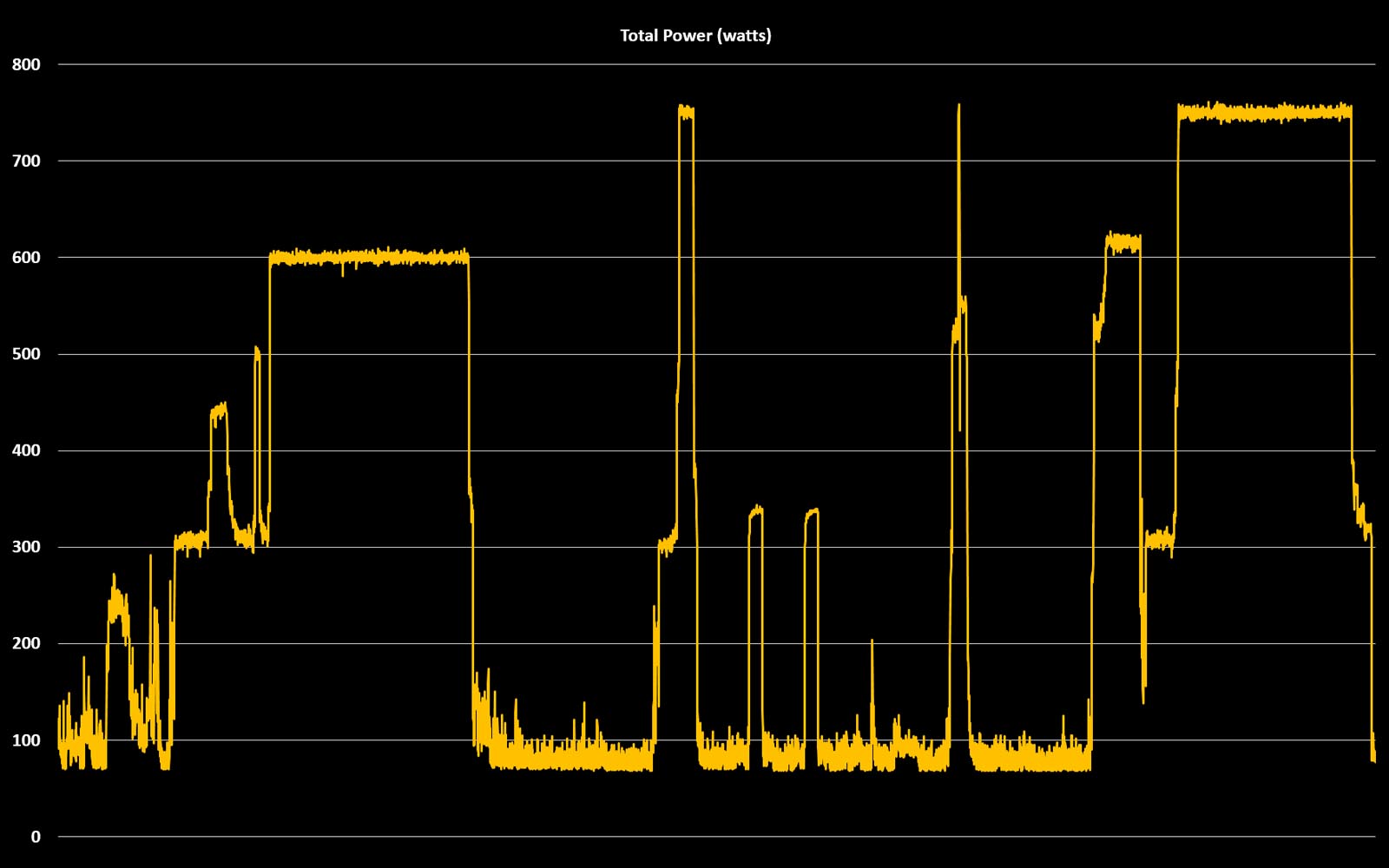

OCCT Stability Tests
Above are the two custom stability tests with the system that aims to pull approximately 40% and 50% load on the PSU, at 600W and 750–760W respectively. Under both workload scenarios, the +12V rail remained within a 0.5% deviation. If you notice the short power load spikes recorded on the PMD2, these occurred while we adjusted the stability test parameters to dial in the exact 10% load increments. These momentary fluctuations also illustrate how the +12V rail responds to rapid changes in power load during the adjustment process.
Acoustics
This PSU attained the Cybenetics Lambda A++ noise level rating which is the highest attainable award. Equipped with the NF-A12x25 HS-PWM, our sound meter picks up around 46~47dBA when the fan is not spinning. The PRIME TX-1600 Noctua Edition features Seasonic’s hybrid cooling mode wherein the fan does not spin at low loads as shown in the photo below.

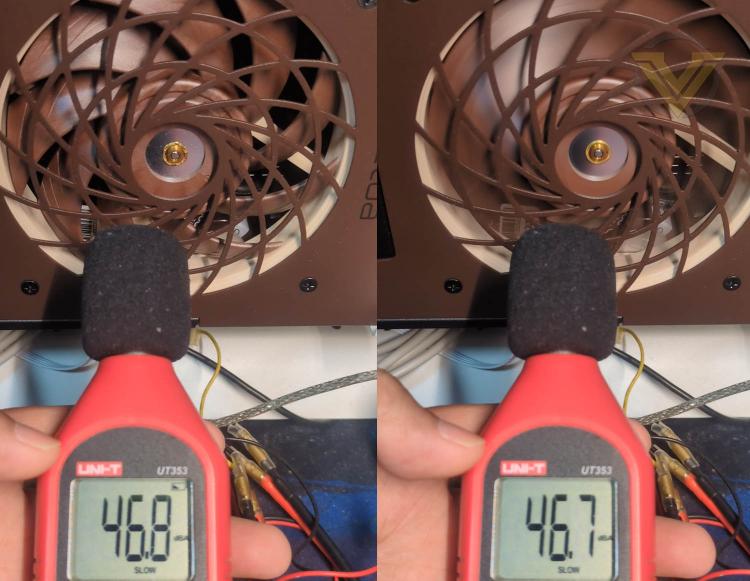

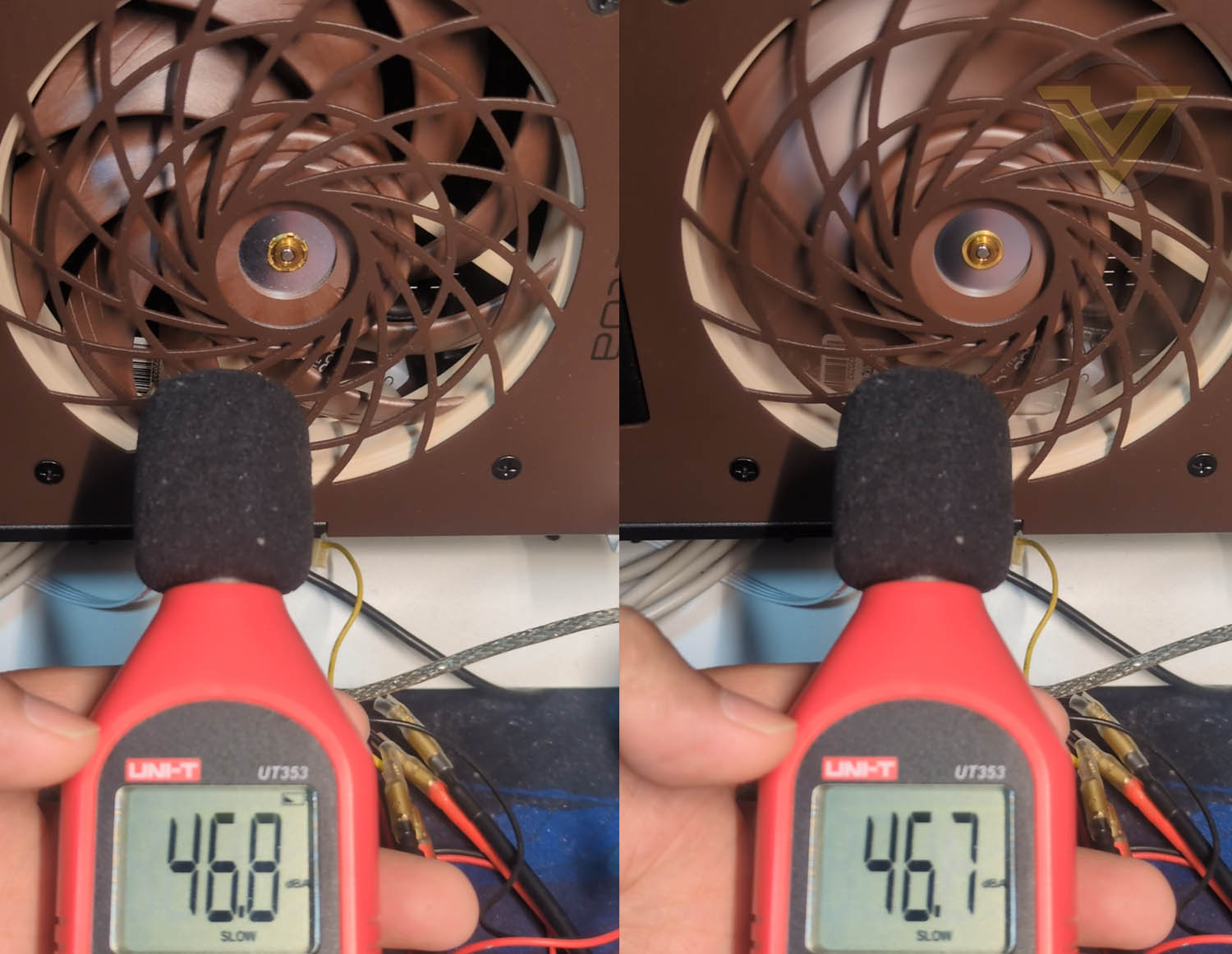

Hybrid Mode On – Left (Fan Off)/ Hybrid Mode Off (Fan Spinning),
Deactivating the hybrid cooling mode allows the fan to operate across all load scenarios while remaining PWM controlled, meaning its behaviour adjusts according to temperature and load. With hybrid mode disabled and the fan spinning, our sound meter recorded roughly the same noise level at low loads, measuring around 46 to 47 dBA. During the OCCT Stability Test, noise levels increased to 55 dBA, although this was with two graphics cards running at full workload. In summary, the PRIME TX-1600 Noctua Edition is unlikely to be a noticeable source of noise within a high performance system.
Conclusion
The Seasonic PRIME TX-1600 Noctua Edition is engineered to deliver best-in-class performance and acoustics, combining Seasonic’s advanced PSU design with Noctua’s renowned expertise in premium, low-noise cooling. It is well suited to the needs of power users and enthusiasts, particularly those running multiple graphics cards or systems that require at least two native 12V-2×6 connectors.The PRIME TX-1600 Noctua Edition also comes with a notably generous accessory bundle, several items of which deserve highlighting as we conclude this review. The inclusion of the ATX 24-pin 90° Adapter and PSU Tester is especially valuable, enabling users to verify the unit’s functionality prior to installation and offering improved flexibility with cable management where a 90° 24-pin connection is preferred.
Performance
The PRIME TX-1600 Noctua Edition lives up to its claims making it one of the best-performing PSUs in the market today. Being the top-end offering from Seasonic, the PRIME TX Series features the latest in PSU design delivering impressive load regulation under 0.5%, as confirmed in our testing. The PSU also features an impressive array of certifications including 80PLUS Titanium and Cybenetics Titanium efficiency certifications alongside the highest Cybenetics Lambda certification of A++ acoustic rating. The PSU’s silent operation is very impressive as expected with the PSU’s premium Noctua cooling fan.
Value
The pricing of the PRIME TX-1600 Noctua Edition differs notably across regions. In Australia this PSU is available on PC Case Gear for AU$979 while the standard PRIME TX-1600 goes for AU$749. In the United States, it is listed at US$654 on Amazon US, while the standard PRIME TX-1600 retails for US$557.77, placing the Noctua Edition roughly US$100 higher. In contrast, the situation in the United Kingdom presents a far more favourable outlook. Based on current forex rates, the US pricing would equate to approximately £497, yet the Noctua Edition is available for only £429 on Amazon UK (around US$564 converted). This positions it as an excellent value proposition in the UK market. For context, the standard Seasonic PRIME TX-1600 is currently priced at £449.99 on Overclockers UK.
If you are a Noctua enthusiast, this PSU will undoubtedly appeal to you. That said, the signature brown colour scheme is not to everyone’s taste and may not suit the aesthetic preferences of many enthusiasts and PC gamers who favour RGB lighting and more conventional themes.
Noctua COMPUTEX 2025 Exhibit
The Seasonic PRIME TX-1600 Noctua Edition is a unique power supply being the first consumer PSU equipped with a genuine Noctua fan. However, there are plans to expand Noctua’s collaboration with Seasonic in creating a broader range of PSU models as seen on COMPUTEX 2025. But for now, the PRIME TX-1600 Noctua Edition remains the only unit that showcases Noctua’s renowned low noise cooling expertise.

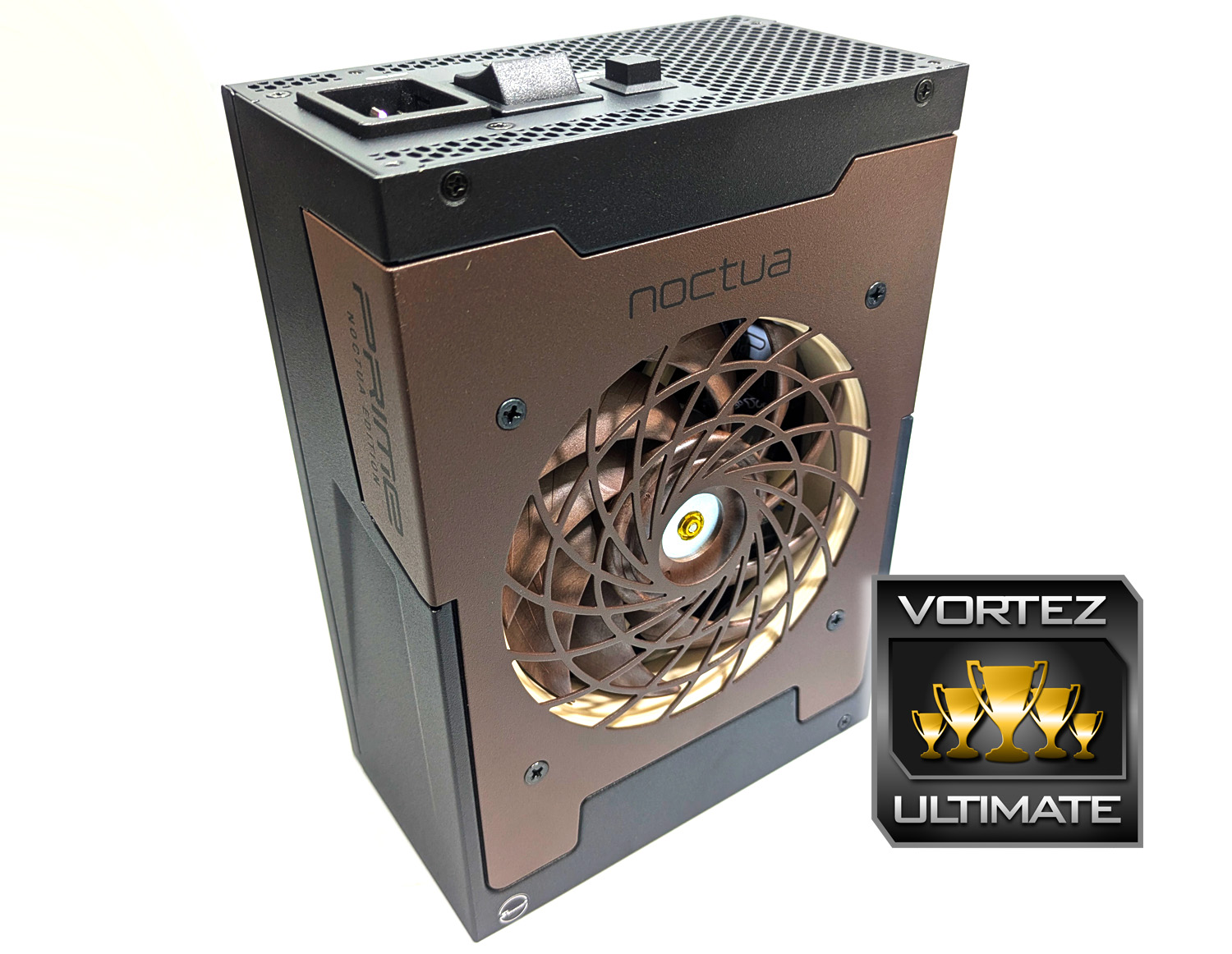

The Seasonic PRIME TX-1600 Noctua Edition delivers exceptional performance and acoustics, combining Seasonic’s flagship PSU engineering with Noctua’s premium silent cooling, supported by strong certifications and a practical accessory bundle. It stands out as a must-have for Noctua fans and a worthwhile investment for high performance users, particularly in the UK where the price offers better value.
Pros
+ 100% Japanese capacitors
+ Extremely tight voltage regulation of 0.5%
+ Impressively silent operation
+ Easy-to-use pre-installation testing accessory included
+ Fully modular cable design
+ Sleeved modular cables in Noctua colours
+ 12-year warranty
Cons
– The Noctua brown colour scheme may not complement typical PC build aesthetics
– Higher price compared to the PRIME TX-1600 variant in certain regions
+ 100% Japanese capacitors
+ Extremely tight voltage regulation of 0.5%
+ Impressively silent operation
+ Easy-to-use pre-installation testing accessory included
+ Fully modular cable design
+ Sleeved modular cables in Noctua colours
+ 12-year warranty
Cons
– The Noctua brown colour scheme may not complement typical PC build aesthetics
– Higher price compared to the PRIME TX-1600 variant in certain regions
