Four-bay enclosure makes use of durable and professional aluminium and steel construction, supporting 3.5" SATA and SAS HDDs.
Four-bay enclosure makes use of durable and professional aluminium and steel construction, supporting 3.5″ SATA and SAS HDDs.
PRESS RELEASE

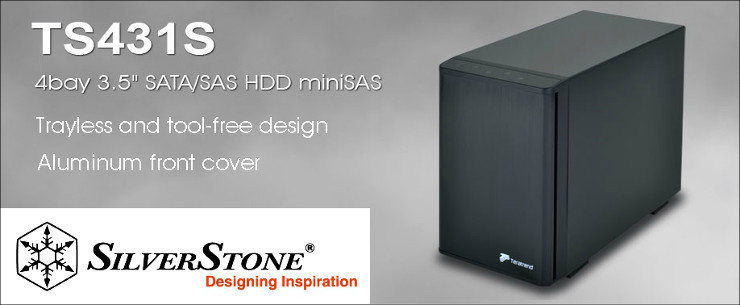

29th September 2014 – SilverStone Technology Co. Ltd. – Introducing the TS431S, a 4-bay storage tower with miniSAS interface. It supports four 3.5” SATA/SAS hard drives with up to 3TB or above per HDD, and the maximum capacity can reach 12TB. TS431S use a high bandwidth miniSAS cable interface to get to surperior and reliable data transfer performance. MiniSAS cabling combines four hard drives SATA connections into one to save the wireing space and reduce failure connection possibilities. Provided JBOD mode which can concentrate separate single hard drives volumn into one big capacity for more flexible utilization.
Special Features:
• miniSAS interface
• Supports four SATA/SAS HDDs
• Hotswappable and Plug & play

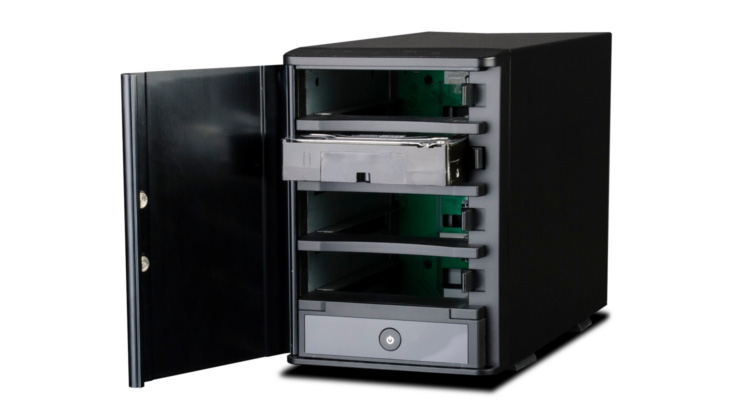

• Trayless and tool-free design
• Supports four SATA/SAS HDDs
• Hotswappable and Plug & play
• Trayless and tool-free design
Technical Specifications
Model No.:- SST-TS431S
Enclosure material:- Aluminum + SECC
Color:- Black
Cooling system:- 60mm fan x 3
Certifications:- CE、FCC、RoHS compliance
Power Supply:- Internal universal power supply switch (115V/230V)
Input: AC 100-130V/200-260V, 50Hz/60Hz
Output: DC +5V/6A +12V/11A
HDD Drive Support:- SATA III/SATA II/SATA I/SAS*
Supported size:- 3.5” SAS/SATA HDD/SSD
HDD capacity:- Up to 4TB per HDD is supported
Enclosure interface:- Mini-SAS port x1
Minimum System Requirements:- Windows XP, Vista, 7; Mac OS 10.x; Linux Kernel 2.6.31 or above
LED indicator:
– Power LED – Blue for power on
– HDD status LED – Blue for HDD detected
– Red flashing for HDD access
Net Weight:- 3300±20g
Dimension:- 266mm (D) x 187mm (W) x 130mm (H)
Accessories:
– TS431S (hard drives not included)
– Power cord x 1
– User manual x 1
Enclosure material:- Aluminum + SECC
Color:- Black
Cooling system:- 60mm fan x 3
Certifications:- CE、FCC、RoHS compliance
Power Supply:- Internal universal power supply switch (115V/230V)
Input: AC 100-130V/200-260V, 50Hz/60Hz
Output: DC +5V/6A +12V/11A
HDD Drive Support:- SATA III/SATA II/SATA I/SAS*
Supported size:- 3.5” SAS/SATA HDD/SSD
HDD capacity:- Up to 4TB per HDD is supported
Enclosure interface:- Mini-SAS port x1
Minimum System Requirements:- Windows XP, Vista, 7; Mac OS 10.x; Linux Kernel 2.6.31 or above
LED indicator:
– Power LED – Blue for power on
– HDD status LED – Blue for HDD detected
– Red flashing for HDD access
Net Weight:- 3300±20g
Dimension:- 266mm (D) x 187mm (W) x 130mm (H)
Accessories:
– TS431S (hard drives not included)
– Power cord x 1
– User manual x 1
You can find further information here: http://www.silverstonetek.com/product.php?pid=423&area=en
The recommended End User price (excl. VAT) is $191.36 USD. The TS431S will be available on Oct. 9th.
