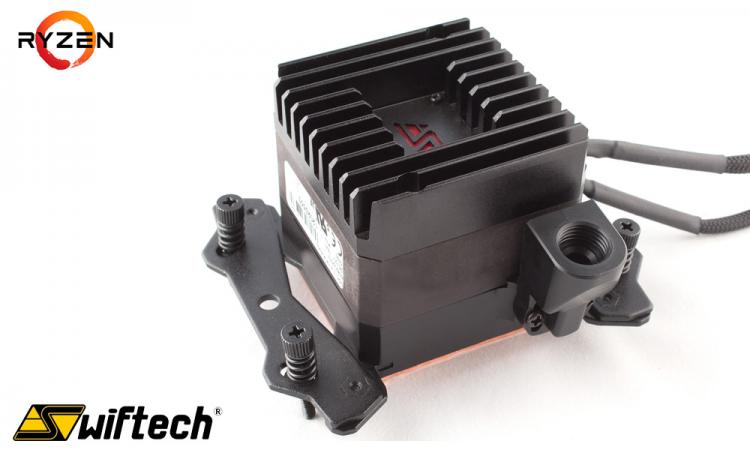

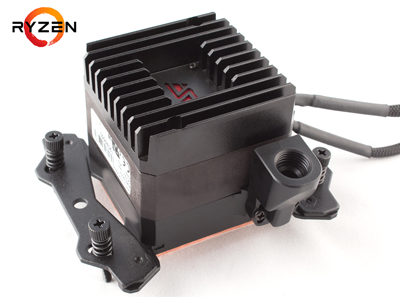

Swiftech releases the new Apogee Drive II AM4 model that’s compatible with the AMD Ryzen AM4 socket processors along with older generation AMD sockets. The Apogee Drive II is a unique liquid cooling water block that has an integrated pump in it that offers a space-saving liquid cooling solution for builders. The pump in the Apogee Drive II is the Swiftech MCP35X pump which offers the best hydraulic performance and is known to be the best-in-class pump in the market.
Apogee Drive II Features
Best cooling performance: the Apogee Drive II manages to achieve better thermal performance than the award-winning Apogee HD.
Best hydraulic performance: The PWM controlled integrated MCP35X pump of the Apogee Drive II is the world’s only CPU water block that can be considered as a flow enhancing device, as opposed to a flow-robbing device.
Best retention mechanism: proven time and again to satisfy beginners and hard-core enthusiasts alike for its ease of use, reliability, and repeatable results.
Space-saver: Compact form factor enables liquid cooling in space constrained applications.
Widely compatible: The Apogee Drive II uses adjustable standard G1/4 inlet and outlet ports, compatible with all compression fittings.
Gaming aesthetics: The water block features an illuminated logo in 3 colours: Red, Blue, or Green.
Technical Specifications
Motor type: Electronically commutated, brushless DC, spherical motor
Nominal voltage: 12 V DC
Operating voltage range: 9 to 13.4 VDC
Max. nominal power (@12 V): 18 W
Max. nominal current (@12 V): 1.5 A
Max. nominal head (@12 V): 14.7 ft (4.4m)
Max nominal discharge (@12 V): ~ 4.75 GPM (17.5 LPM)
Maximum pressure: 22 PSI (1.5 BAR)
Temperature range: Up to 140 °F (60 °C)
Electrical power connector: Molex 4 pin
PWM + RPM Signals: 4-pin connector
Speed adjustment range: 1300 to 4500 rpm
RoHS: Compliant
MTBF: 50,000 Hours
Motor type: Electronically commutated, brushless DC, spherical motor
Nominal voltage: 12 V DC
Operating voltage range: 9 to 13.4 VDC
Max. nominal power (@12 V): 18 W
Max. nominal current (@12 V): 1.5 A
Max. nominal head (@12 V): 14.7 ft (4.4m)
Max nominal discharge (@12 V): ~ 4.75 GPM (17.5 LPM)
Maximum pressure: 22 PSI (1.5 BAR)
Temperature range: Up to 140 °F (60 °C)
Electrical power connector: Molex 4 pin
PWM + RPM Signals: 4-pin connector
Speed adjustment range: 1300 to 4500 rpm
RoHS: Compliant
MTBF: 50,000 Hours
Check out the Swiftech Apogee Drive II for Intel and AMD platform on the link below:
http://www.swiftech.com/apogeedrive2.aspx
