Team Group announces the launch of its fastest storage solution yet, the T-FORCE CARDEA M.2 PCIe solid state drive. The T-FORCE CARDEA M.2 SSD uses x4 PCIe 3.0 interface offering blistering speeds of up to 2,600 MB/s read speeds along with TRIM and NVMe support.
Team Group announces the launch of its fastest storage solution yet, the T-FORCE CARDEA M.2 PCIe solid state drive. The T-FORCE CARDEA M.2 SSD uses x4 PCIe 3.0 interface offering blistering speeds of up to 2,600 MB/s read speeds along with TRIM and NVMe support.

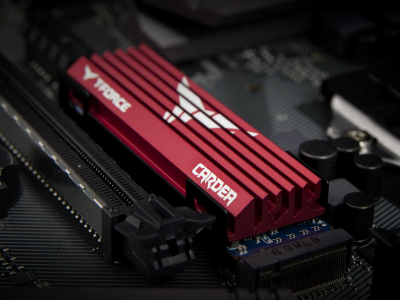

Team Group announces the launch of its fastest storage solution yet, the T-FORCE CARDEA M.2 PCIe solid state drive. The T-FORCE CARDEA M.2 SSD uses x4 PCIe 3.0 interface offering blistering speeds of up to 2,600 MB/s read speeds along with TRIM and NVMe support. The CARDEA M.2 gaming SSD features a gaming style heat sink that adds a unique and aggressive look along with enhanced cooling. It is the perfect upgrade for your gaming rig. The CARDEA supports the latest NVMe standard. The system communicates directly via the PCIe bus and connects to PCIe controller of the chipset or processor, so you get improved transfer speeds that lead to high-performance data transfer experience with reduced lag or delay.
Watch the product overview video of the Team Group T-FORCE CARDEA PCIe SSD below
Extreme Gaming Performance
The Team Group T-FORCE CARDEA SSD utilizes new-generation PCIE Gen3 x4 to reach speeds of up to 2,600MB/s read and 1,400MB/s write sequential performance and with up to 180K/140K IOPS in random read/write operations. With such performance, overall performance of your computer is increased greatly be it for gaming or other applications.
Patented Cooling Design
Team Group uses a patented cooling technology on the CARDEA M.2 PCIe SSD that offers high-performance cooling. The SSD uses a fin design that allows convection or direct air cooling to improve heat dissipation thus ensuring stable performance even at high loads. The T-Force CARDEA went through rigorous tests that shows operating temperatures 15% lower than typical bare M.2 SSDs.
Reliable and Efficient
The Team Group T-Force CARDEA supports S.M.A.R.T function and has built-in smart management algorithms functions such as garbage collection and TRIM command. Such features guarantee optimal efficiency and preserves the lifespan of the SSD. Smart Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy and reliability of data transfer.
Specifications
Interface: PCI-e 3.0 x4 with NVMe 1.2
Capacity: 240GB / 480GB
Color: Red
Voltage : DC +3.3V
Operation Temperature: 0C to 70C
Storage Temperature: -40C to 80C
Terabyte Written:
– 240GB / 335 TB
– 480GB / 670 TB
Performance:
Crystal Disk Mark:
– 240GB: Read/Write: up to 2,600/1,400 MB/s
– 480GB: Read/Write: up to 2,650/1,450 MB/s
IOPS:
240GB: Read/Write: 180K/140K IOPS Max
480GB: Read/Write: 180K/150K IOPS Max
Weight: 45g
Dimensions: 12.9(L) x 80.1(W) x 23.4(H) mm
Humidity: H 90% under 40°C (operational)
Vibration: 80Hz~2,000Hz/20G
Shock: 1,500G/0.5ms
MTBF: 2,000,000 hours
Interface: PCI-e 3.0 x4 with NVMe 1.2
Capacity: 240GB / 480GB
Color: Red
Voltage : DC +3.3V
Operation Temperature: 0C to 70C
Storage Temperature: -40C to 80C
Terabyte Written:
– 240GB / 335 TB
– 480GB / 670 TB
Performance:
Crystal Disk Mark:
– 240GB: Read/Write: up to 2,600/1,400 MB/s
– 480GB: Read/Write: up to 2,650/1,450 MB/s
IOPS:
240GB: Read/Write: 180K/140K IOPS Max
480GB: Read/Write: 180K/150K IOPS Max
Weight: 45g
Dimensions: 12.9(L) x 80.1(W) x 23.4(H) mm
Humidity: H 90% under 40°C (operational)
Vibration: 80Hz~2,000Hz/20G
Shock: 1,500G/0.5ms
MTBF: 2,000,000 hours
Team Group gives the T-FORCE CARDEA SSD at Limited Three-Year warranty with free technical support service. For more information on the T-FORCE CARDEA PCIe SSD, visit the Team Group website.
