ZOTAC RTX 3060 Ti Twin Edge OC Review

NVIDIA has released its 4th GPU under the Ampere Arcitecture, is the ZOTAC RTX 3060 Ti Twin Edge OC graphics card worth considering for 1440p gamers?

Product on Review: RTX 3060 Ti Twin Edge OC
Manufacturer & Sponsor: ZOTAC
Street Price: £469 GBP | $459 USD | $800 AUD

In the last quarter of 2020, we’ve been treated to a plethora of graphics card released on both sides of the aisle as things hot up within the high-end division. NVIDIA’s Ampere-based GPUs have arrived and made a quite an impact on the market, and not all of it is positive. Stock issues surrounding the RTX 30-series has been an ongoing dilemma for those wanting to upgrade.

This week NVIDIA are back again with yet another graphics card launch, this time it’s the turn of the RTX 3060 Ti, the 4th GPU to launch under Ampere architecture. On paper, this GPU is poised to take on 1440p but may also be relevant to those who settle for 1080p too.

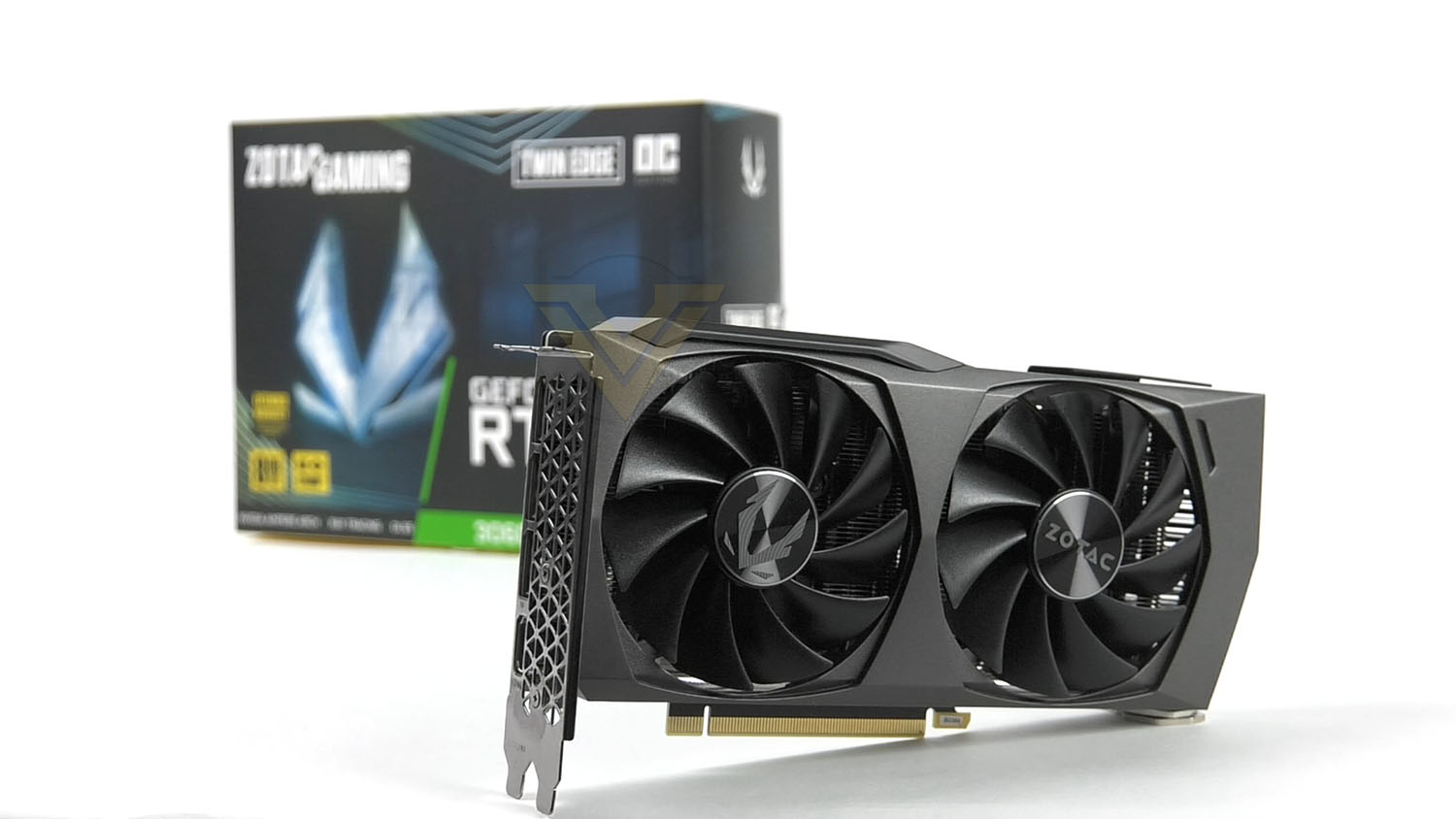

In the spotlight today we have the ZOTAC RTX 3060 Ti Twin Edge OC. This is a factory overclocked variant of the GA-104 and also carries ZOTAC’s same thermal solution seen on the RTX 3070.

Should this be on your shortlist? Let’s find out!

ZOTAC on their Twin Edge OC

Get Amplified with the ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed GDDR6 memory, the ZOTAC GAMING GeForce RTX 3060 Ti Twin Edge gives rise to amplified gaming with high fidelity.

Technical Specifications

Below are the technical specifications surrounding the Twin Edge OC:

GPU
GA-104
Shader Units
4864
Video Memory
8GB GDDR6
Memory Bus
256-bit
Engine Clock Boost
1695MHz
Memory Clock
14000MHz Effective
PCI Express
4.0
Display Outputs
3x DisplayPort 1.4
1x HDMI 2.1
1x USB Type-C
Recommended Power Supply
650W
DirectX
12 API feature level 12_2
OpenGL
4.6
Cooling
Twin cooling fans
Slot Size
2
Supported OS
Windows 10
Card Length
222.1mm x 115.6mm x 38.2mm

Closer Look Video Review

For this review we’ve produced a video of Twin Edge OC. In this video we go into great detail about this graphics card, walking you through all of the features and detaching the cooler for a look at the thermal solution and innards. View the video here or watch below:

Test Setup & Methodology

HOW WE TEST GRAPHICS CARDS

Testing a graphics card is an extremely lengthy process. We sometimes see reviews where a graphics card has been tested using out of date equipment, out of date games and even out of date drivers. While the latter can be excused due to the sheer amount of driver updates making a thorough review impossible we will however notify the reader when we have used a different driver to the normal for example a pre-release driver. For the most part however we will always use the same hardware and latest drivers so this does certainly need to be taken into consideration when viewing our testing results. Each game and benchmark is tested times with the lowest and highest scores omitted out of the 5 results and the average then taken from the three remaining to give us our final result for each resolution and setting used.

HARDWARE

In Q3 2020 we decided to move on from our Intel X99-based graphics card test system to embrace AMD Ryzen Gen3. The basis for this was quite simple, AMD’s platform is one of the most popular choices for gamers and by using such a configuration, we can hopefully showcase to our readership what they can expect. In the past we’ve used HEDT platforms and while this does indeed align itself to the bleeding edge for a computer system, it doesn’t reflect what most gamers will be using.

With NVIDIA and AMD now using PCIe 4.0 for their bus interface on graphics cards, AMD Ryzen Gen3 and the X570 chipset are well-equipped to test appropriately.

Graphics Cards on test:
AMD RX 5700
AMD RX 5700 XT
AMD RX 6800
XFX MERC319 RX 6800 XT
NVIDIA RTX 2060
NVIDIA RTX 2060 SUPER
NVIDIA RTX 2070 SUPER
NVIDIA RTX 2080 SUPER
NVIDIA RTX 2080 Ti
ZOTAC RTX 3060 Ti Twin Edge OC
ASUS TUF RTX 3080 OC
ASUS ROG STRIX RTX 3090 OC

Special thanks go to AMD, MSI, Corsair, Noctua and AverMedia for providing the hardware configuration for our graphics card reviews:

Motherboard: MSI PRESTIGE X570 CREATION
CPU: AMD Ryzen 7 3800X
RAM – 16GB (2x8GB) Corsair LPX Vengeance DDR4 @ 3000MHz
Power Supply – CORSAIR HX1050
Hard Drive – Samsung 830 EVO 250GB + Crucial MX300 2TB
Cooler – CORSAIR Hydro Series™ H150i Pro 360mm Extreme Performance Liquid CPU Cooler
Capture Card – Avermedia Live Gamer Extreme 2

BENCHMARKS

If you are a regular reader of our reviews you will know we like to test the latest hardware with the latest games and benchmarks on the market. Here are the games we’ve chosen:

Horizon Zero Dawn
Control
Shadow of the Tomb Raider
F1 2020
A Total War Saga: Troy

To capture framerates we use a combination of in-game benchmark tools and FRAPS.

We also take into consideration the benchmarkers out there so have included three of the more popular synthetic benchmarks available:

3DMark Time Spy
3DMark Port Royal
Unigine: SuperPosition

In light of the new RTX and DLSS features, we have also added in some tests to cover this tech to provide some analysis, showcasing what users can expect with/without such a feature enabled. For this we are using:

3DMark DLSS
Control – RT Off/RT On

Let’s see how today’s graphics card performed…

Power, Temperatures, Acoustics

To test for power consumption, we take a measurement from the plug socket. It is important to note that the figures below represent total system power use and not just the GPU. The CPU was always in a fixed state so did not affect the additional power load when the GPU was placed under 100% load using AIDA64 stability test (GPU Only) which was ran for 20 minutes at which point a load reading was taken. Idle readings were taken 5 minutes after system boot to ensure any background services and applications had loaded.

TEMPERATURE

To test temperatures we measured idle temperatures after booting windows, letting all applications finish loading and ran a few benchmarks. Once the benchmarks were complete we left the card to reach a cooling plateau where we then took the idle temperatures. For the load tests we set Unigine SuperPosition running in game mode continuously for ~30 minutes and recorded the peak/maximum GPU temperature.

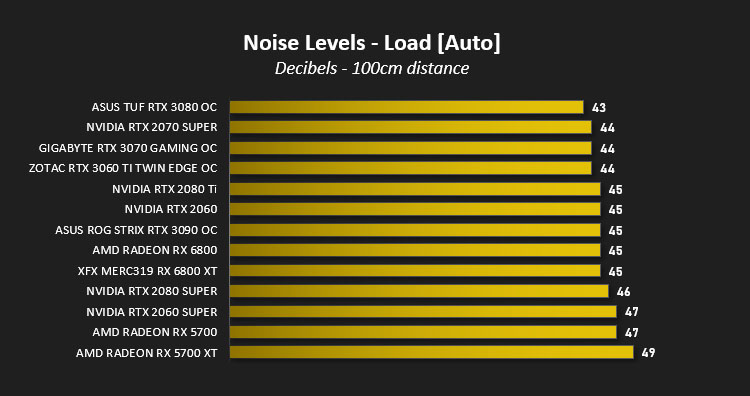

ACOUSTICS

For the purpose of testing audio levels we have the NDI KC-3300 sound level meter. During the temperature recording above, while in Unigine SuperPosition gamemode we monitored the audio and the results are found below. All graphics cards are tested in their out of the box state (auto).

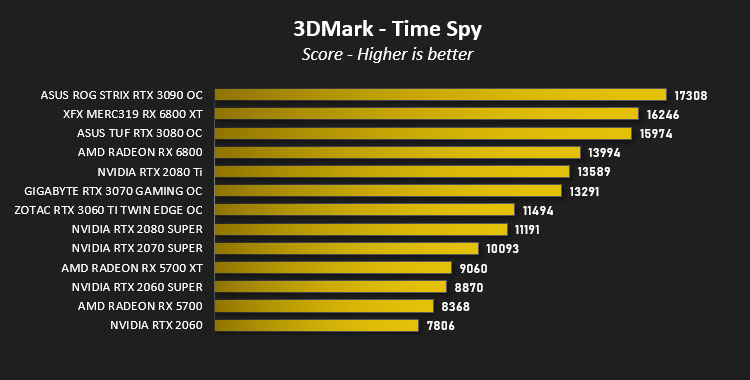

DX12: 3DMark Time Spy

Download your copy now

With its pure DirectX 12 engine, which supports new API features like asynchronous compute, explicit multi-adapter, and multi-threading, 3DMark Time Spy is the ideal benchmark for testing the DirectX 12 performance of the latest graphics cards.

DX12: 3DMark Port Royal

Download your copy now

3DMark Port Royal is the world’s first dedicated real-time ray tracing benchmark for gamers. You can use Port Royal to test and compare the real-time ray tracing performance of any graphics card that supports Microsoft DirectX Raytracing. As well as benchmarking performance, 3DMark Port Royal provides a realistic and practical example of what to expect from ray tracing in upcoming games.

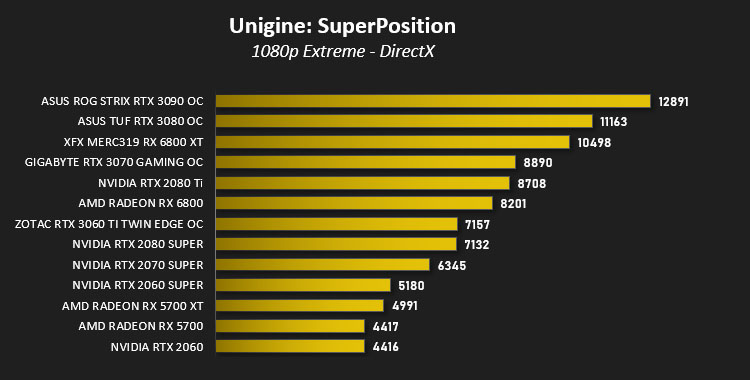

DX11: Unigine SuperPosition

Superposition is a new-generation benchmark tailored for testing reliability and performance of the latest GPUs. Top-notch visuals, support for VR-devices and an interactive mode with mini-games — the list of features built into Superposition could go on and on.

DX12: Horizon Zero Dawn

Horizon Zero Dawn is an action role-playing game developed by Guerrilla Games and published by Sony Interactive Entertainment. The plot follows Aloy, a hunter in a world overrun by machines, who sets out to uncover her past

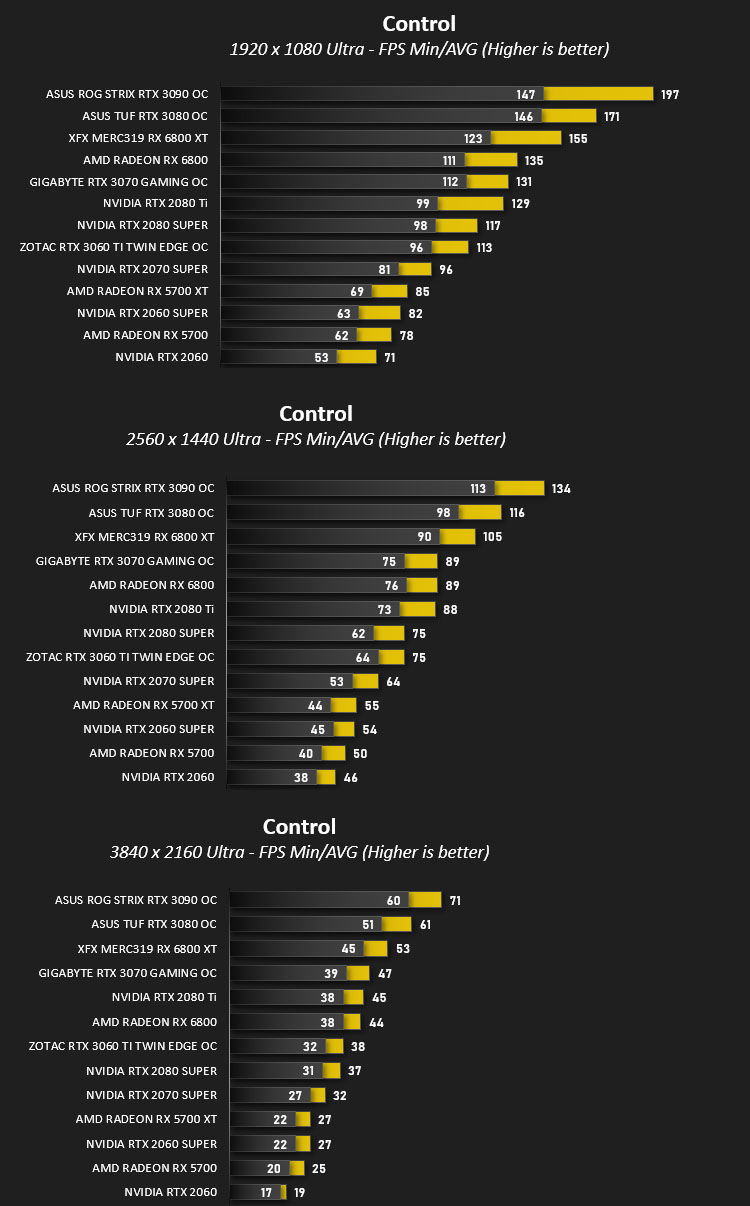

DX12: Control

Control Ultimate Edition contains the main game and all previously released Expansions (“The Foundation” and “AWE&quot

in one great value package. Winner of over 80 awards, Control is a visually stunning third-person action-adventure that will keep you on the edge of your seat.

DX12: Shadow of the Tomb Raider

Shadow of the Tomb Raider is an action-adventure video game developed by Eidos Montréal in conjunction with Crystal Dynamics and published by Square Enix. It continues the narrative from the 2013 game Tomb Raider and its sequel Rise of the Tomb Raider, and is the twelfth mainline entry in the Tomb Raider series.

DX12: F1 2020

F1® 2020 allows you to create your F1® team for the very first time and race alongside the official teams and drivers. Alternatively, challenge your friends in new split-screen with casual race options for more relaxed racing. Compete on 22 circuits, with current and classic content.

DX12: A Total War Saga: TROY

A Total War Saga: TROY is the first in the award-winning strategy series to focus on the Bronze-Age Mediterranean and the legendary twenty-year conflict between the kingdoms of Troy and Mycenaean Greece, known as the Trojan War.

Overall Performance

Here we take a look at the overall performance of the graphics card. This figure is determined by finding the average FPS across all of the settings used in a particular benchmark(game) to give us an overall value.

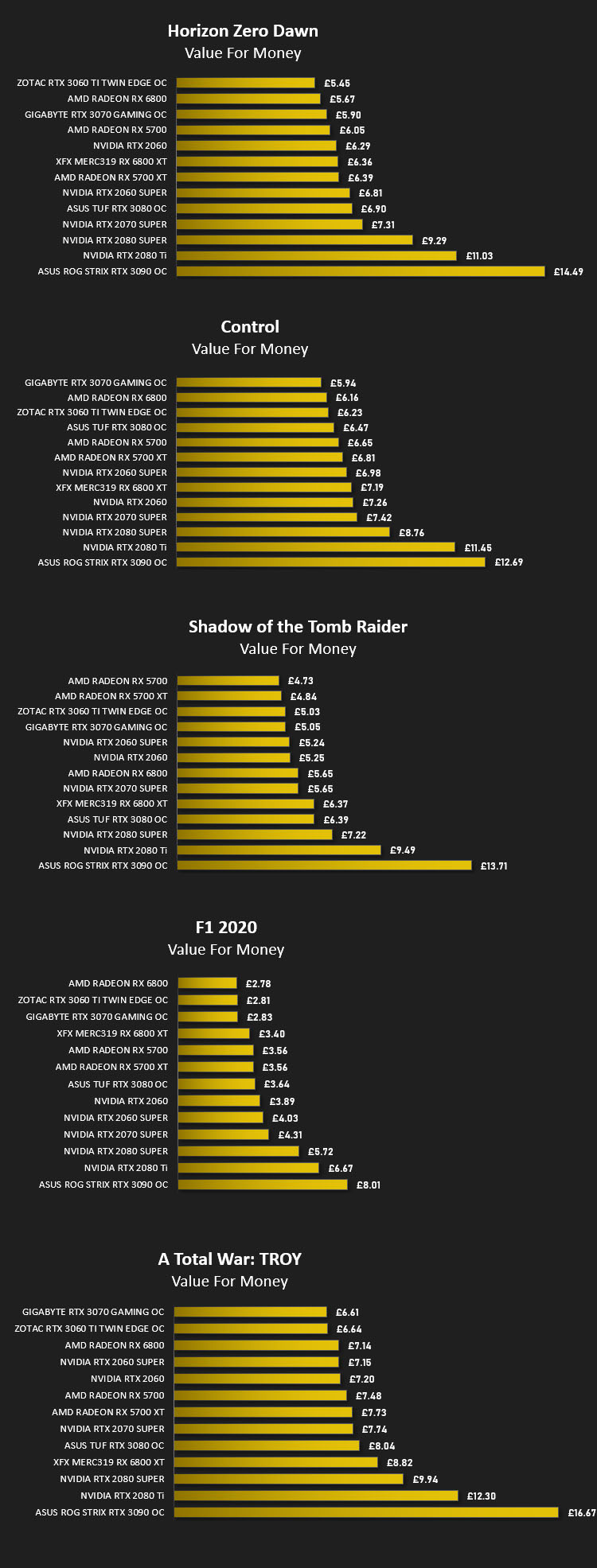

Value For Money

We make a simple calculation for this set of results. For each game we add all of the resulting FPS totals together and then divide by the four sets to give us an overall performance figure. While the figures alone do not give you an accurate picture of how the card will perform in any given scenario, they do tell you, when averaged, which GPU is the more capable across all of the benchmarks and settings tested.

Please note: we’ve used GBP for currency but since this is relative – regardless of which currency you use, this will give you a good indication of value for money.

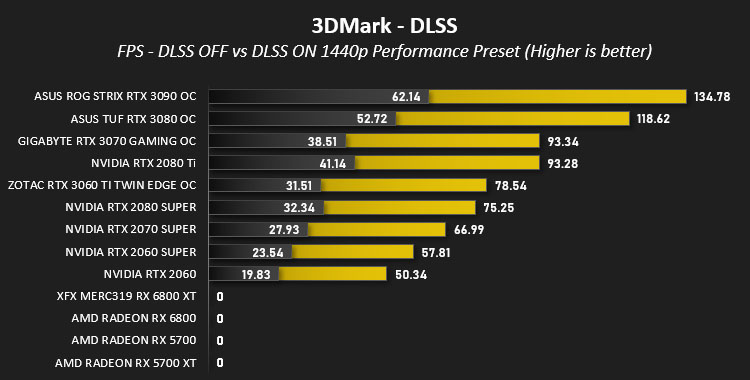

DLSS Analysis: 3DMark DLSS

Deep Learning Super Sampling (DLSS) is an NVIDIA RTX technology that uses the power of deep learning and AI to improve game performance while maintaining visual quality.

Ray Tracing Analysis: Control

Control is an action-adventure video game title which has the ability to take advantage of real-time ray tracing. For this test we ran the game in 1440p with Ultra Detail set. Under the settings we enable RTX and assign the preset as “High”. Below are the results with RTX On and RTX Off.

Conclusion

Understandably the new RTX 3060 Ti will rest just below the RTX 3070 in terms of performance and will offer up similar performance to that of the RTX 2080/SUPER from last generation and yet the pricing is significantly different – in the consumers favour.

Although this graphics card is capable of 4K, the sweetspot is found within 1440p and even 1080p. 1080p becomes a better option should you desire all of the eye candy, including Ray Tracing and a higher refresh rate display. RTX 3060 Ti has no problems handling the latest games and will provide smooth gameplay in even the most demanding of triple-A titles.

If we turn to ZOTAC and their efforts with this particular model of the RTX 3060 Ti, we’re left satisfied that the Twin Edge OC is a worthwhile option. The factory overclock may not be significant over the stock/reference frequency but it still taps into better overall performance and the custom cooler emits little noise under load, making it a good option for sound sensitive gamers.

At a cost of £469 GBP | $459 USD | $800 AUD, this model is quite a bit more than the MSRP for the RTX 3060 Ti, but it does come with a lengthy 5 years warranty which other partners don’t offer.

ZOTAC’s RTX 3060 Ti Twin Edge OC may be small, but it makes a big statement. If you’re looking for a new GPU to slot into your system and game at 1080p/1440p with all the eye candy switched on, you should consider this!

Pros
+ Pleasant to the eye
+ Reasonably compact
+ Performs very well
+ Low-noise cooler
+ Zero decibel technology
+ 5 years warranty

Cons
– Power hungry
– Small factory overclock

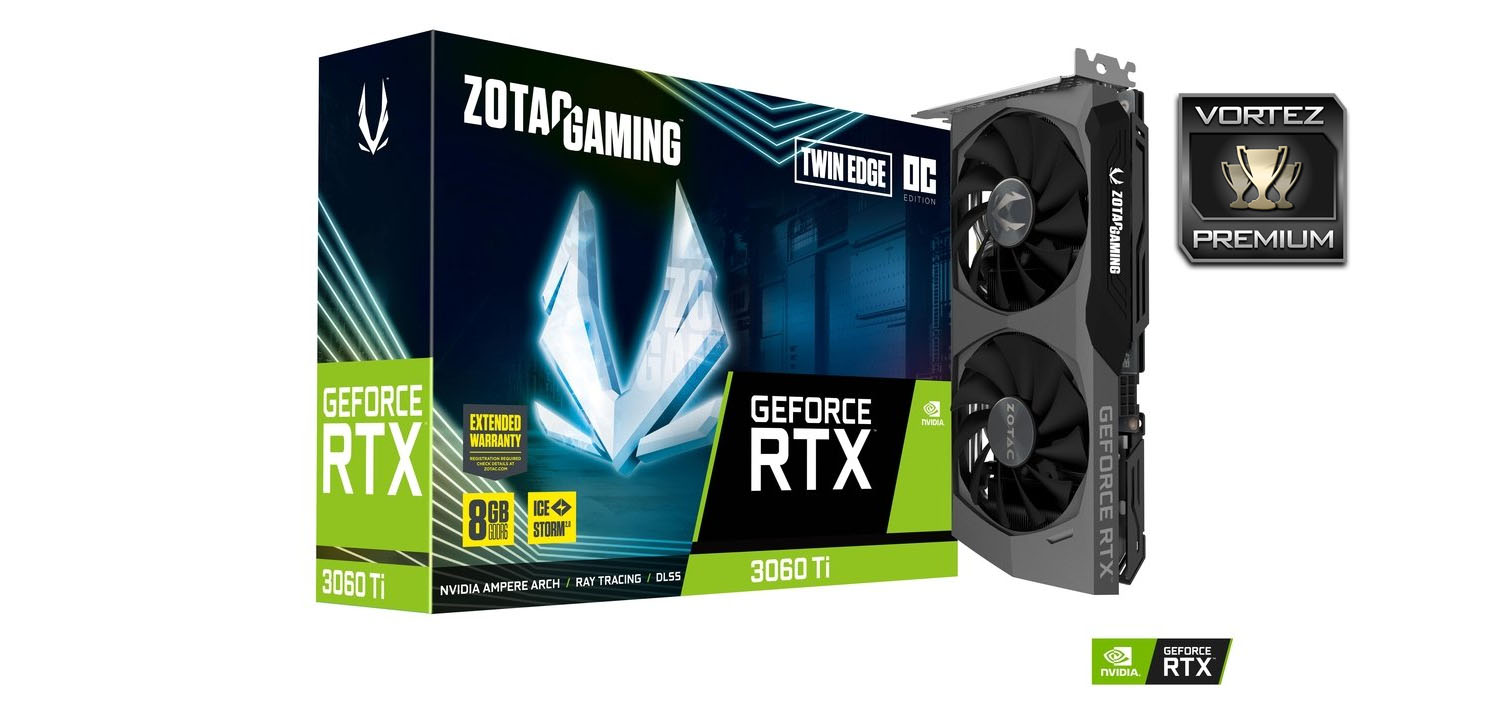

Click here for an explanation of our awards at Vortez.net.
