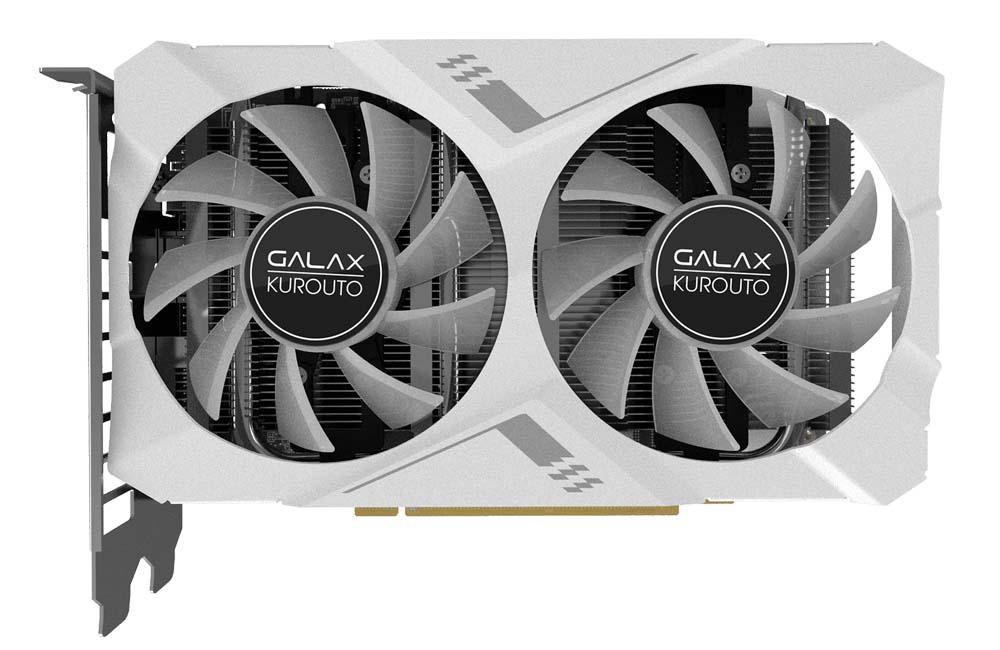

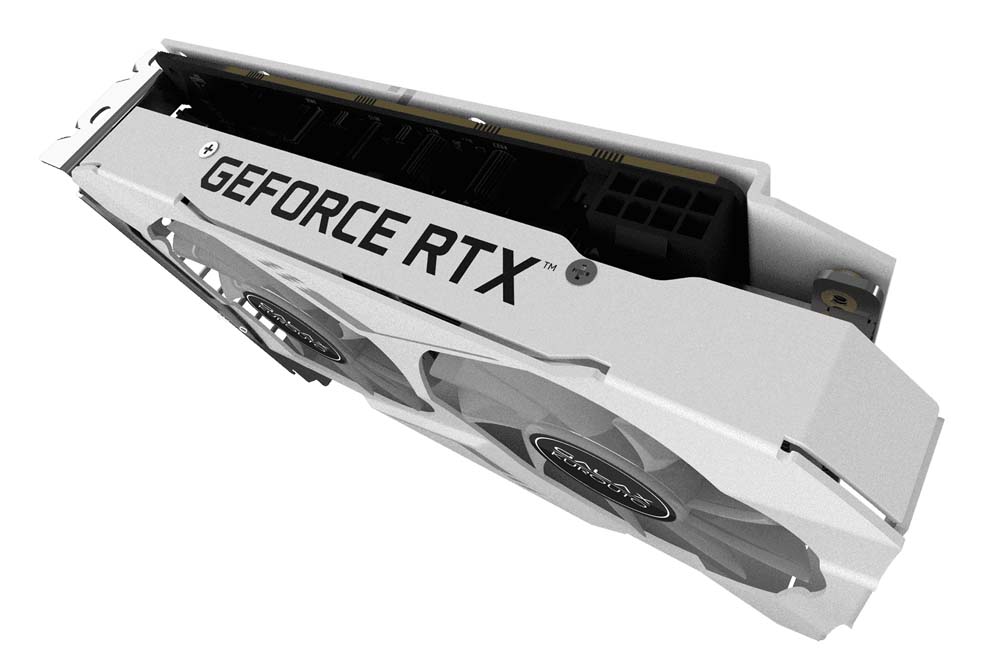

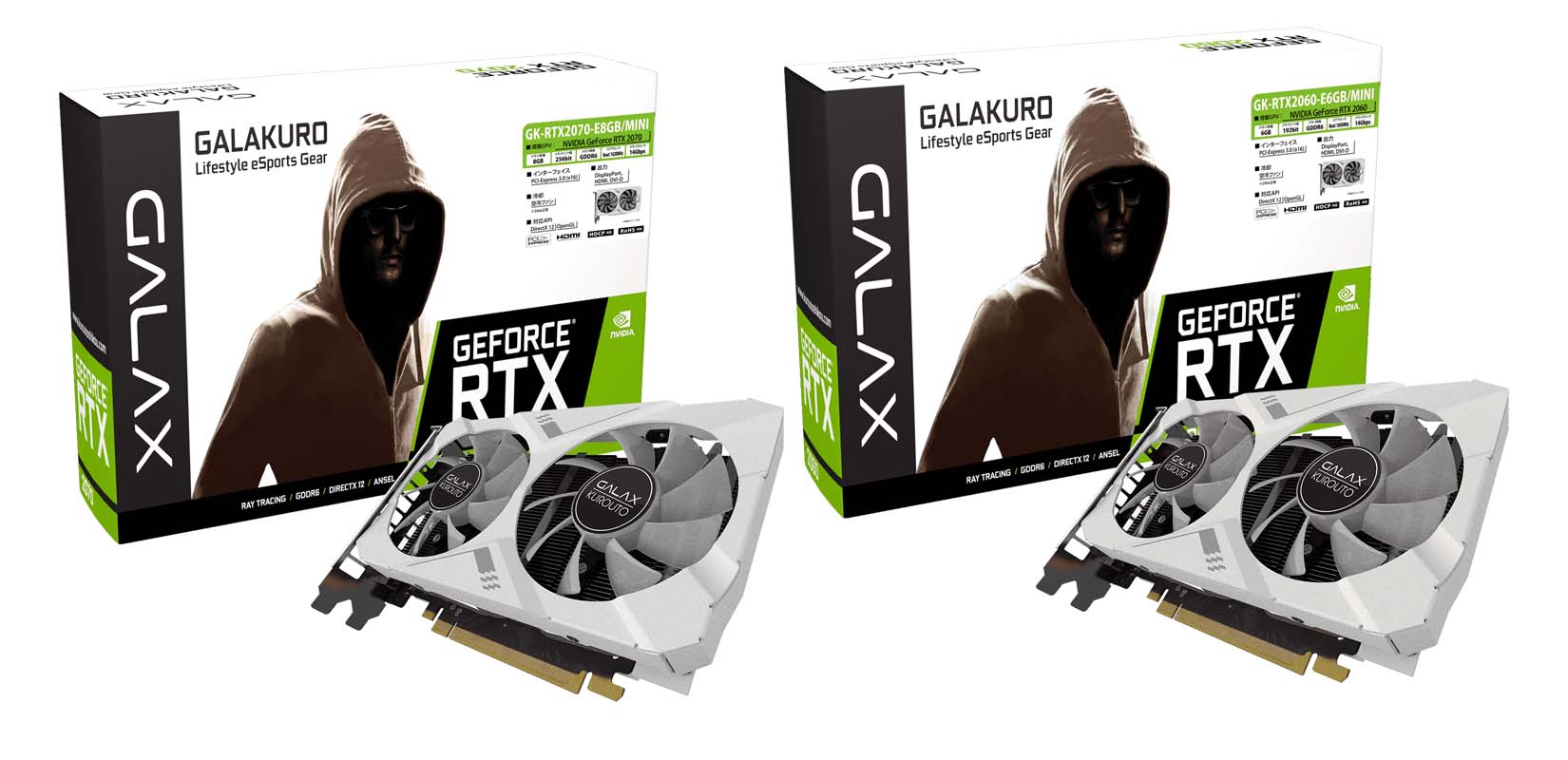

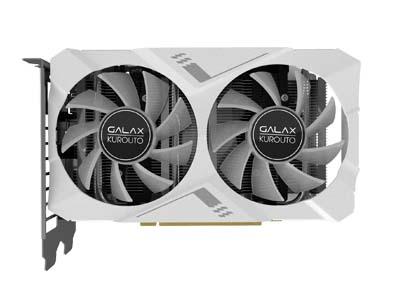

GALAX’s Japanese counterpart lists the ‘GALAKURO’ GeForce RTX 2070 Mini and GeForce RTX 2060 Mini graphics cards featuring a silver shroud and a very compact form-factor with a length of just 175mm.
GALAX’s Japanese counterpart lists the ‘GALAKURO’ GeForce RTX 2070 Mini and GeForce RTX 2060 Mini graphics cards featuring a silver shroud and a very compact form-factor with a length of just 175mm.
GALAX’s Japanese counterpart lists the ‘GALAKURO’ GeForce RTX 2070 Mini and GeForce RTX 2060 Mini graphics cards featuring a silver shroud and a very compact form-factor with a length of just 175mm, shorter than the ZOTAC GAMING GeForce RTX 2070 Mini measuring at 211mm long. The GALAX GeForce RTX 2070 Mini (GK-RTX 2070-E 8 GB/MINI) and GALAX GeForce RTX 2060 Mini (GK-RTX 2060-E 6 GB/MINI) both feature a two-slot design and the same boost clocks as the NVIDIA reference design at 1620MHz and 1695Mhz respectively. GALAX didn’t reveal pricing and availability.
The GALAX GeForce RTX 2070 Mini and GeForce RTX 2060 Mini graphics cards are specially designed to have a shorter PCB compared to the reference design and other custom models. Both are recommended for small-form-factor PCs that require smaller components to create efficient airflow and advanced cable management. Both cards packs 1x DisplayPort, 1x HDMI, and 1x DVI-D ports.
GALAX Xtreme Tuner Plus
Xtreme Tuner Plus is an innovative overclocking and monitoring tool with an interface designed for self-made PC users. GALAX added a dedicated version of the Xtreme Tuner Plus for the GeForce RTX Series graphics cards, download here.
Specifications
Model: GK-RTX 2070-E 8 GB / MINI
Boost Clock: 1620 MHz
Memory Clock: 14 Gbps
Bandwidth: 256-bit
Memory Size: 8 GB
Memory Standard: GDDR6
I/O: DisplayPort x 1, HDMI x 1, DVI-D x 1
Dimension: 175 x 111 x 38 mm (LHW)
Model: GK-RTX 2060-E 6 GB / MINI
Boost Clock: 1695 MHz
Memory Clock: 14 Gbps
Bandwidth: 192-bit
Memory Size: 6 GB
Memory Standard: GDDR6
I/O: DisplayPort x 1, HDMI x 1, DVI-D x 1
Dimension: 175 x 111 x 38 mm (LHW)
Model: GK-RTX 2070-E 8 GB / MINI
Boost Clock: 1620 MHz
Memory Clock: 14 Gbps
Bandwidth: 256-bit
Memory Size: 8 GB
Memory Standard: GDDR6
I/O: DisplayPort x 1, HDMI x 1, DVI-D x 1
Dimension: 175 x 111 x 38 mm (LHW)
Model: GK-RTX 2060-E 6 GB / MINI
Boost Clock: 1695 MHz
Memory Clock: 14 Gbps
Bandwidth: 192-bit
Memory Size: 6 GB
Memory Standard: GDDR6
I/O: DisplayPort x 1, HDMI x 1, DVI-D x 1
Dimension: 175 x 111 x 38 mm (LHW)
Learn more on the GALAX Japanese website links below:
GALAX GeForce RTX 2070 Mini
GALAX GeForce RTX 2060 Mini
