GALAX introduces the GTX 1070 OC Mini graphics card featuring a compact design ideal for ITX cases.
GALAX introduces the GTX 1070 OC Mini graphics card featuring a compact design ideal for ITX cases.

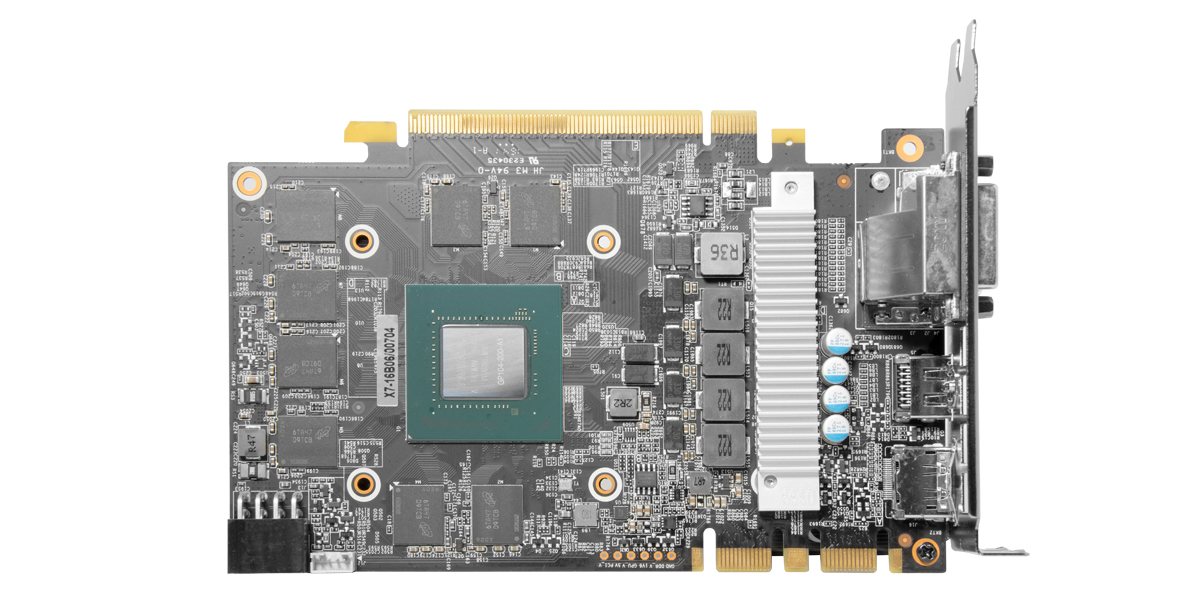

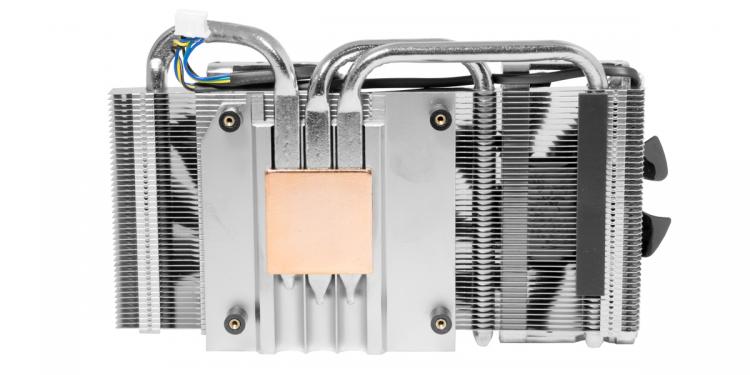

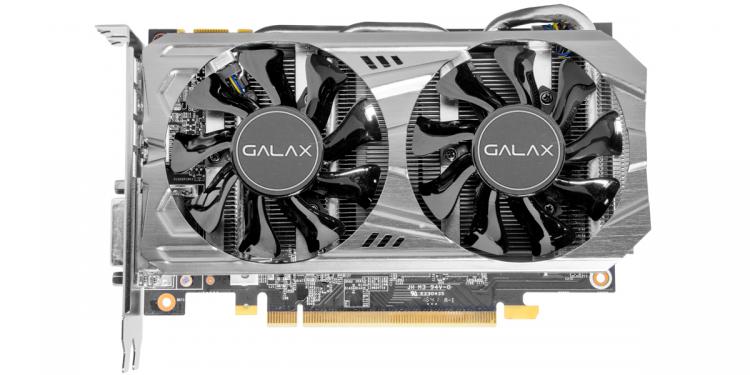

GALAX introduces the GTX 1070 OC Mini graphics card featuring a compact design ideal for ITX cases. The GALAX GTX 1070 OC Mini offers efficient thermal solution even with the compact size with the help of the dual 80mm cooling fans and 3 heat pipes which enables the card to perform to its peak. It features a 4+1 power phase design wherein 4 is responsible for the core and 1 phase for the memory. The GALAX GTX 1070 OC Mini is aimed for the gaming elite which also features an anodized aluminum backplate for aesthetics and a 1708MHz factory overclock.
Features
NVIDIA® GeForce® GTX® VR Ready
Simultaneous Multi-Projection
NVIDIA® Ansel
NVIDIA® G-SYNC™
NVIDIA® SLI® w/ HB Bridge Support
NVIDIA® GameStream™
NVIDIA® GPU Boost™ 3.0
Microsoft® DirectX® 12
Vulkan API
Open GL 4.5 Support
PCIe 3.0
Microsoft DirectX 12
OS Certification – Windows 7-10, Linux, Free85BSDx86
Max Digital Resolution – 4096×2160@60Hz

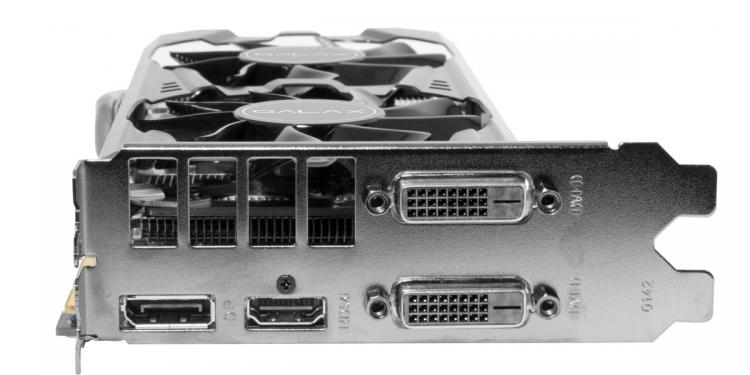

Display Connectors – DP1.4, HDMI 2.0b, DL-DVI-D
HDCP 2.2
Latest Display Interface Support DP 1.4
NVIDIA® GeForce® GTX® VR Ready
Simultaneous Multi-Projection
NVIDIA® Ansel
NVIDIA® G-SYNC™
NVIDIA® SLI® w/ HB Bridge Support
NVIDIA® GameStream™
NVIDIA® GPU Boost™ 3.0
Microsoft® DirectX® 12
Vulkan API
Open GL 4.5 Support
PCIe 3.0
Microsoft DirectX 12
OS Certification – Windows 7-10, Linux, Free85BSDx86
Max Digital Resolution – 4096×2160@60Hz
Display Connectors – DP1.4, HDMI 2.0b, DL-DVI-D
HDCP 2.2
Latest Display Interface Support DP 1.4
Specifications
GPU Engine Specs:
CUDA Cores 1920
Base Clock (MHz) 1518
Boost Clock (MHz) 1708
Memory Specs:
Memory Speed 8Gbps
Standard Memory Config 8GB
Memory Interface Width 256-bit GDDR5
Memory Bandwidth (GB/sec) 256
Feature Support:
OpenGL 4.5
Bus Support PCI-E 3.0
Certified for Windows 7-10, Linux, Free85BSDx86
Supported Technologies Microsoft® DirectX® 12
Virtual Reality Ready Yes
SLI Options
Display Support:
Multi Monitor 4 Displays
Maximum Digital Resolution 4096×2160
Maximum VGA Resolution 2560×1600
HDCP Yes
HDMI Yes
Standard Display Connectors DVI-D, HDMI, 3x DP 1.4
Audio Input for HDMI Internal
Power Specs:
Maximum Graphics Card Power (W) 150W
Minimum System Power Requirement (W) 500W
Supplementary Power Connectors 1x8pin
Model:
Product Code 70NSH6DVO5MN
UPC Code 4895147125374
Dimensions:
Dimensions(with Bracket): 195 x 130 x 41.5 mm
Dimensions(without Bracket): 181 x 116 x 38.6 mm
GPU Engine Specs:
CUDA Cores 1920
Base Clock (MHz) 1518
Boost Clock (MHz) 1708
Memory Specs:
Memory Speed 8Gbps
Standard Memory Config 8GB
Memory Interface Width 256-bit GDDR5
Memory Bandwidth (GB/sec) 256
Feature Support:
OpenGL 4.5
Bus Support PCI-E 3.0
Certified for Windows 7-10, Linux, Free85BSDx86
Supported Technologies Microsoft® DirectX® 12
Virtual Reality Ready Yes
SLI Options
Display Support:
Multi Monitor 4 Displays
Maximum Digital Resolution 4096×2160
Maximum VGA Resolution 2560×1600
HDCP Yes
HDMI Yes
Standard Display Connectors DVI-D, HDMI, 3x DP 1.4
Audio Input for HDMI Internal
Power Specs:
Maximum Graphics Card Power (W) 150W
Minimum System Power Requirement (W) 500W
Supplementary Power Connectors 1x8pin
Model:
Product Code 70NSH6DVO5MN
UPC Code 4895147125374
Dimensions:
Dimensions(with Bracket): 195 x 130 x 41.5 mm
Dimensions(without Bracket): 181 x 116 x 38.6 mm

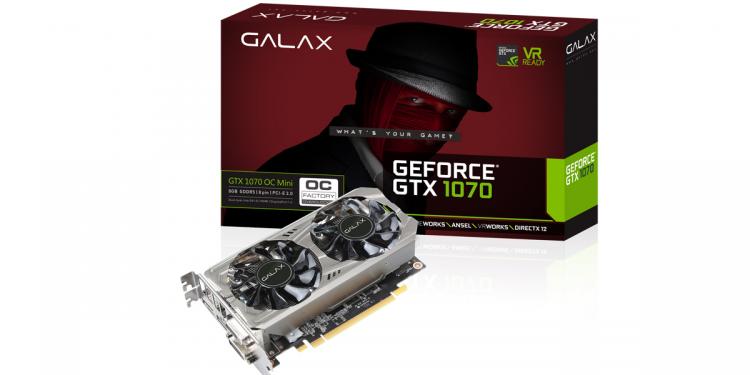

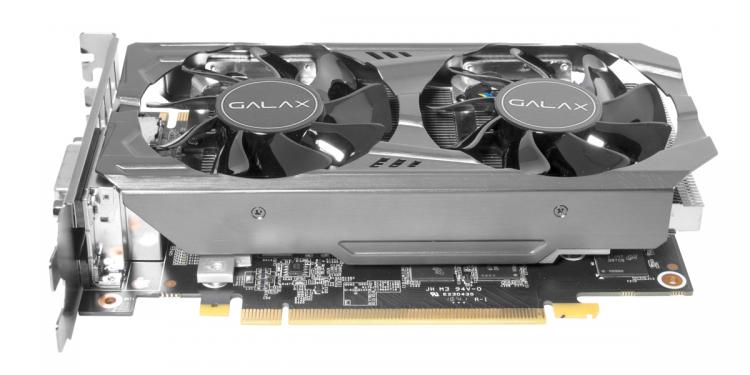

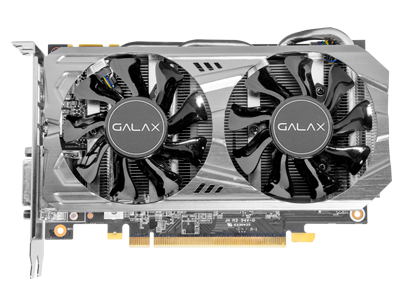

Product Gallery
Check the GALAX website for more details on the compact yet powerful GALAX GTX 1070 OC Mini graphics card.
