Lian Li Announces The PC-J60 ATX Aluminium Chassis

Available in plain black or with red trim, the PC-J60 from Lian Li eschews optical drive bays in favour of clean lines and compartmentalises the interior to hide PSU and cable bundles.

Available in plain black or with red trim, the PC-J60 from Lian Li eschews optical drive bays in favour of clean lines and compartmentalises the interior to hide PSU and cable bundles.

PRESS RELEASE

April 6th, 2016, Keelung, Taiwan – Lian-Li Industrial Co. Ltd announces the PC-J60 chassis. This aluminum mid tower chassis is perfect for PC builders who want to banish loose cables for a clean PC build without all the hassle.

Cable Organization Made Easy

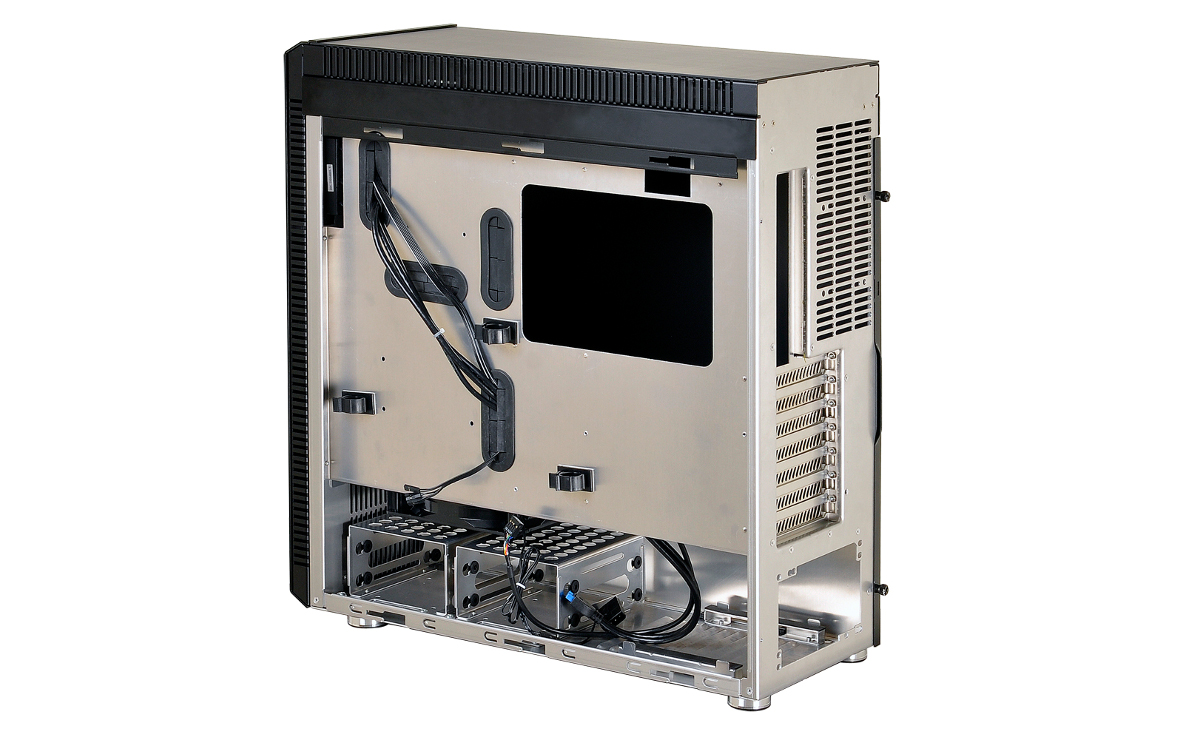

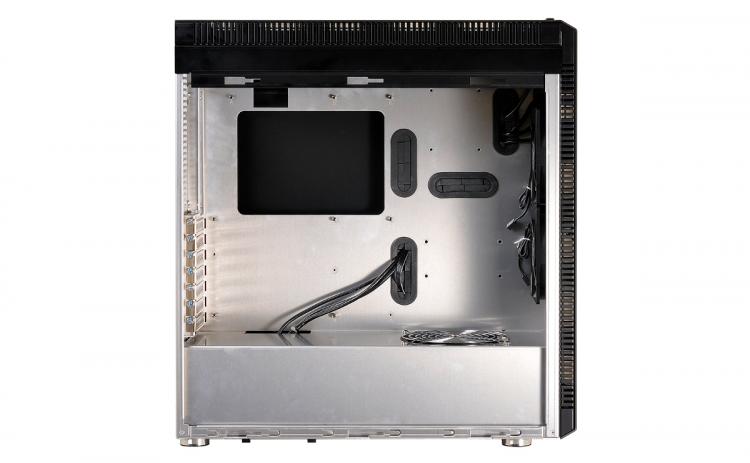

The PC-J60 makes it easy for builders to have attain the immaculate, organized appearance of popular case builds and mods. A large aluminum cover sheathes the PSU and drive racks along the bottom panel, shrouding them from view in the main compartment so VGA cards and other more glamorous parts can hog the spotlight. Several cable holes with rubber grommets are positioned around the motherboard cut out, along with built-in cable ties, to make organization a breeze.

Ample Cooler Choices – Water or Air

The PC-J60’s default configuration includes two 120mm intake fans drawing cool air directly to the expansion cards through large vents flanking the entire front panel. Another large 140mm fan sucks some of this air downward into the PSU compartment over the drive racks, and is vented via the power supply in the back. On the top panel, this case can mount an addition three 120mm fans, or water cooling radiators fitting 430mm length, 160mm width, and 60mm thickness. All of the included fans and fan mounts feature removable mesh air filters.

Great for Gamer Builds

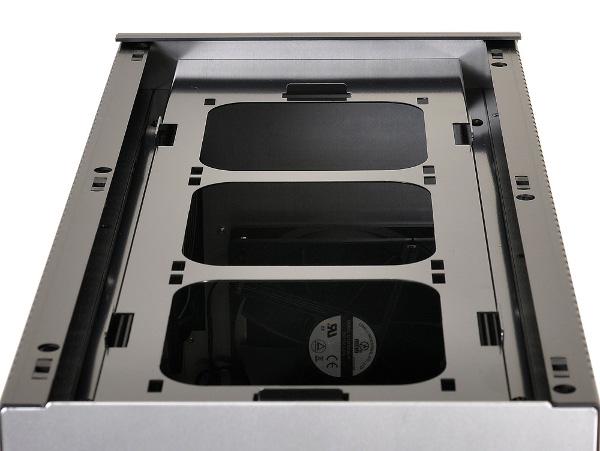

The drive racks are positioned at the bottom of the chassis, making room in the main compartment for the largest VGA cards available on seven expansion slots – up to 410mm in length. Each drive rack mounts two 3.5” or 2.5” drives on rubber vibration dampeners. An additional 3.5” and 2.5” drive can be mounted directly on the motherboard panel for a total of six possible drives. The PC-J60 can mount CPU coolers up to 160mm tall and ATX PSUs 210mm in length.

Technical Specifications

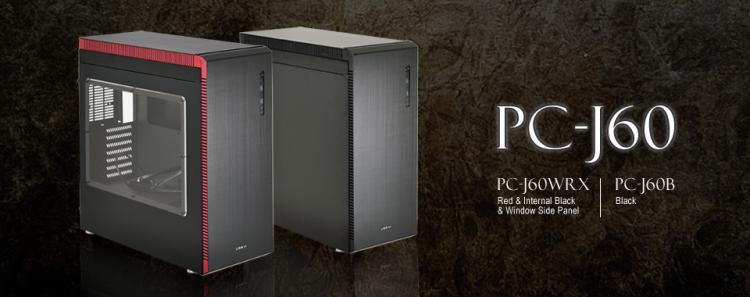

Model:- PC-J60 B / WRX
Case Type:- Mid Tower Chassis
Dimensions:- (W)210mm x (H)507mm x (D)489mm
Color:- Black(PC-J60B), Red(PC-J60WRX)

Front bezel Material:- Aluminum
Side Panel:- Aluminum, PC-J60WRX(Transparent)
Body Material:- Aluminum
Net Weight:- 6.48KG

5.25″ drive bay (External):- None
3.5″ drive bay (External):- None
HDD bay:- 3.5″ HDD x5, 2.5″ HDD x1

Expansion Slot:- 7
M/B Type:- ATX, Micro-ATX

System Fan (Front):- 120mm Fan x2
System Fan (Top):- 120mm Fan x3(Optional)
System Fan (Bottom):- 140mm Fan x1

I/O Ports:- USB3.0 x 2, HD Audio

Maximum Compatibility:
– VGA Card length: 410mm
– PSU length: 210mm
– CPU cooler height:160mm

Space of Radiator:
– Top: 60 x 430 x 160mm
– Front: 120 x 240mm

Power Type:- ATX (Optional)
